ATE Originale Bremsscheibe (24012202621) für Iveco
98,01 €
(inkl. MwSt.)
81,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0262.1
(240122-02621)
- Außendurchmesser [mm]: 276,0
- Innendurchmesser [mm]: 145,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 422262
Logistische Informationen:
- Ean-Code: 4006633327497
- Gewicht: 8.52kg
Specification of ATE 24.0122-0262.1 / 240122-02621 / 24012202621:
| OE Number | Reference info |
| IVECO 42470836 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 1999-05 - 2006-04 | 62 | 84 | 2798 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2001-11 - 2006-04 | 66 | 90 | 2798 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2002-09 - 2006-04 | 70 | 95 | 2287 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 1999-05 - 2006-04 | 78 | 105 | 2798 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2002-09 - 2006-04 | 85 | 116 | 2287 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2001-11 - 2006-04 | 92 | 125 | 2798 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2005-11 - 2006-04 | 100 | 136 | 2287 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2001-11 - 2006-04 | 66 | 90 | 2798 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2002-09 - 2006-04 | 70 | 95 | 2287 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2002-09 - 2006-04 | 85 | 116 | 2287 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2004-09 - 2006-04 | 100 | 136 | 2998 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2005-01 - 2006-04 | 100 | 136 | 2287 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2001-11 - 2006-04 | 107 | 146 | 2798 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 2005-01 - 2006-04 | 122 | 166 | 2998 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 1999-05 - 2006-04 | 62 | 84 | 2798 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 1999-05 - 2006-04 | 78 | 106 | 2798 | Platform/Chassis |
| IVECO DAILY III Platform/Chassis Fitting Position Front Axle | 1999-05 - 2006-04 | 92 | 125 | 2798 | Platform/Chassis |
| IVECO DAILY III Van Construction Year to 200604 Fitting Position Front Axle | 1999-05 - 2007-07 | 62 | 84 | 2798 | Van |
| IVECO DAILY III Van Fitting Position Front Axle | 2001-11 - 2006-04 | 66 | 90 | 2798 | Van |
| IVECO DAILY III Van Construction Year to 200604 Fitting Position Front Axle | 2002-09 - 2007-07 | 70 | 95 | 2287 | Van |
| IVECO DAILY III Van Construction Year to 200604 Fitting Position Front Axle | 1999-05 - 2007-07 | 78 | 106 | 2798 | Van |
| IVECO DAILY III Van Construction Year to 200604 Fitting Position Front Axle | 2002-09 - 2007-07 | 85 | 116 | 2287 | Van |
| IVECO DAILY III Van Construction Year to 200604 Fitting Position Front Axle | 2001-05 - 2007-07 | 92 | 125 | 2798 | Van |
| IVECO DAILY III Van Fitting Position Front Axle | 2005-01 - 2006-04 | 100 | 136 | 2287 | Van |
| IVECO DAILY III Van Construction Year to 200604 Fitting Position Front Axle | 2002-09 - 2007-07 | 85 | 116 | 2287 | Van |
| IVECO DAILY III Van Fitting Position Front Axle | 2004-09 - 2006-04 | 100 | 136 | 2998 | Van |
| IVECO DAILY III Van Fitting Position Front Axle | 2005-01 - 2006-04 | 100 | 136 | 2287 | Van |
| IVECO DAILY III Van Fitting Position Front Axle | 2005-01 - 2006-04 | 122 | 166 | 2998 | Van |
| IVECO DAILY III Van Fitting Position Front Axle | 2001-11 - 2006-04 | 66 | 90 | 2798 | Van |
| IVECO DAILY III Van Construction Year to 200604 Fitting Position Front Axle | 1999-05 - 2007-07 | 62 | 84 | 2798 | Van |
| IVECO DAILY III Van Construction Year to 200604 Fitting Position Front Axle | 2002-09 - 2007-07 | 70 | 95 | 2287 | Van |
| IVECO DAILY III Van Construction Year to 200604 Fitting Position Front Axle | 1999-05 - 2007-07 | 78 | 106 | 2798 | Van |
| IVECO DAILY III Van Construction Year to 200604 Fitting Position Front Axle | 1999-05 - 2007-07 | 92 | 125 | 2798 | Van |
| IVECO DAILY III Van Construction Year to 200604 Fitting Position Front Axle | 2002-11 - 2007-07 | 107 | 146 | 2798 | Van |

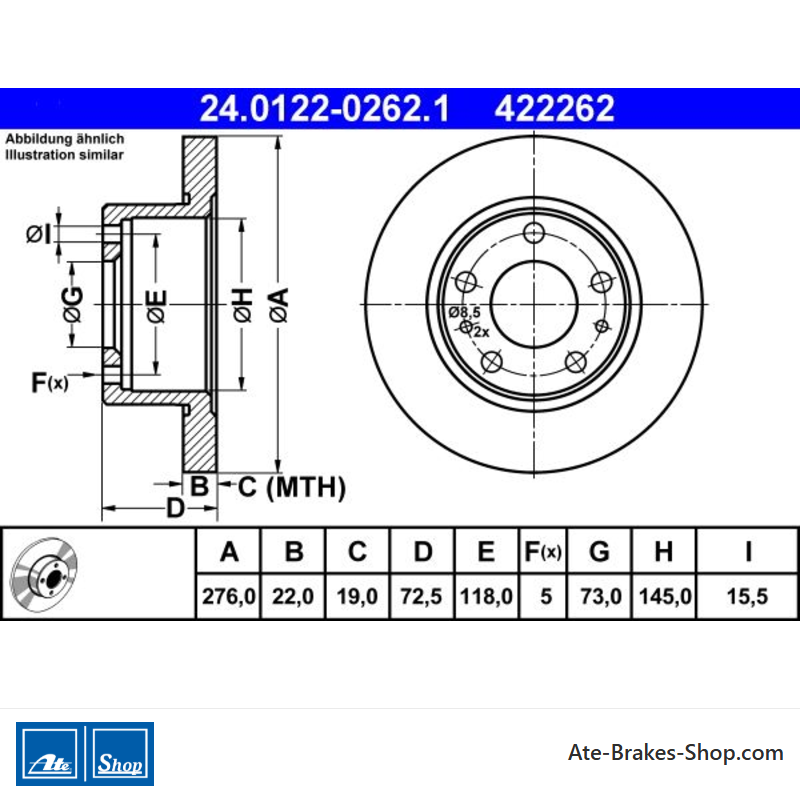

24.0122-0262.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Iveco
- Handelsnummer
- 422262
- Herkunftsland
- Tschechien
- Höhe
- 72,5
- Außendurchmesser [mm]
- 276,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Solide
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 118,0
- Zentrierungsdurchmesser [mm]
- 73,0
- Innendurchmesser [mm]
- 145,0
- Bohrdurchmesser [mm]
- 15,5
- Mindestdicke [mm]
- 19,0
Spezifische Referenzen
- ean13
- 4006633327497
- Hersteller-Teilenummer (MPN)
- 2401220262102
ATE 24.0122-0262.1
(240122-02621)
- Außendurchmesser [mm]: 276,0
- Innendurchmesser [mm]: 145,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 422262
