ATE Originale 2-teilige Bremsscheibe (24012203071) für Alfa Romeo
156,09 €
(inkl. MwSt.)
129,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0307.1
(240122-03071)
- Außendurchmesser [mm]: 292,0
- Innendurchmesser [mm]: 139,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 422307
Logistische Informationen:
- Ean-Code: 4006633471732
- Gewicht: 12.99kg
Specification of ATE 24.0122-0307.1 / 240122-03071 / 24012203071:
| OE Number | Reference info |
| FIAT 50545300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 50554320 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO GIULIA (952_) Fitting Position Rear Axle | 2016-08 - 2022-10 | 147 | 200 | 1995 | Saloon |
| ALFA ROMEO GIULIA (952_) Fitting Position Rear Axle | 2016-08 - | 206 | 280 | 1995 | Saloon |
| ALFA ROMEO GIULIA (952_) Fitting Position Rear Axle | 2016-08 - | 206 | 280 | 1995 | Saloon |
| ALFA ROMEO GIULIA (952_) Construction Year from 201605 Fitting Position Rear Axle | 2015-10 - | 100 | 136 | 2143 | Saloon |
| ALFA ROMEO GIULIA (952_) Construction Year from 201605 Fitting Position Rear Axle | 2015-10 - | 110 | 150 | 2143 | Saloon |
| ALFA ROMEO GIULIA (952_) Fitting Position Rear Axle | 2018-08 - | 118 | 160 | 2143 | Saloon |
| ALFA ROMEO GIULIA (952_) Construction Year from 201605 Fitting Position Rear Axle | 2015-10 - | 132 | 180 | 2143 | Saloon |
| ALFA ROMEO GIULIA (952_) Fitting Position Rear Axle | 2017-04 - | 132 | 180 | 2143 | Saloon |
| ALFA ROMEO GIULIA (952_) Fitting Position Rear Axle | 2018-08 - 2022-10 | 140 | 190 | 2143 | Saloon |
| ALFA ROMEO GIULIA (952_) Fitting Position Rear Axle | 2018-08 - 2022-10 | 140 | 190 | 2143 | Saloon |
| ALFA ROMEO STELVIO (949_) Fitting Position Rear Axle | 2019-12 - | 184 | 250 | 1995 | SUV |
| ALFA ROMEO STELVIO (949_) Fitting Position Rear Axle | 2016-12 - | 206 | 280 | 1995 | SUV |
| ALFA ROMEO STELVIO (949_) Fitting Position Rear Axle | 2016-12 - | 110 | 150 | 2143 | SUV |
| ALFA ROMEO STELVIO (949_) Fitting Position Rear Axle | 2018-08 - | 118 | 160 | 2143 | SUV |
| ALFA ROMEO STELVIO (949_) Fitting Position Rear Axle | 2016-12 - | 132 | 180 | 2143 | SUV |
| ALFA ROMEO STELVIO (949_) Fitting Position Rear Axle | 2016-12 - | 132 | 180 | 2143 | SUV |
| ALFA ROMEO STELVIO (949_) Fitting Position Rear Axle | 2018-08 - | 140 | 190 | 2143 | SUV |
| ALFA ROMEO STELVIO (949_) Fitting Position Rear Axle | 2018-08 - | 140 | 190 | 2143 | SUV |
| ALFA ROMEO STELVIO (949_) Fitting Position Rear Axle | 2016-12 - | 154 | 209 | 2143 | SUV |
24.0122-0307.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Alfa Romeo
- Handelsnummer
- 422307
- Herkunftsland
- Tschechien
- Zusätzliche Informationen
- mit Schrauben/Schrauben

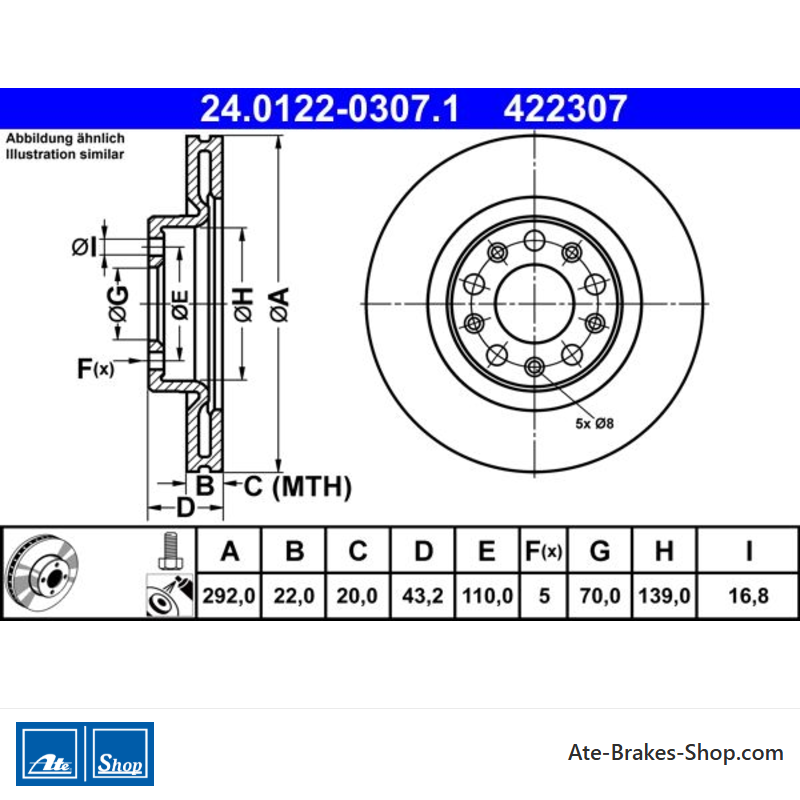

- Höhe
- 43,2
- Außendurchmesser [mm]
- 292,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 110,0
- Zentrierungsdurchmesser [mm]
- 70,0
- Innendurchmesser [mm]
- 139,0
- Bohrdurchmesser [mm]
- 16,8
- Mindestdicke [mm]
- 20,0
Spezifische Referenzen
- ean13
- 4006633471732
- Hersteller-Teilenummer (MPN)
- 2401220307102
ATE 24.0122-0307.1
(240122-03071)
- Außendurchmesser [mm]: 292,0
- Innendurchmesser [mm]: 139,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 422307
