ATE Original-2-teilige Bremsscheibe (24012203091) für MAN, Volkswagen (VW)
130,68 €
(inkl. MwSt.)
108,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0309.1
(240122-03091)
- Außendurchmesser [mm]: 300,0
- Innendurchmesser [mm]: 170,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 422309
Logistische Informationen:
- Ean-Code: 4006633473002
- Gewicht: 15.00kg
Specification of ATE 24.0122-0309.1 / 240122-03091 / 24012203091:
| OE Number | Reference info |
| MAN 65508030001 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 2N0 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 2N0615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAN TGE Van Fitting Position Rear Axle | 2018-07 - | 100 | 136 | CC | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LA | 2017-02 - 2024-06 | 75 | 102 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LA Tyres for dual tyres | 2017-08 - 2021-12 | 90 | 122 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LA | 2017-02 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LA Tyres for dual tyres | 2017-10 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LA | 2017-04 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LA | 2022-11 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LA Tyres for dual tyres | 2023-03 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LA | 2022-11 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LA | 2017-02 - | 130 | 177 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LA Tyres for dual tyres | 2017-05 - 2024-06 | 130 | 177 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LA | 2017-03 - | 130 | 177 | 1968 | Van |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LA | 2016-11 - 2024-06 | 75 | 102 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LA Tyres for dual tyres | 2017-08 - 2021-12 | 90 | 122 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LA | 2016-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LA Tyres for dual tyres | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LA | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LA | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LA Tyres for dual tyres | 2023-03 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LA | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LA | 2016-11 - | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LA Tyres for dual tyres | 2017-07 - 2024-06 | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LA | 2017-11 - | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LA | 2017-02 - 2024-06 | 75 | 102 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LA Tyres for dual tyres | 2019-01 - 2021-12 | 90 | 122 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LA | 2017-02 - | 103 | 140 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LA | 2017-02 - | 103 | 140 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LA | 2017-02 - | 130 | 177 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LA Tyres for dual tyres | 2017-02 - 2024-06 | 130 | 177 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LA | 2017-02 - | 130 | 177 | 1968 | Bus |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2010-12 - 2016-10 | 118 | 160 | 1984 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2010-09 - 2013-10 | 90 | 122 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2010-09 - 2013-10 | 90 | 122 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2012-07 - | 103 | 140 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2012-06 - 2022-05 | 103 | 140 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2010-09 - 2012-08 | 120 | 163 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2010-09 - 2012-08 | 120 | 163 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2011-11 - | 132 | 180 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2011-11 - | 132 | 180 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2016-06 - 2020-06 | 120 | 163 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) Construction Year from 201609 for PR number 2E4 Fitting Position Rear Axle | 2016-06 - 2020-06 | 120 | 163 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2016-06 - 2020-08 | 150 | 204 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) Construction Year from 201609 for PR number 2E4 Fitting Position Rear Axle | 2016-06 - 2022-05 | 165 | 224 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Rear Axle | 2018-05 - | 190 | 258 | 2967 | Pickup |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201207 for PR number 2E4 Fitting Position Rear Axle | 2011-09 - 2013-10 | 90 | 122 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201207 for PR number 2E4 Fitting Position Rear Axle | 2011-09 - 2016-10 | 103 | 140 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201206 for PR number 2E4 Fitting Position Rear Axle | 2011-09 - 2016-10 | 103 | 140 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) for PR number 2E4 Fitting Position Rear Axle | 2012-05 - 2016-10 | 132 | 180 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201111 for PR number 2E4 Fitting Position Rear Axle | 2011-09 - 2022-05 | 132 | 180 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) for PR number 2E4 Fitting Position Rear Axle | 2016-06 - 2020-08 | 150 | 204 | 2967 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) for PR number 2E4 Fitting Position Rear Axle | 2018-05 - 2022-05 | 190 | 258 | 2967 | Platform/Chassis |
| VW CRAFTER Van (SY_, SX_) Fitting Position Rear Axle | 2018-07 - | 100 | 136 | CC | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2016-09 - 2024-06 | 75 | 102 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2017-05 - 2024-06 | 80 | 109 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2017-08 - 2021-12 | 90 | 122 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2016-09 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2017-10 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2017-04 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2023-03 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2016-09 - | 130 | 177 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2017-05 - 2024-06 | 130 | 177 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Rear Axle | 2017-03 - | 130 | 177 | 1968 | Van |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2016-11 - 2024-06 | 75 | 102 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2017-08 - 2021-12 | 90 | 122 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2016-11 - 2024-06 | 80 | 109 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2016-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2023-03 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2016-11 - | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2017-07 - 2024-06 | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Rear Axle | 2017-11 - | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LA Fitting Position Rear Axle | 2016-10 - 2024-06 | 75 | 102 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LA Fitting Position Rear Axle | 2016-09 - | 103 | 140 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LA Fitting Position Rear Axle | 2017-04 - | 103 | 140 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LA Fitting Position Rear Axle | 2016-09 - | 130 | 177 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LA Fitting Position Rear Axle | 2017-03 - | 130 | 177 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Rear Axle | 2019-04 - | 103 | 140 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Rear Axle | 2019-04 - | 103 | 140 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Rear Axle | 2024-10 - | 120 | 163 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Rear Axle | 2024-10 - | 120 | 163 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Rear Axle | 2019-04 - | 130 | 177 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Rear Axle | 2019-04 - | 130 | 177 | 1968 | Bus |

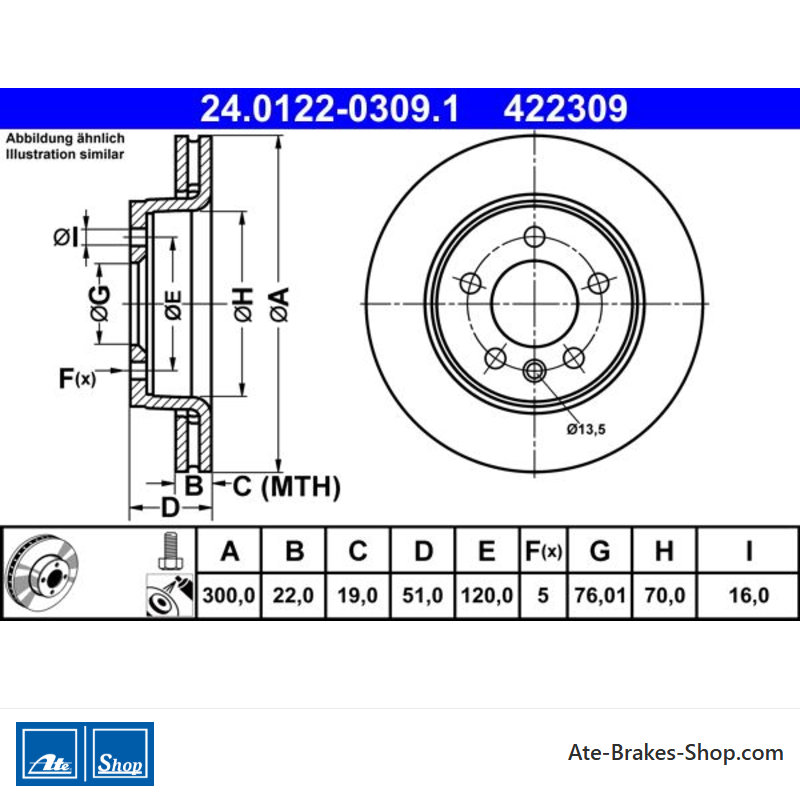

24.0122-0309.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- MANN
Volkswagen (VW) - Handelsnummer
- 422309
- Herkunftsland
- Deutschland
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 51,0
- Außendurchmesser [mm]
- 300,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Legierte/Hochkohlenstoff-Legierungen
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 120,0
- Zentrierungsdurchmesser [mm]
- 76,0
- Innendurchmesser [mm]
- 170,0
- Bohrdurchmesser [mm]
- 16,0
- Mindestdicke [mm]
- 19,0
Spezifische Referenzen
- ean13
- 4006633473002
- Hersteller-Teilenummer (MPN)
- 2401220309102
ATE 24.0122-0309.1
(240122-03091)
- Außendurchmesser [mm]: 300,0
- Innendurchmesser [mm]: 170,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 422309
