ATE Originale zweiteilige Bremsscheibe (24012401321) für Ford
90,75 €
(inkl. MwSt.)
75,00 € Steuerexzl.
Teilenummer:
ATE 24.0124-0132.1
(240124-01321)
- Außendurchmesser [mm]: 270,0
- Innendurchmesser [mm]: 104,0
- Bremsscheibendicke [mm]: 24,2
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 424132
Logistische Informationen:
- Ean-Code: 4006633066341
- Gewicht: 13.32kg
Specification of ATE 24.0124-0132.1 / 240124-01321 / 24012401321:
| OE Number | Reference info |
| FORD 5029816 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 5025611 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-09 - 1994-09 | 66 | 90 | 1993 | Bus |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-09 - 1994-07 | 72 | 98 | 1994 | Bus |
| FORD TRANSIT Bus (E_ _) Construction Year to 199408 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-01 - 1994-09 | 107 | 145 | 2935 | Bus |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-08 - 1994-07 | 51 | 70 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-09 - 1994-07 | 59 | 80 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1992-10 - 1994-07 | 63 | 85 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-09 - 1994-07 | 74 | 100 | 2496 | Bus |
| FORD TRANSIT Platform/Chassis (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-09 - 1994-08 | 72 | 98 | 1994 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-09 - 1994-08 | 51 | 69 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-09 - 1994-08 | 59 | 80 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1992-11 - 1994-08 | 63 | 85 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-09 - 1994-08 | 74 | 100 | 2496 | Platform/Chassis |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-09 - 1994-06 | 66 | 90 | 1993 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-09 - 1994-06 | 72 | 98 | 1994 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-05 - 1994-06 | 51 | 70 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-05 - 1994-06 | 59 | 80 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1992-10 - 1994-06 | 63 | 85 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-05 - 1994-06 | 74 | 101 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-06 - 2000-03 | 84 | 114 | 1998 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-06 - 2000-03 | 51 | 69 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-06 - 2000-03 | 55 | 75 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-06 - 2000-03 | 56 | 76 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-06 - 2000-03 | 63 | 85 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-06 - 2000-03 | 74 | 101 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1999-05 - 2000-03 | 85 | 116 | 2496 | Van |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-08 - 2000-03 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT Bus (E_ _) Construction Year from 199407 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-06 - 2000-03 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-06 - 2000-03 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-08 - 2000-03 | 51 | 69 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Construction Year to 200003 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-08 - 2000-06 | 55 | 75 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-07 - 2000-03 | 56 | 76 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1995-01 - 2000-03 | 63 | 85 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-07 - 2000-03 | 74 | 100 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1997-08 - 2000-03 | 85 | 116 | 2496 | Bus |
| FORD TRANSIT Platform/Chassis (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-08 - 2000-03 | 84 | 114 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-08 - 2000-03 | 51 | 69 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-08 - 2000-03 | 56 | 76 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-08 - 2000-03 | 63 | 85 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-08 - 2000-03 | 74 | 101 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1999-05 - 2000-03 | 85 | 116 | 2496 | Platform/Chassis |
| FORD TRANSIT TOURNEO Bus Construction Year from 199509 Construction Year to 200003 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-11 - 2000-12 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-08 - 2000-06 | 55 | 74 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-11 - 2000-12 | 51 | 69 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-11 - 2000-12 | 56 | 76 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year from 199501 Construction Year to 200003 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1994-11 - 2000-12 | 63 | 85 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1998-04 - 2000-12 | 74 | 100 | 2496 | Bus |
24.0124-0132.1

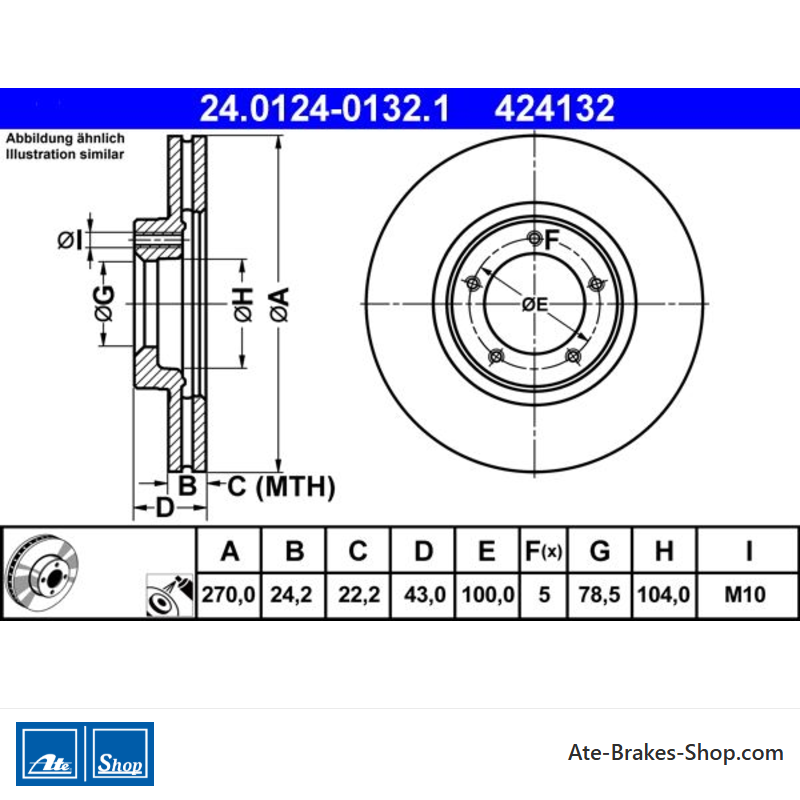

Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Ford
- Handelsnummer
- 424132
- Herkunftsland
- China
- Höhe
- 43,0
- Außendurchmesser [mm]
- 270,0
- Bremsscheibendicke [mm]
- 24,2
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 78,5
- Innendurchmesser [mm]
- 104,0
- Gewindegröße
- M10
- Mindestdicke [mm]
- 22,2
Spezifische Referenzen
- ean13
- 4006633066341
- Hersteller-Teilenummer (MPN)
- 2401240132102
ATE 24.0124-0132.1
(240124-01321)
- Außendurchmesser [mm]: 270,0
- Innendurchmesser [mm]: 104,0
- Bremsscheibendicke [mm]: 24,2
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 424132
