ATE Originale zweiteilige Bremsscheibe (24012401691) für Renault
145,20 €
(inkl. MwSt.)
120,00 € Steuerexzl.
Teilenummer:
ATE 24.0124-0169.1
(240124-01691)

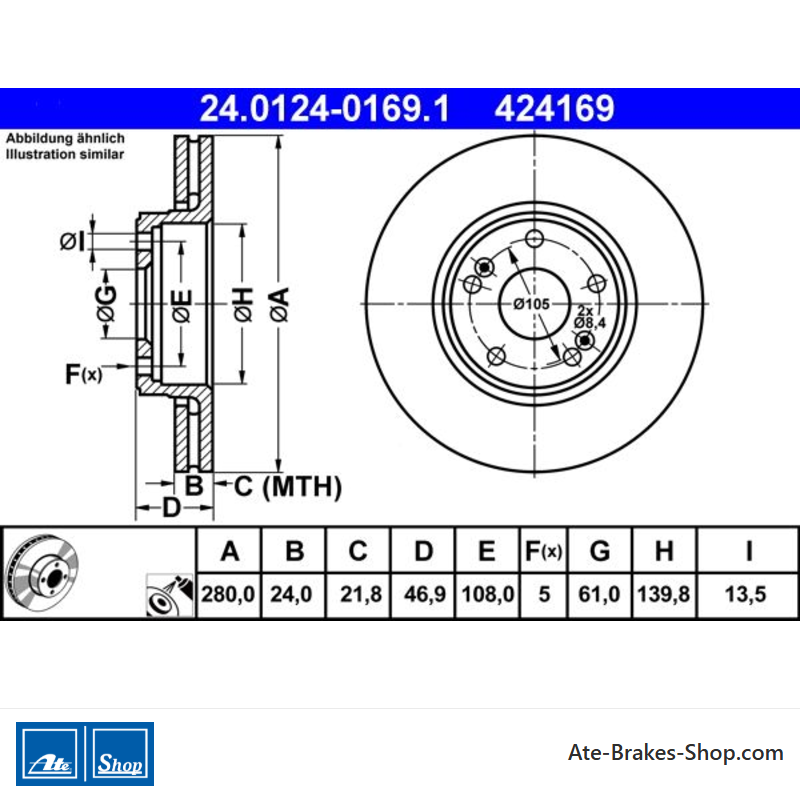

- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 139,8
- Bremsscheibendicke [mm]: 24,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 424169
Logistische Informationen:
- Ean-Code: 4006633105880
- Gewicht: 14.75kg
Specification of ATE 24.0124-0169.1 / 240124-01691 / 24012401691:
| OE Number | Reference info |
| RENAULT 77 01 206 613 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7701206613 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 007 121 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200007121 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 86 71 017 410 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8671017410 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Front Axle | 2001-03 - 2005-05 | 76 | 103 | 1598 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Front Axle | 2001-03 - 2005-05 | 79 | 107 | 1598 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Front Axle | 2001-03 - 2005-05 | 79 | 107 | 1598 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2005-02 - 2007-08 | 82 | 112 | 1598 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2001-03 - 2007-12 | 85 | 116 | 1783 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Front Axle | 2001-03 - 2005-05 | 86 | 117 | 1783 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2001-03 - 2007-09 | 88 | 120 | 1783 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Front Axle | 2001-03 - 2005-05 | 89 | 121 | 1783 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Front Axle | 2002-08 - 2006-12 | 98 | 133 | 1998 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2002-08 - 2007-12 | 99 | 135 | 1998 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2001-04 - 2007-09 | 103 | 140 | 1998 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Front Axle | 2004-03 - 2005-05 | 68 | 92 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Front Axle | 2001-10 - 2005-05 | 74 | 100 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Front Axle | 2001-06 - 2005-05 | 77 | 105 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2001-03 - 2007-09 | 79 | 107 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2005-01 - 2007-08 | 81 | 110 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2005-09 - 2007-12 | 85 | 116 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2001-03 - 2007-09 | 88 | 120 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2005-09 - 2007-12 | 92 | 125 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2005-05 - 2007-08 | 96 | 130 | 1870 | Hatchback |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Front Axle | 2001-03 - 2005-10 | 76 | 103 | 1598 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2001-03 - 2007-12 | 79 | 107 | 1598 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2005-06 - 2007-12 | 79 | 107 | 1598 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2005-02 - 2007-08 | 82 | 112 | 1598 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Front Axle | 2001-03 - 2005-05 | 85 | 116 | 1783 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Front Axle | 2001-03 - 2005-05 | 86 | 117 | 1783 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Front Axle | 2001-03 - 2005-05 | 88 | 120 | 1783 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Front Axle | 2001-03 - 2005-05 | 89 | 121 | 1783 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2004-10 - 2007-09 | 98 | 133 | 1998 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2002-08 - 2007-12 | 99 | 135 | 1998 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2001-04 - 2007-09 | 103 | 140 | 1998 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year from 200403 Construction Year to 200706 Fitting Position Front Axle | 2003-08 - 2007-09 | 66 | 90 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Front Axle | 2004-03 - 2005-05 | 68 | 92 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Front Axle | 2001-10 - 2005-05 | 74 | 100 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Front Axle | 2001-06 - 2005-05 | 77 | 105 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2001-03 - 2007-12 | 79 | 107 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2005-01 - 2007-12 | 81 | 110 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2005-08 - 2007-09 | 85 | 116 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2001-03 - 2007-09 | 88 | 120 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2005-09 - 2007-12 | 92 | 125 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Front Axle | 2005-05 - 2007-12 | 96 | 130 | 1870 | Estate |
24.0124-0169.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Renault
- Handelsnummer
- 424169
- Herkunftsland
- Italien
- Höhe
- 46,9
- Außendurchmesser [mm]
- 280,0
- Bremsscheibendicke [mm]
- 24,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Kohlenstoffhoch
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 61,0
- Innendurchmesser [mm]
- 139,8
- Bohrdurchmesser [mm]
- 13,5
- Mindestdicke [mm]
- 21,8
Spezifische Referenzen
- ean13
- 4006633105880
- Hersteller-Teilenummer (MPN)
- 2401240169102
