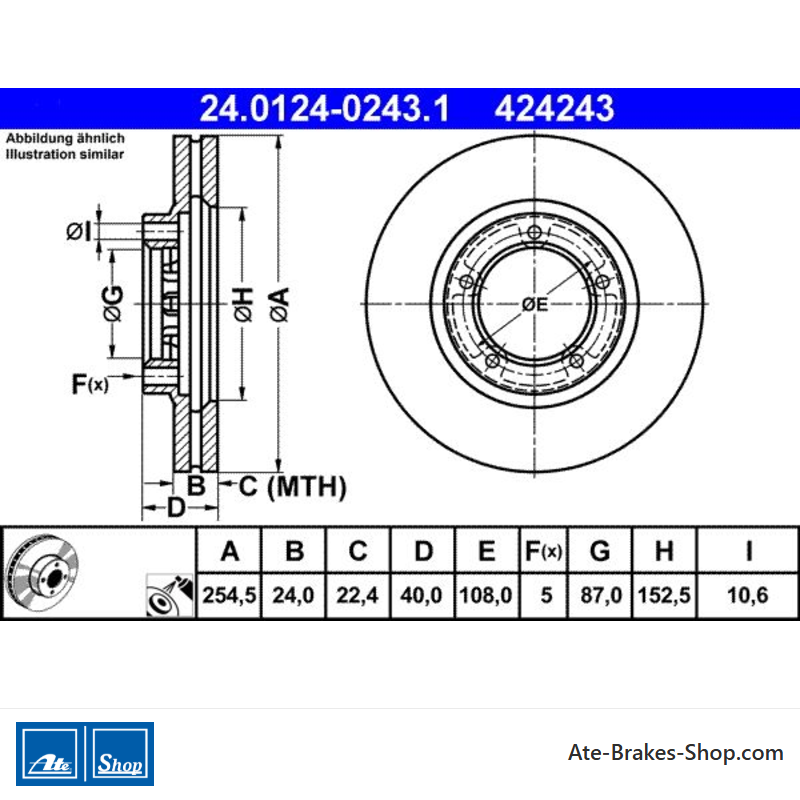

ATE Original-2-teilige Bremsscheibe (24012402431) für Hyundai
105,27 €
(inkl. MwSt.)
87,00 € Steuerexzl.
Teilenummer:
ATE 24.0124-0243.1
(240124-02431)
- Außendurchmesser [mm]: 254,5
- Innendurchmesser [mm]: 152,5
- Bremsscheibendicke [mm]: 24,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 424243
Logistische Informationen:
- Ean-Code: 4006633372442
- Gewicht: 10.66kg
Specification of ATE 24.0124-0243.1 / 240124-02431 / 24012402431:
| OE Number | Reference info |
| HYUNDAI 58129-4A100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI H-1 / STAREX Bus (A1) Construction Year to 200210 Fitting Position Front Axle | 2001-06 - 2004-04 | 99 | 135 | 2351 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2003-02 - 2004-04 | 101 | 137 | 2351 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 1997-10 - 2007-12 | 73 | 99 | 2476 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2001-03 - 2004-04 | 73 | 99 | 2476 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2004-05 - 2007-12 | 74 | 101 | 2476 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2001-11 - 2004-04 | 74 | 101 | 2476 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2006-06 - 2007-12 | 81 | 110 | 2497 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2002-12 - 2007-09 | 103 | 140 | 2497 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2002-12 - 2004-04 | 103 | 140 | 2497 | Bus |
| HYUNDAI H-1 Van (A1) Construction Year from 200211 Fitting Position Front Axle | 2000-03 - 2004-04 | 82 | 112 | 2351 | Van |
| HYUNDAI H-1 Van (A1) Construction Year from 200211 Fitting Position Front Axle | 2000-03 - 2006-10 | 73 | 99 | 2476 | Van |
| HYUNDAI H-1 Van (A1) Construction Year from 200211 Construction Year to 200404 Fitting Position Front Axle | 2001-10 - 2007-08 | 74 | 101 | 2476 | Van |
| HYUNDAI H-1 Van (A1) Fitting Position Front Axle | 2001-07 - 2004-04 | 81 | 110 | 2497 | Van |
| HYUNDAI H-1 Platform/Chassis Construction Year from 200211 Fitting Position Front Axle | 2000-06 - 2006-10 | 73 | 99 | 2476 | Platform/Chassis |
24.0124-0243.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Hyundai
- Handelsnummer
- 424243
- Herkunftsland
- Italien
- Höhe
- 40,0
- Außendurchmesser [mm]
- 254,5
- Bremsscheibendicke [mm]
- 24,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Legierte/Hochkohlenstoff-Legierungen
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 87,0
- Innendurchmesser [mm]
- 152,5
- Bohrdurchmesser [mm]
- 10,6
- Mindestdicke [mm]
- 22,4
Spezifische Referenzen
- ean13
- 4006633372442
- Hersteller-Teilenummer (MPN)
- 2401240243102
