ATE Originale zweiteilige Bremsscheibe (24012501471) für Mazda
108,90 €
(inkl. MwSt.)
90,00 € Steuerexzl.
Teilenummer:
ATE 24.0125-0147.1
(240125-01471)
- Außendurchmesser [mm]: 282,5
- Innendurchmesser [mm]: 142,0
- Bremsscheibendicke [mm]: 25,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 425147
Logistische Informationen:
- Ean-Code: 4006633209472
- Gewicht: 15.75kg
Specification of ATE 24.0125-0147.1 / 240125-01471 / 24012501471:
| OE Number | Reference info |
| MAZDA GJ6Y-33-25XA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA G26Y-33-25XA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 6 Station Wagon (GY) Construction Year to 200707 Fitting Position Front Axle | 2002-08 - 2007-08 | 88 | 120 | 1798 | Estate |
| MAZDA 6 Station Wagon (GY) Construction Year to 200707 Fitting Position Front Axle | 2002-08 - 2007-08 | 104 | 141 | 1999 | Estate |
| MAZDA 6 Station Wagon (GY) Construction Year to 200707 Fitting Position Front Axle | 2005-03 - 2007-08 | 108 | 147 | 1999 | Estate |
| MAZDA 6 Station Wagon (GY) Construction Year to 200707 Fitting Position Front Axle | 2002-11 - 2007-08 | 119 | 162 | 2261 | Estate |
| MAZDA 6 Station Wagon (GY) Construction Year from 200208 Construction Year to 200707 Fitting Position Front Axle | 2002-01 - 2008-02 | 122 | 166 | 2261 | Estate |
| MAZDA 6 Station Wagon (GY) Construction Year to 200707 Fitting Position Front Axle | 2002-08 - 2007-08 | 89 | 121 | 1998 | Estate |
| MAZDA 6 Station Wagon (GY) Fitting Position Front Axle | 2002-08 - 2005-02 | 100 | 136 | 1998 | Estate |
| MAZDA 6 Station Wagon (GY) Construction Year to 200707 Fitting Position Front Axle | 2005-06 - 2007-08 | 105 | 143 | 1998 | Estate |
| MAZDA 6 Saloon (GG) Construction Year to 200707 Fitting Position Front Axle | 2002-06 - 2007-08 | 104 | 141 | 1999 | Saloon |
| MAZDA 6 Saloon (GG) Construction Year to 200707 Fitting Position Front Axle | 2005-03 - 2007-08 | 108 | 147 | 1999 | Saloon |
| MAZDA 6 Saloon (GG) Fitting Position Front Axle | 2005-03 - 2007-07 | 120 | 163 | 2261 | Saloon |
| MAZDA 6 Saloon (GG) Construction Year to 200707 Fitting Position Front Axle | 2002-06 - 2007-08 | 122 | 166 | 2261 | Saloon |
| MAZDA 6 Saloon (GG) Construction Year to 200707 Fitting Position Front Axle | 2002-08 - 2007-08 | 89 | 121 | 1998 | Saloon |
| MAZDA 6 Saloon (GG) Construction Year to 200707 Fitting Position Front Axle | 2002-06 - 2007-08 | 100 | 136 | 1998 | Saloon |
| MAZDA 6 Saloon (GG) Construction Year to 200707 Fitting Position Front Axle | 2005-06 - 2007-08 | 105 | 143 | 1998 | Saloon |
| MAZDA 6 Hatchback (GG) Construction Year to 200707 Fitting Position Front Axle | 2002-08 - 2007-08 | 104 | 141 | 1999 | Hatchback |
| MAZDA 6 Hatchback (GG) Construction Year to 200707 Fitting Position Front Axle | 2005-03 - 2007-08 | 108 | 147 | 1999 | Hatchback |
| MAZDA 6 Hatchback (GG) Construction Year to 200707 Fitting Position Front Axle | 2002-08 - 2007-08 | 122 | 166 | 2261 | Hatchback |
| MAZDA 6 Hatchback (GG) Construction Year to 200707 Fitting Position Front Axle | 2002-08 - 2007-08 | 89 | 121 | 1998 | Hatchback |
| MAZDA 6 Hatchback (GG) Construction Year to 200707 Fitting Position Front Axle | 2002-08 - 2007-08 | 100 | 136 | 1998 | Hatchback |
| MAZDA 6 Hatchback (GG) Construction Year to 200707 Fitting Position Front Axle | 2005-06 - 2007-08 | 105 | 143 | 1998 | Hatchback |
24.0125-0147.1

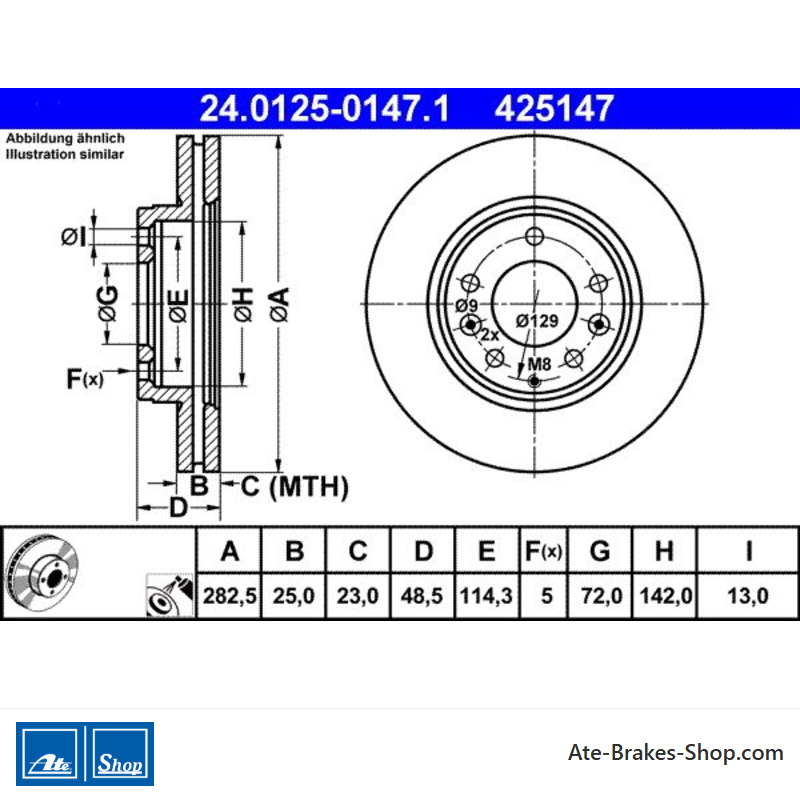

Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Mazda
- Handelsnummer
- 425147
- Herkunftsland
- Italien
- Höhe
- 48,5
- Außendurchmesser [mm]
- 282,5
- Bremsscheibendicke [mm]
- 25,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 72,0
- Innendurchmesser [mm]
- 142,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 23,0
Spezifische Referenzen
- ean13
- 4006633209472
- Hersteller-Teilenummer (MPN)
- 2401250147102
ATE 24.0125-0147.1
(240125-01471)
- Außendurchmesser [mm]: 282,5
- Innendurchmesser [mm]: 142,0
- Bremsscheibendicke [mm]: 25,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 425147
