ATE Originale Bremsscheibe (24012601401) für Citroën, Jeep, Opel, Peugeot
156,09 €
(inkl. MwSt.)
129,00 € Steuerexzl.
Teilenummer:
ATE 24.0126-0140.1
(240126-01401)
- Außendurchmesser [mm]: 302,0
- Innendurchmesser [mm]: 133,0
- Bremsscheibendicke [mm]: 26,0
- Anzahl der Bolzenlöcher: 4
- Handelsnummer: 426140
Logistische Informationen:
- Ean-Code: 4006633293358
- Gewicht: 8.82kg
Specification of ATE 24.0126-0140.1 / 240126-01401 / 24012601401:
| OE Number | Reference info |
| CITROËN 4249 33 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424933 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246 C0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246C0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 85 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424985 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 96 876 021 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 9687602180 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 16 063 082 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 1606308280 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 16 188 595 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 1618859580 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 98 092 662 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 9809266280 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9809266280 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 98 092 662 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 9809266280 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 P5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246P5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 85 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424985 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 96 876 021 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 9687602180 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 98 092 662 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 9809266280 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 16 063 082 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 1606308280 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 16 188 595 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 1618859580 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 98 092 662 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 9809266280 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| JEEP 98 092 662 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| JEEP 9809266280 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DS 98 092 662 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DS 9809266280 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN C4 GRAND PICASSO I (UA_) Fitting Position Front Axle | 2008-07 - 2010-12 | 103 | 140 | 1598 | MPV |
| CITROËN C4 GRAND PICASSO I (UA_) Construction Year to 201307 Fitting Position Front Axle | 2008-10 - 2013-08 | 110 | 150 | 1598 | MPV |
| CITROËN C4 GRAND PICASSO I (UA_) Construction Year from 201011 Construction Year to 201307 Fitting Position Front Axle | 2010-09 - 2013-08 | 115 | 156 | 1598 | MPV |
| CITROËN C4 GRAND PICASSO I (UA_) Construction Year to 201307 Fitting Position Front Axle | 2006-10 - 2013-08 | 103 | 140 | 1997 | MPV |
| CITROËN C4 GRAND PICASSO I (UA_) Construction Year to 201307 Fitting Position Front Axle | 2006-10 - 2013-12 | 100 | 136 | 1997 | MPV |
| CITROËN C4 GRAND PICASSO I (UA_) Construction Year to 201307 Fitting Position Front Axle | 2009-07 - 2013-08 | 110 | 150 | 1997 | MPV |
| CITROËN C4 GRAND PICASSO I (UA_) Construction Year from 201011 Construction Year to 201307 Fitting Position Front Axle | 2010-09 - 2013-08 | 120 | 163 | 1997 | MPV |
| CITROËN C4 PICASSO I MPV (UD_) Construction Year to 201307 Fitting Position Front Axle | 2008-07 - 2013-08 | 103 | 140 | 1598 | MPV |
| CITROËN C4 PICASSO I MPV (UD_) Construction Year to 201307 Fitting Position Front Axle | 2008-07 - 2013-08 | 110 | 150 | 1598 | MPV |
| CITROËN C4 PICASSO I MPV (UD_) Construction Year from 201011 Construction Year to 201307 Fitting Position Front Axle | 2010-09 - 2013-08 | 115 | 156 | 1598 | MPV |
| CITROËN C4 PICASSO I MPV (UD_) Construction Year to 201307 Fitting Position Front Axle | 2007-09 - 2013-08 | 103 | 140 | 1997 | MPV |
| CITROËN C4 PICASSO I MPV (UD_) Construction Year from 200702 Construction Year to 201307 Fitting Position Front Axle | 2006-10 - 2013-08 | 100 | 136 | 1997 | MPV |
| CITROËN C4 PICASSO I MPV (UD_) Construction Year to 201307 Fitting Position Front Axle | 2009-07 - 2013-08 | 110 | 150 | 1997 | MPV |
| CITROËN C4 PICASSO I MPV (UD_) Construction Year from 201011 Construction Year to 201307 Fitting Position Front Axle | 2010-09 - 2013-08 | 120 | 163 | 1997 | MPV |
| CITROËN C4 X (BD_, BE_, BF_) Fitting Position Front Axle | 2022-09 - | 100 | 136 | CC | Hatchback |
| CITROËN C4 X (BD_, BE_, BF_) Fitting Position Front Axle | 2023-07 - | 115 | 156 | CC | Hatchback |
| CITROËN C4 X (BD_, BE_, BF_) Fitting Position Front Axle | 2022-09 - | 74 | 101 | 1199 | Hatchback |
| CITROËN C4 X (BD_, BE_, BF_) Fitting Position Front Axle | 2022-09 - | 96 | 131 | 1199 | Hatchback |
| CITROËN C4 X (BD_, BE_, BF_) Fitting Position Front Axle | 2024-02 - | 100 | 136 | 1199 | Hatchback |
| CITROËN C4 X (BD_, BE_, BF_) Fitting Position Front Axle | 2022-09 - | 96 | 131 | 1499 | Hatchback |
| CITROËN C4 I (LC_) for RPO number up to 11500 Fitting Position Front Axle | 2004-11 - 2008-07 | 130 | 177 | 1997 | Hatchback |
| CITROËN C4 I (LC_) for RPO number up to 11500 Fitting Position Front Axle | 2004-11 - 2011-07 | 100 | 136 | 1997 | Hatchback |
| CITROËN C4 I (LC_) for RPO number up to 11500 Fitting Position Front Axle | 2008-07 - 2011-07 | 103 | 140 | 1997 | Hatchback |
| CITROËN C4 Coupe (LA_) for RPO number up to 11500 Fitting Position Front Axle | 2004-11 - 2010-12 | 130 | 177 | 1997 | Coupe |
| CITROËN C4 Coupe (LA_) for RPO number up to 11500 Fitting Position Front Axle | 2004-11 - 2010-12 | 100 | 136 | 1997 | Coupe |
| CITROËN C4 Coupe (LA_) for RPO number up to 11500 Fitting Position Front Axle | 2008-07 - 2011-07 | 103 | 140 | 1997 | Coupe |
| CITROËN C4 III (BA_, BB_, BC_) Fitting Position Front Axle for RPO number from 16261 | 2020-10 - | 100 | 136 | CC | Hatchback |
| CITROËN C4 III (BA_, BB_, BC_) Fitting Position Front Axle for RPO number from 16261 | 2023-06 - | 115 | 156 | CC | Hatchback |
| CITROËN C4 III (BA_, BB_, BC_) Fitting Position Front Axle for RPO number from 16261 | 2021-04 - | 74 | 101 | 1199 | Hatchback |
| CITROËN C4 III (BA_, BB_, BC_) Fitting Position Front Axle | 2024-04 - | 74 | 101 | 1199 | Hatchback |
| CITROËN C4 III (BA_, BB_, BC_) Fitting Position Front Axle for RPO number from 16261 | 2020-10 - | 96 | 131 | 1199 | Hatchback |
| CITROËN C4 III (BA_, BB_, BC_) Fitting Position Front Axle | 2024-02 - | 100 | 136 | 1199 | Hatchback |
| CITROËN C4 III (BA_, BB_, BC_) Fitting Position Front Axle for RPO number from 16261 | 2021-01 - | 114 | 155 | 1199 | Hatchback |
| CITROËN C4 III (BA_, BB_, BC_) Fitting Position Front Axle for RPO number from 16261 | 2020-12 - | 81 | 110 | 1499 | Hatchback |
| CITROËN C4 III (BA_, BB_, BC_) Fitting Position Front Axle for RPO number from 16261 | 2020-10 - | 96 | 131 | 1499 | Hatchback |
| CITROËN C4 I Hatchback Van (LR_) for RPO number up to 11500 Fitting Position Front Axle | 2005-02 - 2010-12 | 100 | 136 | 1997 | Hatchback Van |
| DS DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) Fitting Position Front Axle for RPO number from 16247 | 2019-05 - 2022-12 | 100 | 136 | CC | Hatchback |
| DS DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) Fitting Position Front Axle | 2023-01 - | 115 | 156 | CC | Hatchback |
| DS DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) Fitting Position Front Axle for RPO number from 16247 | 2018-10 - | 74 | 101 | 1199 | Hatchback |
| DS DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) Fitting Position Front Axle for RPO number from 16247 | 2018-10 - | 96 | 131 | 1199 | Hatchback |
| DS DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) Fitting Position Front Axle | 2024-04 - | 100 | 136 | 1199 | Hatchback |
| DS DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) Fitting Position Front Axle for RPO number from 16247 | 2018-10 - 2022-12 | 115 | 156 | 1199 | Hatchback |
| DS DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) Fitting Position Front Axle for RPO number from 16247 | 2018-10 - 2022-12 | 75 | 102 | 1499 | Hatchback |
| DS DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) Fitting Position Front Axle for RPO number from 16247 | 2018-10 - | 96 | 131 | 1499 | Hatchback |
| DS DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) Fitting Position Front Axle for RPO number from 16247 | 2021-01 - 2022-12 | 81 | 110 | 1499 | Hatchback |
| JEEP AVENGER (J2) Fitting Position Front Axle | 2022-12 - | 115 | 156 | CC | SUV |
| OPEL CORSA F (P2JO) Fitting Position Front Axle for RPO number from 16213 | 2019-07 - | 100 | 136 | CC | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Front Axle | 2023-03 - | 115 | 156 | CC | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Front Axle for RPO number from 16213 | 2019-07 - | 55 | 75 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Front Axle for RPO number from 16213 | 2019-07 - | 74 | 101 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Front Axle for RPO number from 16213 | 2023-08 - | 74 | 101 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Front Axle for RPO number from 16213 | 2019-07 - | 96 | 131 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Front Axle for RPO number from 16213 | 2024-01 - | 100 | 136 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Front Axle for RPO number from 16213 | 2019-07 - | 75 | 102 | 1499 | Hatchback |
| OPEL CORSA F Hatchback Van Fitting Position Front Axle for RPO number from 16213 | 2019-07 - | 55 | 75 | 1199 | Hatchback Van |
| OPEL CORSA F Hatchback Van Fitting Position Front Axle for RPO number from 16213 | 2019-07 - | 75 | 102 | 1499 | Hatchback Van |
| PEUGEOT 207 SW (WK_) Construction Year from 200711 Fitting Position Front Axle | 2007-02 - 2012-12 | 128 | 174 | 1598 | Estate |
| PEUGEOT 207/207+ (WA_, WC_) Construction Year to 201206 Fitting Position Front Axle | 2007-02 - 2012-12 | 128 | 174 | 1598 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 | 2019-06 - | 100 | 136 | CC | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 for DAM number from 17023VB | 2023-01 - | 115 | 156 | CC | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 | 2019-06 - | 55 | 75 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 | 2019-06 - | 60 | 82 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 | 2019-10 - | 68 | 92 | 1560 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 | 2019-06 - | 74 | 101 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 for DAM number from 17023VB | 2023-08 - | 74 | 101 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 | 2019-06 - | 96 | 131 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 for DAM number from 17023VB | 2023-09 - | 100 | 136 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 | 2019-06 - | 75 | 102 | 1499 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 | 2019-11 - | 85 | 116 | 1587 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Front Axle for DAM number from 1624776 | 2019-09 - | 96 | 131 | 1499 | Hatchback |
| PEUGEOT 307 (3A/C) Construction Year to 200707 Fitting Position Front Axle | 2005-06 - 2007-11 | 130 | 177 | 1997 | Hatchback |
| PEUGEOT 307 (3A/C) Construction Year to 200707 Fitting Position Front Axle | 2003-10 - 2007-11 | 100 | 136 | 1997 | Hatchback |
| PEUGEOT 307 Break (3E) Fitting Position Front Axle | 2004-02 - 2008-04 | 100 | 136 | 1997 | Estate |
| PEUGEOT 307 SW (3H) Fitting Position Front Axle | 2004-02 - 2008-04 | 100 | 136 | 1997 | Estate |
| PEUGEOT 307 CC (3B) Construction Year to 200902 Fitting Position Front Axle | 2003-10 - 2009-04 | 130 | 177 | 1997 | Convertible |
| PEUGEOT 307 CC (3B) Construction Year to 200902 Fitting Position Front Axle | 2005-06 - 2009-04 | 100 | 136 | 1997 | Convertible |
| PEUGEOT 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) Fitting Position Front Axle for RPO number from 16247 | 2019-09 - | 100 | 136 | CC | SUV |
| PEUGEOT 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) Fitting Position Front Axle for RPO number from 16247 | 2023-04 - | 115 | 156 | CC | SUV |
| PEUGEOT 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) Fitting Position Front Axle for RPO number from 16247 | 2019-11 - | 74 | 101 | 1199 | SUV |
| PEUGEOT 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) Fitting Position Front Axle for RPO number from 16247 | 2019-08 - | 96 | 131 | 1199 | SUV |
| PEUGEOT 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) Fitting Position Front Axle | 2023-11 - | 100 | 136 | 1199 | SUV |
| PEUGEOT 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) Fitting Position Front Axle for RPO number from 16247 | 2019-11 - | 114 | 155 | 1199 | SUV |
| PEUGEOT 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) Fitting Position Front Axle for RPO number from 16247 | 2019-08 - | 75 | 102 | 1499 | SUV |
| PEUGEOT 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) Fitting Position Front Axle for RPO number from 16247 | 2021-01 - | 81 | 110 | 1499 | SUV |
| PEUGEOT 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) Fitting Position Front Axle for RPO number from 16247 | 2019-08 - | 96 | 131 | 1499 | SUV |
| PEUGEOT 3008 I MPV (0U_) Fitting Position Front Axle | 2009-06 - 2016-08 | 110 | 150 | 1598 | MPV |
| PEUGEOT 3008 I MPV (0U_) Fitting Position Front Axle | 2009-06 - 2016-08 | 115 | 156 | 1598 | MPV |
| PEUGEOT 3008 I MPV (0U_) Fitting Position Front Axle | 2014-05 - 2016-08 | 121 | 165 | 1598 | MPV |
| PEUGEOT 3008 I MPV (0U_) Fitting Position Front Axle | 2011-09 - 2016-08 | 100 | 136 | 1997 | MPV |
| PEUGEOT 3008 I MPV (0U_) Fitting Position Front Axle | 2009-06 - 2016-08 | 110 | 150 | 1997 | MPV |
| PEUGEOT 3008 I MPV (0U_) Fitting Position Front Axle | 2009-06 - 2016-08 | 120 | 163 | 1997 | MPV |
| PEUGEOT 3008 I MPV (0U_) Fitting Position Front Axle | 2011-02 - 2016-08 | 147 | 200 | 1997 | MPV |
| PEUGEOT 307 SW Estate Van (3E_, 3H_) Fitting Position Front Axle | 2004-04 - 2007-11 | 100 | 136 | 1997 | Estate Van |
| PEUGEOT 3008 Van (0U_) Fitting Position Front Axle | 2009-06 - 2016-08 | 110 | 150 | 1997 | Box Body/MPV |
| PEUGEOT 3008 Van (0U_) Fitting Position Front Axle | 2009-06 - 2016-08 | 120 | 163 | 1997 | Box Body/MPV |

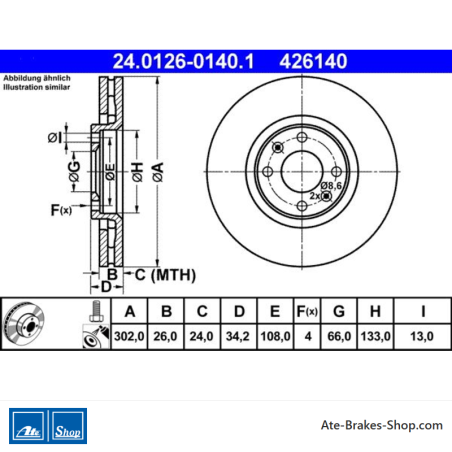

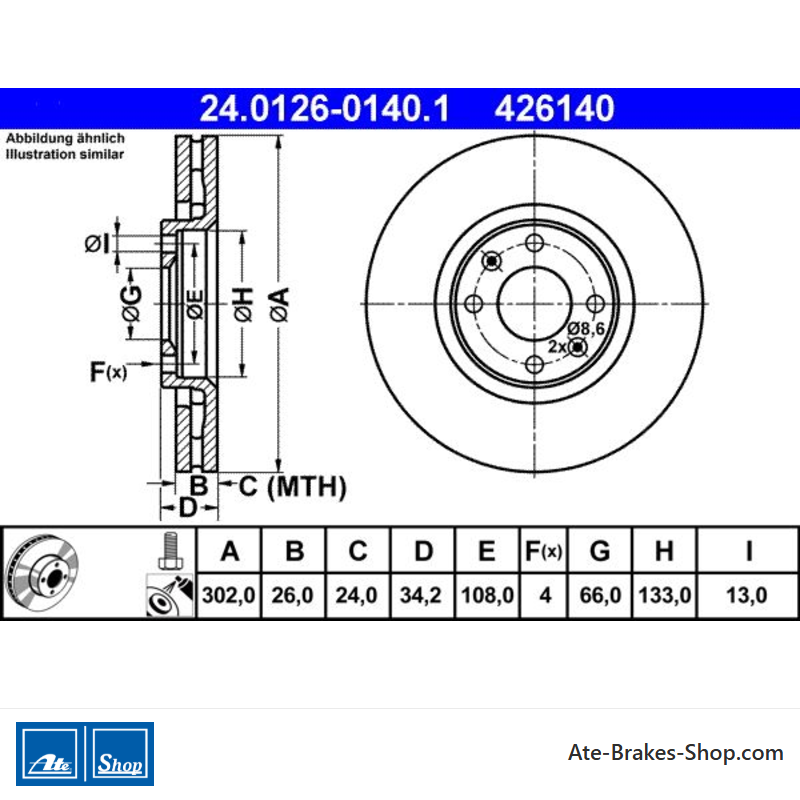

24.0126-0140.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Citroën
Jeep
Opel
Peugeot - Handelsnummer
- 426140
- Herkunftsland
- Deutschland
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 34,2
- Außendurchmesser [mm]
- 302,0
- Bremsscheibendicke [mm]
- 26,0
- Bremsscheibentyp
- Extern entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 66,0
- Innendurchmesser [mm]
- 133,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 24,0
Spezifische Referenzen
- ean13
- 4006633293358
- Hersteller-Teilenummer (MPN)
- 2401260140102
ATE 24.0126-0140.1
(240126-01401)
- Außendurchmesser [mm]: 302,0
- Innendurchmesser [mm]: 133,0
- Bremsscheibendicke [mm]: 26,0
- Anzahl der Bolzenlöcher: 4
- Handelsnummer: 426140
