ATE Originale zweiteilige Bremsscheibe (24012601501) für Hyundai, Kia
116,16 €
(inkl. MwSt.)
96,00 € Steuerexzl.
Teilenummer:
ATE 24.0126-0150.1
(240126-01501)
- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 143,5
- Bremsscheibendicke [mm]: 26,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 426150
Logistische Informationen:
- Ean-Code: 4006633315364
- Gewicht: 14.45kg

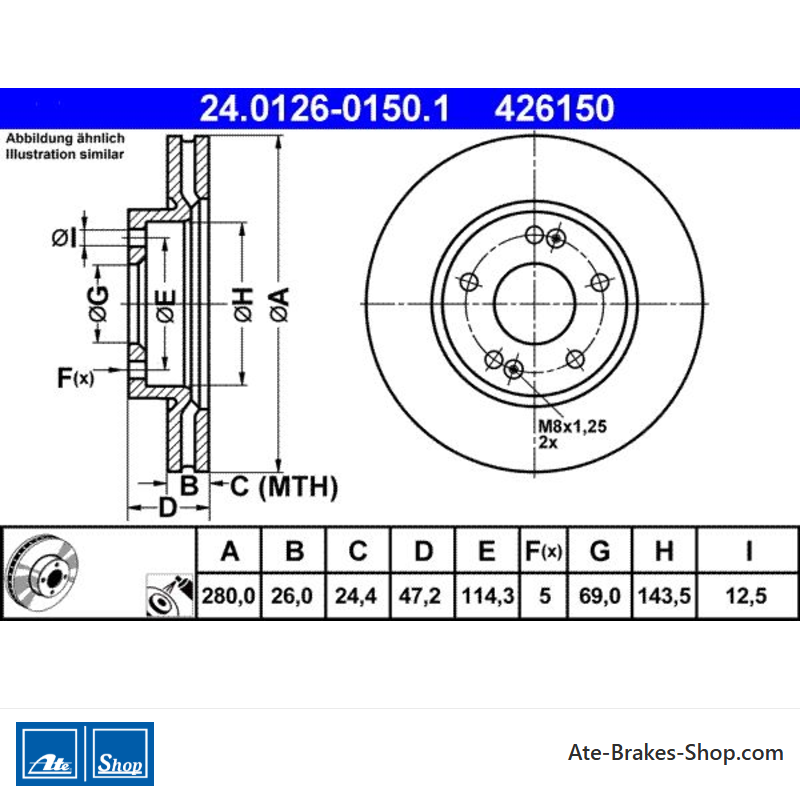

Specification of ATE 24.0126-0150.1 / 240126-01501 / 24012601501:
| OE Number | Reference info |
| HYUNDAI 51712-1H100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 51712-1H000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-2K100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-1H000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-1H100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 15" | 2007-10 - 2011-11 | 77 | 105 | 1396 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 15" | 2007-10 - 2011-11 | 80 | 109 | 1396 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 15" | 2007-10 - 2011-11 | 85 | 116 | 1591 | Hatchback |
| HYUNDAI i30 (FD) Fitting Position Front Axle Brake Size 15" | 2009-01 - 2011-11 | 80 | 109 | 1396 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 15" | 2007-10 - 2011-11 | 90 | 122 | 1591 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 15" | 2008-02 - 2011-11 | 93 | 126 | 1591 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 15" | 2007-10 - 2011-11 | 105 | 143 | 1975 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 15" | 2007-10 - 2011-11 | 66 | 90 | 1582 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 15" | 2007-10 - 2011-11 | 85 | 116 | 1582 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 15" | 2010-01 - 2011-11 | 94 | 128 | 1582 | Hatchback |
| HYUNDAI i30 (FD) Construction Year from 200802 Construction Year to 201110 Fitting Position Front Axle Brake Size 15" | 2007-10 - 2011-11 | 100 | 136 | 1991 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 15" | 2007-10 - 2011-11 | 103 | 140 | 1991 | Hatchback |
| HYUNDAI i30 Estate (FD) Construction Year from 200802 Fitting Position Front Axle Brake Size 15" | 2007-10 - 2012-06 | 77 | 105 | 1396 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 15" | 2009-11 - 2012-06 | 80 | 109 | 1396 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 15" | 2008-02 - 2012-06 | 85 | 116 | 1591 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 15" | 2009-11 - 2012-06 | 80 | 109 | 1396 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 15" | 2008-02 - 2012-06 | 90 | 122 | 1591 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 15" | 2008-02 - 2012-06 | 93 | 126 | 1591 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 15" | 2008-02 - 2012-06 | 105 | 143 | 1975 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 15" | 2008-02 - 2012-06 | 66 | 90 | 1582 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 15" | 2008-02 - 2012-06 | 85 | 116 | 1582 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 15" | 2010-01 - 2012-06 | 94 | 128 | 1582 | Estate |
| HYUNDAI i30 Estate (FD) Construction Year from 201001 Fitting Position Front Axle Brake Size 15" | 2008-10 - 2012-06 | 100 | 136 | 1991 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 15" | 2008-02 - 2012-06 | 103 | 140 | 1991 | Estate |
| HYUNDAI i30 Estate (GD) Construction Year to 201206 Fitting Position Front Axle Brake Size 15" | 2012-06 - | 88 | 120 | 1591 | Estate |
| HYUNDAI ix20 (JC) Fitting Position Front Axle | 2010-11 - 2019-07 | 66 | 90 | 1396 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Front Axle | 2010-11 - 2019-07 | 92 | 125 | 1591 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Front Axle | 2011-06 - 2019-07 | 57 | 78 | 1396 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Front Axle | 2010-11 - 2019-07 | 66 | 90 | 1396 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Front Axle | 2011-06 - 2019-07 | 85 | 116 | 1582 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Front Axle | 2011-06 - 2019-07 | 94 | 128 | 1582 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Front Axle | 2010-11 - 2019-07 | 66 | 90 | 1396 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Front Axle | 2010-11 - 2019-07 | 92 | 125 | 1591 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year from 201006 Construction Year to 201209 Fitting Position Front Axle | 2009-08 - 2012-12 | 66 | 90 | 1396 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Front Axle | 2006-12 - 2012-12 | 77 | 105 | 1396 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Front Axle | 2006-12 - 2012-12 | 80 | 109 | 1396 | Hatchback |
| KIA CEE'D Hatchback (ED) Fitting Position Front Axle | 2011-06 - 2012-04 | 64 | 87 | 1396 | Hatchback |
| KIA CEE'D Hatchback (ED) Fitting Position Front Axle | 2009-01 - 2010-12 | 80 | 109 | 1396 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Front Axle | 2007-09 - 2012-12 | 85 | 115 | 1591 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Front Axle | 2006-12 - 2012-12 | 90 | 122 | 1591 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Front Axle | 2010-10 - 2012-12 | 92 | 125 | 1591 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Front Axle | 2008-02 - 2012-12 | 93 | 126 | 1591 | Hatchback |
| KIA CEE'D Hatchback (ED) Fitting Position Front Axle | 2007-06 - 2011-12 | 91 | 124 | 1591 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Front Axle | 2006-12 - 2012-12 | 105 | 143 | 1975 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Front Axle | 2006-12 - 2012-12 | 66 | 90 | 1582 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Front Axle | 2006-12 - 2012-12 | 85 | 115 | 1582 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Front Axle | 2010-10 - 2012-12 | 94 | 128 | 1582 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year from 200709 Construction Year to 201209 Fitting Position Front Axle | 2007-06 - 2012-12 | 100 | 136 | 1991 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Front Axle | 2007-09 - 2012-12 | 103 | 140 | 1991 | Hatchback |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2011-06 - 2012-04 | 64 | 87 | 1396 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2009-07 - 2012-12 | 66 | 90 | 1396 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2010-10 - 2012-12 | 77 | 105 | 1396 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2007-09 - 2012-12 | 80 | 109 | 1396 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2009-01 - 2010-12 | 80 | 109 | 1396 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2007-09 - 2012-11 | 85 | 115 | 1591 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2007-09 - 2012-12 | 90 | 122 | 1591 | Estate |
| KIA CEE'D SW (ED) Construction Year to 201112 Fitting Position Front Axle | 2008-01 - 2012-09 | 91 | 124 | 1591 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2009-06 - 2012-12 | 92 | 125 | 1591 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2007-09 - 2012-12 | 93 | 126 | 1591 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2007-09 - 2012-12 | 105 | 143 | 1975 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2007-09 - 2012-12 | 66 | 90 | 1582 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2007-09 - 2012-12 | 85 | 115 | 1582 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2010-10 - 2012-12 | 94 | 128 | 1582 | Estate |
| KIA CEE'D SW (ED) Fitting Position Front Axle | 2007-07 - 2012-12 | 103 | 140 | 1991 | Estate |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2010-06 - 2012-09 | 66 | 90 | 1396 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2008-02 - 2012-09 | 77 | 105 | 1396 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2008-02 - 2012-09 | 80 | 109 | 1396 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2008-02 - 2012-09 | 85 | 116 | 1591 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2008-02 - 2012-09 | 90 | 122 | 1591 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2010-10 - 2013-02 | 92 | 125 | 1591 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2008-02 - 2012-09 | 93 | 126 | 1591 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2008-02 - 2012-09 | 105 | 143 | 1975 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2009-01 - 2009-12 | 105 | 143 | 1975 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2008-02 - 2012-09 | 66 | 90 | 1582 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2008-02 - 2012-09 | 85 | 115 | 1582 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2010-10 - 2012-09 | 94 | 128 | 1582 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Front Axle | 2008-02 - 2012-09 | 103 | 140 | 1991 | Hatchback |
| KIA SOUL I (AM) Fitting Position Front Axle | 2009-02 - 2011-12 | 77 | 105 | 1591 | Hatchback |
| KIA SOUL I (AM) Construction Year to 201402 Fitting Position Front Axle | 2009-09 - 2014-12 | 91 | 124 | 1591 | Hatchback |
| KIA SOUL I (AM) Fitting Position Front Axle | 2009-02 - 2011-12 | 92 | 125 | 1591 | Hatchback |
| KIA SOUL I (AM) Fitting Position Front Axle | 2009-02 - 2011-12 | 93 | 126 | 1591 | Hatchback |
| KIA SOUL I (AM) Construction Year to 201402 Fitting Position Front Axle | 2011-06 - 2014-12 | 95 | 129 | 1591 | Hatchback |
| KIA SOUL I (AM) Construction Year to 201402 Fitting Position Front Axle | 2011-06 - 2014-12 | 103 | 140 | 1591 | Hatchback |
| KIA SOUL I (AM) Construction Year to 201402 Fitting Position Front Axle | 2009-02 - 2014-12 | 85 | 115 | 1582 | Hatchback |
| KIA SOUL I (AM) Construction Year to 201402 Fitting Position Front Axle | 2009-02 - 2014-12 | 94 | 126 | 1582 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 15" | 2014-02 - 2018-12 | 91 | 124 | 1591 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 15" | 2016-07 - 2018-12 | 95 | 129 | 1591 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 15" | 2014-02 - 2018-12 | 97 | 132 | 1591 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 15" | 2016-11 - 2018-12 | 150 | 204 | 1591 | Hatchback |
| KIA SOUL II (PS) Construction Year from 201404 Fitting Position Front Axle Brake Size 15" | 2014-02 - 2018-12 | 113 | 154 | 1999 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 15" | 2014-02 - 2018-12 | 94 | 126 | 1582 | Hatchback |
| KIA SOUL II (PS) Construction Year to 201402 Fitting Position Front Axle | 2014-02 - 2018-12 | 94 | 126 | 1582 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 15" | 2015-04 - 2018-12 | 100 | 136 | 1582 | Hatchback |
| KIA SOUL III (SK3) Fitting Position Front Axle | 2019-01 - | 91 | 124 | 1591 | Hatchback |
| KIA SOUL III (SK3) Fitting Position Front Axle | 2019-01 - | 110 | 150 | 1999 | Hatchback |
| KIA VENGA (YN) Fitting Position Front Axle | 2010-02 - 2019-03 | 66 | 90 | 1396 | Hatchback |
| KIA VENGA (YN) Fitting Position Front Axle | 2010-02 - 2019-03 | 66 | 90 | 1396 | Hatchback |
| KIA VENGA (YN) Fitting Position Front Axle | 2010-02 - 2019-03 | 57 | 78 | 1396 | Hatchback |
| KIA VENGA (YN) Fitting Position Front Axle | 2010-02 - 2019-03 | 92 | 125 | 1591 | Hatchback |
| KIA VENGA (YN) Fitting Position Front Axle | 2010-02 - 2019-03 | 55 | 75 | 1396 | Hatchback |
| KIA VENGA (YN) Fitting Position Front Axle | 2010-02 - 2019-03 | 66 | 90 | 1396 | Hatchback |
| KIA VENGA (YN) Fitting Position Front Axle | 2010-02 - 2019-03 | 85 | 116 | 1582 | Hatchback |
| KIA VENGA (YN) Fitting Position Front Axle | 2010-02 - 2019-03 | 94 | 128 | 1582 | Hatchback |
| KIA VENGA Hatchback Van (YN) Fitting Position Front Axle | 2015-04 - | 66 | 90 | 1396 | Hatchback Van |
| KIA VENGA Hatchback Van (YN) Fitting Position Front Axle | 2015-02 - | 92 | 125 | 1591 | Hatchback Van |
24.0126-0150.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Hyundai
Kia - Handelsnummer
- 426150
- Herkunftsland
- QU
- Höhe
- 47,2
- Außendurchmesser [mm]
- 280,0
- Bremsscheibendicke [mm]
- 26,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Legierte/Hochkohlenstoff-Legierungen
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 69,0
- Innendurchmesser [mm]
- 143,5
- Bohrdurchmesser [mm]
- 12,5
- Mindestdicke [mm]
- 24,4
Spezifische Referenzen
- ean13
- 4006633315364
- Hersteller-Teilenummer (MPN)
- 2401260150102
ATE 24.0126-0150.1
(240126-01501)
- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 143,5
- Bremsscheibendicke [mm]: 26,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 426150
