ATE Originale Bremsscheibe (24012801331) für Renault
181,50 €
(inkl. MwSt.)
150,00 € Steuerexzl.
Teilenummer:
ATE 24.0128-0133.1
(240128-01331)
- Außendurchmesser [mm]: 324,0
- Innendurchmesser [mm]: 150,0
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 428133
Logistische Informationen:
- Ean-Code: 4006633105989
- Gewicht: 11.31kg
Specification of ATE 24.0128-0133.1 / 240128-01331 / 24012801331:
| OE Number | Reference info |
| RENAULT 82 00 570 191 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200570191 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 77 01 207 357 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7701207357 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 242 318 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200242318 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 177 024 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200177024 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 86 71 019 275 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8671019275 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT ESPACE IV (JK0/1_) Rims for light alloy rims Fitting Position Front Axle | 2002-11 - 2015-12 | 98 | 133 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Construction Year to 200309 Rims for light alloy rims Fitting Position Front Axle | 2002-11 - 2015-01 | 100 | 136 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Construction Year to 200309 Rims for steel rims Fitting Position Front Axle | 2002-11 - 2006-02 | 120 | 163 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Construction Year to 200309 Rims for light alloy rims Fitting Position Front Axle Rim Size [inch] 17.0 Inch | 2002-11 - 2006-02 | 120 | 163 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Rims for light alloy rims Fitting Position Front Axle Rim Size [inch] 18.0 Inch | 2002-11 - 2006-02 | 120 | 163 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Fitting Position Front Axle | 2002-11 - 2015-12 | 177 | 241 | 3498 | MPV |
| RENAULT ESPACE IV (JK0/1_) Construction Year to 200309 Rims for light alloy rims Fitting Position Front Axle | 2002-11 - 2015-01 | 88 | 120 | 1870 | MPV |
| RENAULT ESPACE IV (JK0/1_) Fitting Position Front Axle | 2006-01 - 2015-12 | 110 | 150 | 1995 | MPV |
| RENAULT ESPACE IV (JK0/1_) Fitting Position Front Axle | 2006-01 - 2015-12 | 127 | 173 | 1995 | MPV |
| RENAULT ESPACE IV (JK0/1_) Fitting Position Front Axle | 2006-02 - 2015-12 | 102 | 139 | 2188 | MPV |
| RENAULT ESPACE IV (JK0/1_) Fitting Position Front Axle | 2002-11 - 2006-08 | 110 | 150 | 2188 | MPV |
| RENAULT ESPACE IV (JK0/1_) Fitting Position Front Axle | 2005-09 - 2015-01 | 120 | 163 | 2958 | MPV |
| RENAULT ESPACE IV (JK0/1_) Fitting Position Front Axle | 2002-11 - 2006-08 | 130 | 177 | 2958 | MPV |
| RENAULT ESPACE IV (JK0/1_) Fitting Position Front Axle | 2006-01 - 2015-01 | 133 | 181 | 2958 | MPV |
| RENAULT VEL SATIS (BJ0_) Fitting Position Front Axle | 2002-06 - 2009-08 | 120 | 163 | 1998 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Fitting Position Front Axle | 2004-04 - 2009-08 | 125 | 170 | 1998 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Fitting Position Front Axle | 2004-10 - 2009-08 | 170 | 231 | 3498 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Fitting Position Front Axle | 2002-06 - 2009-08 | 177 | 241 | 3498 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Fitting Position Front Axle | 2005-08 - 2009-08 | 110 | 150 | 1995 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Fitting Position Front Axle | 2006-01 - 2009-08 | 127 | 173 | 1995 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Fitting Position Front Axle | 2004-12 - 2009-08 | 83 | 113 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Fitting Position Front Axle | 2002-06 - 2005-09 | 85 | 116 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Construction Year to 200912 Fitting Position Front Axle | 2004-09 - 2009-08 | 102 | 140 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Fitting Position Front Axle | 2002-06 - 2009-08 | 110 | 150 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Fitting Position Front Axle | 2002-06 - 2006-06 | 130 | 177 | 2958 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Fitting Position Front Axle | 2006-06 - 2009-08 | 133 | 181 | 2958 | Hatchback |
24.0128-0133.1

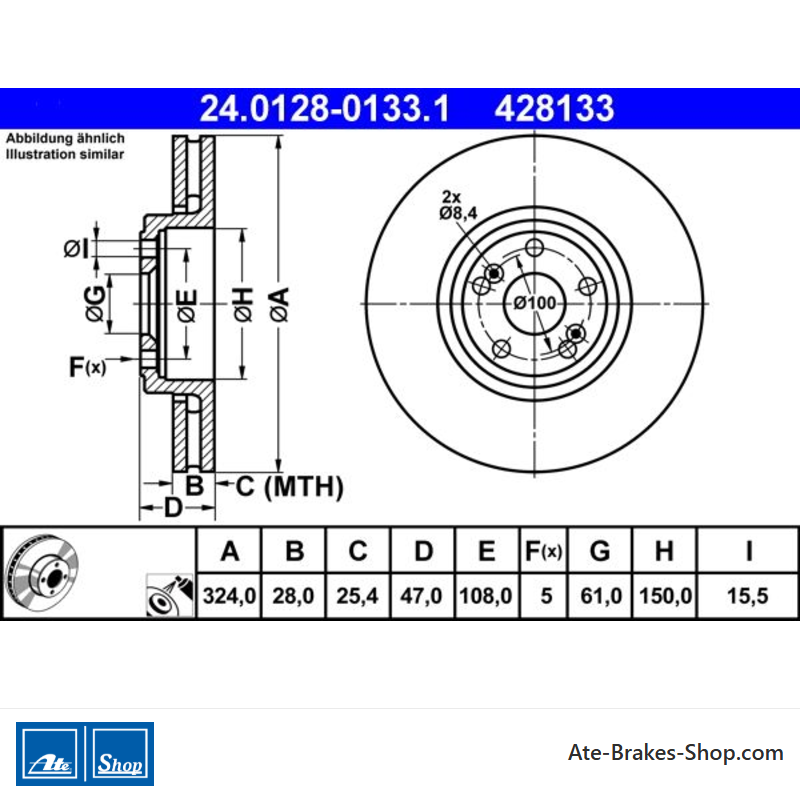

Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Renault
- Handelsnummer
- 428133
- Herkunftsland
- Tschechien
- Höhe
- 47,0
- Außendurchmesser [mm]
- 324,0
- Bremsscheibendicke [mm]
- 28,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Kohlenstoffhoch
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 61,0
- Innendurchmesser [mm]
- 150,0
- Bohrdurchmesser [mm]
- 15,5
- Mindestdicke [mm]
- 25,4
Spezifische Referenzen
- ean13
- 4006633105989
- Hersteller-Teilenummer (MPN)
- 2401280133102
ATE 24.0128-0133.1
(240128-01331)
- Außendurchmesser [mm]: 324,0
- Innendurchmesser [mm]: 150,0
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 428133
