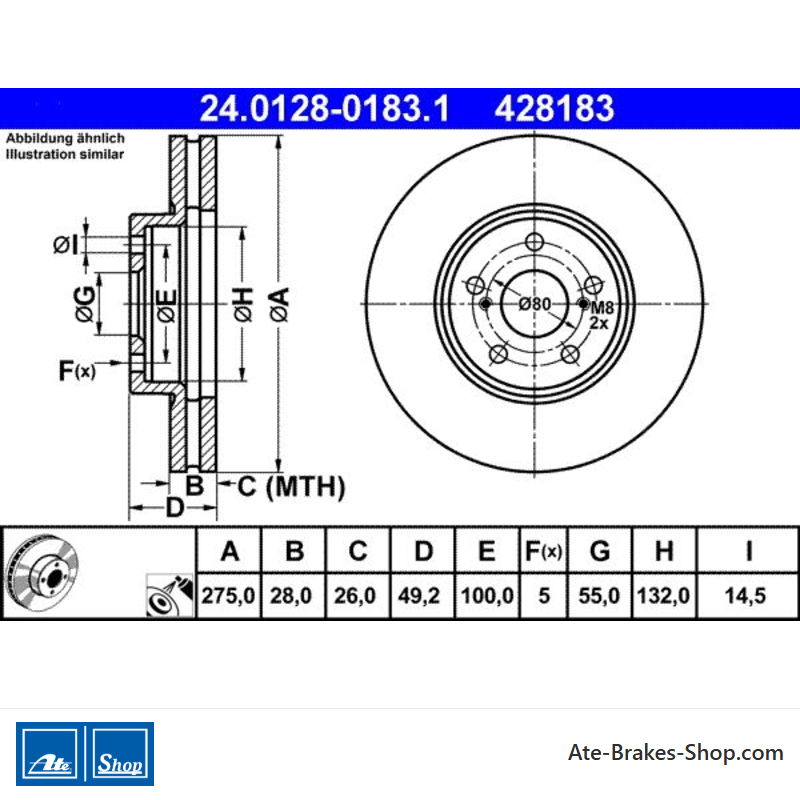

ATE Originale zweiteilige Bremsscheibe (24012801831) für Toyota
127,05 €
(inkl. MwSt.)
105,00 € Steuerexzl.
Teilenummer:
ATE 24.0128-0183.1
(240128-01831)
- Außendurchmesser [mm]: 275,0
- Innendurchmesser [mm]: 132,0
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 428183
Logistische Informationen:
- Ean-Code: 4006633226561
- Gewicht: 12.98kg
Specification of ATE 24.0128-0183.1 / 240128-01831 / 24012801831:
| OE Number | Reference info |
| TOYOTA 43512-20600 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-20601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA AVENSIS (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2000-10 - 2003-02 | 81 | 110 | 1598 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2000-10 - 2003-02 | 95 | 129 | 1794 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year from 200010 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 1997-09 - 2000-10 | 94 | 128 | 1998 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2000-10 - 2003-02 | 110 | 150 | 1998 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 1997-09 - 2003-02 | 66 | 90 | 1974 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 1999-10 - 2003-02 | 81 | 110 | 1995 | Saloon |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2000-10 - 2003-02 | 81 | 110 | 1598 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2000-10 - 2003-02 | 95 | 129 | 1794 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year from 200010 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 1997-09 - 2000-10 | 94 | 128 | 1998 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2000-10 - 2003-02 | 110 | 150 | 1998 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 1997-09 - 2003-02 | 66 | 90 | 1974 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 1999-10 - 2003-02 | 81 | 110 | 1995 | Hatchback |
| TOYOTA AVENSIS Estate (_T22_) Construction Year from 200010 Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2000-07 - 2003-02 | 81 | 110 | 1598 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2000-10 - 2003-02 | 95 | 129 | 1794 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year from 200010 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 1997-09 - 2000-10 | 94 | 128 | 1998 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2000-10 - 2003-02 | 110 | 150 | 1998 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 1997-09 - 2003-02 | 66 | 90 | 1974 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200106 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 1999-10 - 2003-02 | 81 | 110 | 1995 | Estate |
24.0128-0183.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Toyota
- Handelsnummer
- 428183
- Herkunftsland
- Italien
- Höhe
- 49,2
- Außendurchmesser [mm]
- 275,0
- Bremsscheibendicke [mm]
- 28,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 55,0
- Innendurchmesser [mm]
- 132,0
- Bohrdurchmesser [mm]
- 14,5
- Mindestdicke [mm]
- 26,0
Spezifische Referenzen
- ean13
- 4006633226561
- Hersteller-Teilenummer (MPN)
- 2401280183102
ATE 24.0128-0183.1
(240128-01831)
- Außendurchmesser [mm]: 275,0
- Innendurchmesser [mm]: 132,0
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 428183
