ATE Originale Bremsscheibe (24012802161) für Citroën, Fiat, Peugeot, Toyota
152,46 €
(inkl. MwSt.)
126,00 € Steuerexzl.
Teilenummer:
ATE 24.0128-0216.1
(240128-02161)
- Außendurchmesser [mm]: 304,0
- Innendurchmesser [mm]: 145,5
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 428216
Logistische Informationen:
- Ean-Code: 4006633322799
- Gewicht: 10.17kg

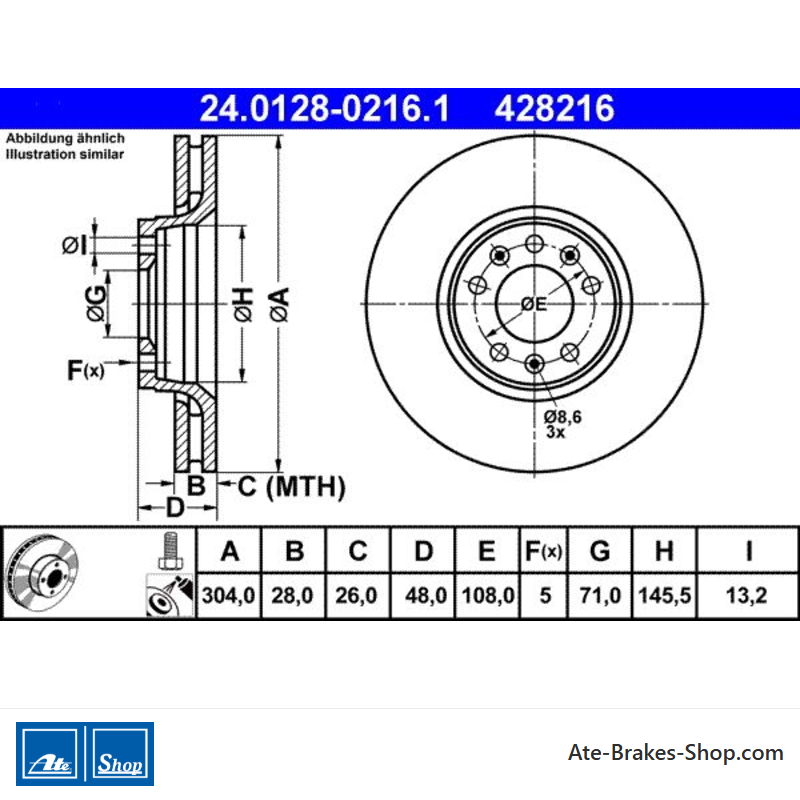

Specification of ATE 24.0128-0216.1 / 240128-02161 / 24012802161:
| OE Number | Reference info |
| CITROËN 4249 25 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424925 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 92 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424992 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 K0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249K0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 16 118 419 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 1611841980 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9467548587 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 1440027088 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9467548588 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 92 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424992 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 24 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424924 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 K0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249K0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA SU001-A1064 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2010-07 - 2015-06 | 88 | 120 | 1598 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2010-07 - 2016-07 | 110 | 150 | 1598 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2009-04 - 2016-07 | 115 | 156 | 1598 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2008-02 - 2010-10 | 92 | 125 | 1749 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2008-02 - 2014-10 | 103 | 140 | 1997 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2008-02 - 2012-12 | 103 | 140 | 1997 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2008-02 - 2010-10 | 80 | 109 | 1560 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2010-07 - 2012-05 | 82 | 112 | 1560 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2012-01 - 2015-06 | 84 | 114 | 1560 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2008-02 - 2014-06 | 100 | 136 | 1997 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2008-11 - 2015-06 | 103 | 140 | 1997 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2009-04 - 2017-05 | 110 | 150 | 1997 | Saloon |
| CITROËN C5 III (RD_) Fitting Position Front Axle | 2009-04 - 2016-07 | 120 | 163 | 1997 | Saloon |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2010-07 - 2015-06 | 88 | 120 | 1598 | Estate |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2009-04 - 2016-07 | 110 | 150 | 1598 | Estate |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2009-04 - 2016-07 | 115 | 156 | 1598 | Estate |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2008-02 - 2010-10 | 92 | 125 | 1749 | Estate |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2008-02 - 2014-10 | 103 | 140 | 1997 | Estate |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2008-02 - 2010-06 | 103 | 140 | 1997 | Estate |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2008-02 - 2010-10 | 80 | 109 | 1560 | Estate |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2010-07 - 2012-05 | 82 | 112 | 1560 | Estate |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2012-06 - 2015-06 | 84 | 114 | 1560 | Estate |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2008-02 - 2014-06 | 100 | 136 | 1997 | Estate |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2009-04 - 2015-06 | 103 | 140 | 1997 | Estate |
| CITROËN C5 III Break (RW_) Fitting Position Front Axle | 2009-04 - 2017-05 | 110 | 150 | 1997 | Estate |
| CITROËN JUMPY II Platform/Chassis Fitting Position Front Axle | 2006-11 - 2016-03 | 103 | 140 | 1997 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-06 - 2016-03 | 66 | 90 | 1560 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-06 - 2016-03 | 66 | 90 | 1560 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Fitting Position Front Axle | 2011-07 - 2016-03 | 72 | 98 | 1997 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Fitting Position Front Axle | 2009-01 - 2016-03 | 88 | 120 | 1997 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Fitting Position Front Axle | 2011-07 - | 94 | 128 | 1997 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Fitting Position Front Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Platform/Chassis |
| CITROËN JUMPY II Van Fitting Position Front Axle | 2007-01 - 2016-03 | 103 | 140 | 1997 | Van |
| CITROËN JUMPY II Van Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Van |
| CITROËN JUMPY II Van Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Van |
| CITROËN JUMPY II Van Fitting Position Front Axle | 2011-07 - 2016-03 | 72 | 98 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Front Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Front Axle | 2010-01 - 2016-03 | 88 | 120 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Front Axle | 2011-07 - 2016-03 | 94 | 128 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Front Axle | 2011-07 - 2016-03 | 94 | 128 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Front Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Van |
| CITROËN JUMPY II Van Fitting Position Front Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Van |
| CITROËN JUMPY II (VF7) Fitting Position Front Axle | 2007-01 - 2016-03 | 103 | 140 | 1997 | Bus |
| CITROËN JUMPY II (VF7) Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| CITROËN JUMPY II (VF7) Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Front Axle | 2011-07 - 2016-03 | 72 | 98 | 1997 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Front Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Front Axle | 2011-07 - 2016-03 | 94 | 128 | 1997 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Front Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Bus |
| CITROËN JUMPY II (VF7) Fitting Position Front Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Bus |
| FIAT SCUDO Van (270_, 272_) Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2011-02 - 2016-03 | 66 | 90 | 1560 | Van |
| FIAT SCUDO Van (270_, 272_) Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Van |
| FIAT SCUDO Van (270_, 272_) Fitting Position Front Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Construction Year from 201104 Fitting Position Front Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Fitting Position Front Axle | 2011-05 - 2016-03 | 94 | 128 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Fitting Position Front Axle | 2011-05 - 2016-03 | 94 | 128 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Fitting Position Front Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Construction Year from 201104 Fitting Position Front Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Van |
| FIAT SCUDO Van (270_, 272_) Fitting Position Front Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Van |
| FIAT SCUDO Platform/Chassis (270_, 272_) Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (270_, 272_) Fitting Position Front Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (270_, 272_) Fitting Position Front Axle | 2011-05 - 2016-03 | 94 | 128 | 1997 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (270_, 272_) Fitting Position Front Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (270_, 272_) Fitting Position Front Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Platform/Chassis |
| FIAT SCUDO Bus (270_, 272_) Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2011-02 - 2016-03 | 66 | 90 | 1560 | Bus |
| FIAT SCUDO Bus (270_, 272_) Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Front Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Bus |
| FIAT SCUDO Bus (270_, 272_) Construction Year from 201104 Fitting Position Front Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Bus |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Front Axle | 2011-04 - 2016-03 | 94 | 128 | 1997 | Bus |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Front Axle | 2011-04 - 2016-03 | 94 | 128 | 1997 | Bus |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Front Axle | 2007-01 - 2016-03 | 100 | 136 | 1997 | Bus |
| FIAT SCUDO Bus (270_, 272_) Fitting Position Front Axle | 2010-07 - 2016-03 | 120 | 163 | 1997 | Bus |
| PEUGEOT 407 (6D_) for RPO number from 11683 Fitting Position Front Axle | 2004-11 - 2007-10 | 93 | 126 | 1997 | Saloon |
| PEUGEOT 407 (6D_) for RPO number from 11683 Fitting Position Front Axle | 2004-05 - 2010-10 | 100 | 136 | 1997 | Saloon |
| PEUGEOT 407 (6D_) Fitting Position Front Axle | 2009-06 - 2010-12 | 103 | 140 | 1997 | Saloon |
| PEUGEOT 407 SW (6E_, 6D_) for RPO number from 11683 Fitting Position Front Axle | 2004-07 - 2010-12 | 100 | 136 | 1997 | Estate |
| PEUGEOT 407 SW (6E_, 6D_) Fitting Position Front Axle | 2008-08 - 2010-12 | 103 | 140 | 1997 | Estate |
| PEUGEOT 407 Coupe (6C_) Construction Year to 201112 Fitting Position Front Axle | 2009-06 - | 120 | 163 | 1997 | Coupe |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Front Axle | 2007-01 - | 103 | 140 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - | 66 | 90 | 1560 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - | 66 | 90 | 1560 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Front Axle | 2011-03 - | 72 | 98 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Front Axle | 2007-01 - | 88 | 120 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Front Axle | 2010-01 - | 88 | 120 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Front Axle | 2011-03 - | 94 | 128 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Front Axle | 2012-01 - 2016-03 | 94 | 128 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Front Axle | 2007-01 - | 100 | 136 | 1997 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Fitting Position Front Axle | 2009-09 - | 120 | 163 | 1997 | Van |
| PEUGEOT EXPERT Platform/Chassis Fitting Position Front Axle | 2007-01 - 2016-03 | 103 | 140 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - | 66 | 90 | 1560 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - | 66 | 90 | 1560 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Fitting Position Front Axle | 2007-01 - | 88 | 120 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Fitting Position Front Axle | 2011-03 - | 94 | 128 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Fitting Position Front Axle | 2007-01 - | 100 | 136 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Fitting Position Front Axle | 2009-09 - | 120 | 163 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Front Axle | 2007-01 - 2016-03 | 103 | 140 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Front Axle | 2011-03 - 2016-03 | 72 | 98 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Front Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Front Axle | 2007-01 - 2016-03 | 88 | 120 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Front Axle | 2011-03 - | 94 | 128 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Front Axle | 2011-03 - 2016-03 | 94 | 128 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Front Axle | 2007-01 - | 100 | 136 | 1997 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Fitting Position Front Axle | 2009-09 - | 120 | 163 | 1997 | Bus |
| TOYOTA PROACE Van (MDX_) Fitting Position Front Axle Rim Size [inch] 16.0 Inch | 2013-06 - 2016-03 | 66 | 90 | 1560 | Van |
| TOYOTA PROACE Van (MDX_) Fitting Position Front Axle Rim Size [inch] 16.0 Inch | 2013-06 - 2016-03 | 94 | 128 | 1997 | Van |
| TOYOTA PROACE Van (MDX_) Fitting Position Front Axle Rim Size [inch] 16.0 Inch | 2013-06 - 2016-03 | 120 | 163 | 1997 | Van |
24.0128-0216.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Citroën
Fiat
Peugeot
Toyota - Handelsnummer
- 428216
- Herkunftsland
- EU
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 48,0
- Außendurchmesser [mm]
- 304,0
- Bremsscheibendicke [mm]
- 28,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 71,0
- Innendurchmesser [mm]
- 145,5
- Bohrdurchmesser [mm]
- 13,2
- Mindestdicke [mm]
- 26,0
Spezifische Referenzen
- ean13
- 4006633322799
- Hersteller-Teilenummer (MPN)
- 2401280216102
ATE 24.0128-0216.1
(240128-02161)
- Außendurchmesser [mm]: 304,0
- Innendurchmesser [mm]: 145,5
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 428216
