ATE Originale Bremsscheibe (24012802341) für Hyundai, Kia
137,94 €
(inkl. MwSt.)
114,00 € Steuerexzl.
Teilenummer:
ATE 24.0128-0234.1
(240128-02341)
- Außendurchmesser [mm]: 300,0
- Innendurchmesser [mm]: 141,5
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 428234
Logistische Informationen:
- Ean-Code: 4006633341684
- Gewicht: 8.31kg
Specification of ATE 24.0128-0234.1 / 240128-02341 / 24012802341:
| OE Number | Reference info |
| HYUNDAI 51712-2L500 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 51712-A6600 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 51712-1M500 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-2L500 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-1M500 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-A6600 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 16" | 2007-10 - 2011-11 | 77 | 105 | 1396 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 16" | 2007-10 - 2011-11 | 80 | 109 | 1396 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 16" | 2007-10 - 2011-11 | 85 | 116 | 1591 | Hatchback |
| HYUNDAI i30 (FD) Fitting Position Front Axle Brake Size 16" | 2009-01 - 2011-11 | 80 | 109 | 1396 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 16" | 2007-10 - 2011-11 | 90 | 122 | 1591 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 16" | 2008-02 - 2011-11 | 93 | 126 | 1591 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 16" | 2007-10 - 2011-11 | 105 | 143 | 1975 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 16" | 2007-10 - 2011-11 | 66 | 90 | 1582 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 16" | 2007-10 - 2011-11 | 85 | 116 | 1582 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 16" | 2010-01 - 2011-11 | 94 | 128 | 1582 | Hatchback |
| HYUNDAI i30 (FD) Construction Year from 200802 Construction Year to 201110 Fitting Position Front Axle Brake Size 16" | 2007-10 - 2011-11 | 100 | 136 | 1991 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Front Axle Brake Size 16" | 2007-10 - 2011-11 | 103 | 140 | 1991 | Hatchback |
| HYUNDAI i30 Estate (FD) Construction Year from 200802 Fitting Position Front Axle Brake Size 16" | 2007-10 - 2012-06 | 77 | 105 | 1396 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 16" | 2009-11 - 2012-06 | 80 | 109 | 1396 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 16" | 2008-02 - 2012-06 | 85 | 116 | 1591 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 16" | 2009-11 - 2012-06 | 80 | 109 | 1396 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 16" | 2008-02 - 2012-06 | 90 | 122 | 1591 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 16" | 2008-02 - 2012-06 | 93 | 126 | 1591 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 16" | 2008-02 - 2012-06 | 105 | 143 | 1975 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 16" | 2008-02 - 2012-06 | 66 | 90 | 1582 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 16" | 2008-02 - 2012-06 | 85 | 116 | 1582 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 16" | 2010-01 - 2012-06 | 94 | 128 | 1582 | Estate |
| HYUNDAI i30 Estate (FD) Construction Year from 201001 Fitting Position Front Axle Brake Size 16" | 2008-10 - 2012-06 | 100 | 136 | 1991 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Front Axle Brake Size 16" | 2008-02 - 2012-06 | 103 | 140 | 1991 | Estate |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 16" | 2011-12 - 2015-12 | 73 | 99 | 1396 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 16" | 2013-01 - 2014-12 | 73 | 99 | 1396 | Hatchback |
| HYUNDAI i30 (GD) Construction Year to 201501 Fitting Position Front Axle Brake Size 16" | 2014-12 - 2016-12 | 74 | 101 | 1368 | Hatchback |
| HYUNDAI i30 (GD) Construction Year from 201502 Fitting Position Front Axle | 2014-12 - 2016-12 | 74 | 101 | 1368 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 16" | 2012-01 - 2016-12 | 88 | 120 | 1591 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 16" | 2011-12 - 2015-12 | 95 | 129 | 1591 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 16" | 2011-12 - 2016-12 | 99 | 135 | 1591 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 16" | 2011-12 - 2016-12 | 66 | 90 | 1396 | Hatchback |
| HYUNDAI i30 (GD) Construction Year from 201206 Fitting Position Front Axle Brake Size 16" | 2011-12 - 2016-12 | 81 | 110 | 1582 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 16" | 2011-12 - 2015-12 | 94 | 128 | 1582 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 16" | 2011-11 - 2016-12 | 100 | 136 | 1582 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 16" | 2015-01 - | 137 | 186 | 1591 | Hatchback |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 16" | 2012-06 - 2015-12 | 73 | 99 | 1396 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 16" | 2014-01 - 2017-05 | 74 | 101 | 1368 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 16" | 2012-06 - | 88 | 120 | 1591 | Estate |
| HYUNDAI i30 Estate (GD) Construction Year to 201206 Fitting Position Front Axle Brake Size 16" | 2012-06 - | 88 | 120 | 1591 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 16" | 2012-06 - 2015-12 | 95 | 129 | 1591 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 16" | 2012-06 - 2017-05 | 66 | 90 | 1396 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 16" | 2012-06 - | 99 | 135 | 1591 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 16" | 2012-06 - | 81 | 110 | 1582 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 16" | 2012-06 - 2015-12 | 94 | 128 | 1582 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 16" | 2012-06 - | 100 | 136 | 1582 | Estate |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 16" | 2013-05 - 2014-12 | 73 | 99 | 1396 | Coupe |
| HYUNDAI i30 Coupe Construction Year to 201501 Fitting Position Front Axle Brake Size 16" | 2014-12 - | 74 | 101 | 1368 | Coupe |
| HYUNDAI i30 Coupe Construction Year from 201502 Fitting Position Front Axle | 2014-12 - | 74 | 101 | 1368 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 16" | 2013-05 - | 88 | 120 | 1591 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 16" | 2015-01 - | 137 | 186 | 1591 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 16" | 2013-05 - | 99 | 135 | 1591 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 16" | 2013-05 - 2017-05 | 66 | 90 | 1396 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 16" | 2013-05 - | 81 | 110 | 1582 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 16" | 2013-05 - | 94 | 128 | 1582 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 16" | 2014-12 - | 100 | 136 | 1582 | Coupe |
| HYUNDAI VELOSTER (FS) Fitting Position Front Axle | 2012-10 - 2017-12 | 137 | 186 | 1591 | Coupe |
| HYUNDAI i30 Hatchback Van (GDE) Fitting Position Front Axle Brake Size 16" | 2015-05 - 2017-05 | 74 | 101 | 1368 | Hatchback Van |
| HYUNDAI i30 Kombi Van (GDE, GD) Fitting Position Front Axle Brake Size 16" | 2015-05 - 2017-05 | 74 | 101 | 1368 | Estate Van |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2015-07 - 2018-07 | 74 | 100 | 998 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2015-07 - 2018-07 | 88 | 120 | 998 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2012-05 - 2018-07 | 66 | 90 | 1396 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2012-05 - 2018-07 | 73 | 100 | 1396 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2015-04 - 2018-07 | 74 | 101 | 1368 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2013-01 - 2018-07 | 95 | 130 | 1591 | Hatchback |
| KIA CEE'D (JD) Construction Year from 201506 Country Specific Design Russia Fitting Position Front Axle Brake Size 16" | 2013-01 - 2018-07 | 95 | 130 | 1591 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2012-05 - 2018-07 | 99 | 135 | 1591 | Hatchback |
| KIA CEE'D (JD) Construction Year from 201307 Fitting Position Front Axle Brake Size 16" | 2013-06 - 2018-07 | 150 | 204 | 1591 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2012-05 - 2018-07 | 66 | 90 | 1396 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2012-05 - 2018-07 | 81 | 110 | 1582 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2012-05 - 2018-07 | 94 | 128 | 1582 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2015-07 - 2018-07 | 100 | 136 | 1582 | Hatchback |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 16" | 2015-07 - 2018-07 | 74 | 100 | 998 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 16" | 2015-07 - 2018-07 | 88 | 120 | 998 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 16" | 2012-09 - 2015-07 | 73 | 100 | 1396 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 16" | 2015-04 - 2018-07 | 74 | 101 | 1368 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 16" | 2014-11 - 2018-07 | 95 | 130 | 1591 | Estate |
| KIA CEE'D Sportswagon (JD) Construction Year from 201506 Country Specific Design Russia Fitting Position Front Axle Brake Size 16" | 2014-11 - 2018-07 | 95 | 130 | 1591 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 16" | 2012-09 - 2018-07 | 99 | 135 | 1591 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 16" | 2012-09 - 2018-07 | 66 | 90 | 1396 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 16" | 2013-03 - 2018-07 | 81 | 110 | 1582 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 16" | 2012-09 - 2015-07 | 94 | 128 | 1582 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 16" | 2015-07 - 2018-07 | 100 | 136 | 1582 | Estate |
| KIA CERATO III Saloon (YD) Fitting Position Front Axle Brake Size 16" | 2016-07 - 2018-06 | 95 | 129 | 1591 | Saloon |
| KIA CERATO III Saloon (YD) Fitting Position Front Axle Brake Size 16" | 2016-03 - 2018-06 | 112 | 152 | 1999 | Saloon |
| KIA CERATO III Saloon (YD) Fitting Position Front Axle Brake Size 16" | 2016-08 - 2018-06 | 100 | 136 | 1582 | Saloon |
| KIA CERATO KOUP II (TD) Fitting Position Front Axle Brake Size 16" | 2013-09 - 2014-02 | 150 | 204 | 1591 | Coupe |
| KIA CERATO KOUP III (YD) Fitting Position Front Axle Brake Size 16" | 2013-12 - | 150 | 204 | 1591 | Coupe |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2015-07 - 2018-07 | 74 | 100 | 998 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2015-07 - 2018-07 | 88 | 120 | 998 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2015-04 - 2018-07 | 74 | 101 | 1368 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2013-03 - 2015-07 | 73 | 100 | 1396 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2013-03 - 2018-07 | 99 | 135 | 1591 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2013-06 - 2018-07 | 150 | 204 | 1591 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2013-03 - 2018-07 | 66 | 90 | 1396 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2013-03 - 2018-07 | 81 | 110 | 1582 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2013-03 - 2015-07 | 94 | 128 | 1582 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 16" | 2015-07 - 2018-07 | 100 | 136 | 1582 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle | 2014-09 - 2018-11 | 81 | 110 | CC | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 16" | 2014-02 - 2018-12 | 91 | 124 | 1591 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 16" | 2016-07 - 2018-12 | 95 | 129 | 1591 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 16" | 2014-02 - 2018-12 | 97 | 132 | 1591 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 16" | 2016-11 - 2018-12 | 150 | 204 | 1591 | Hatchback |
| KIA SOUL II (PS) Construction Year from 201404 Fitting Position Front Axle Brake Size 16" | 2014-02 - 2018-12 | 113 | 154 | 1999 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 16" | 2014-02 - 2018-12 | 94 | 126 | 1582 | Hatchback |
| KIA SOUL II (PS) Fitting Position Front Axle Brake Size 16" | 2015-04 - 2018-12 | 100 | 136 | 1582 | Hatchback |
| KIA CEE'D Combi Van (JD) Fitting Position Front Axle Brake Size 16" | 2015-04 - 2018-07 | 88 | 120 | 998 | Estate Van |
| KIA CEE'D Combi Van (JD) Fitting Position Front Axle Brake Size 16" | 2015-04 - 2018-07 | 73 | 100 | 1396 | Estate Van |
| KIA CEE'D Combi Van (JD) Fitting Position Front Axle Brake Size 16" | 2015-04 - 2018-07 | 66 | 90 | 1396 | Estate Van |
| KIA PRO CEE'D Hatchback Van (JD) Fitting Position Front Axle Brake Size 16" | 2015-05 - 2018-07 | 88 | 120 | 998 | Hatchback Van |
| KIA PRO CEE'D Hatchback Van (JD) Fitting Position Front Axle Brake Size 16" | 2015-05 - 2018-07 | 74 | 101 | 1368 | Hatchback Van |
| KIA PRO CEE'D Hatchback Van (JD) Fitting Position Front Axle Brake Size 16" | 2012-05 - 2018-07 | 73 | 99 | 1396 | Hatchback Van |
| KIA PRO CEE'D Hatchback Van (JD) Fitting Position Front Axle Brake Size 16" | 2015-05 - 2018-07 | 100 | 136 | 1582 | Hatchback Van |

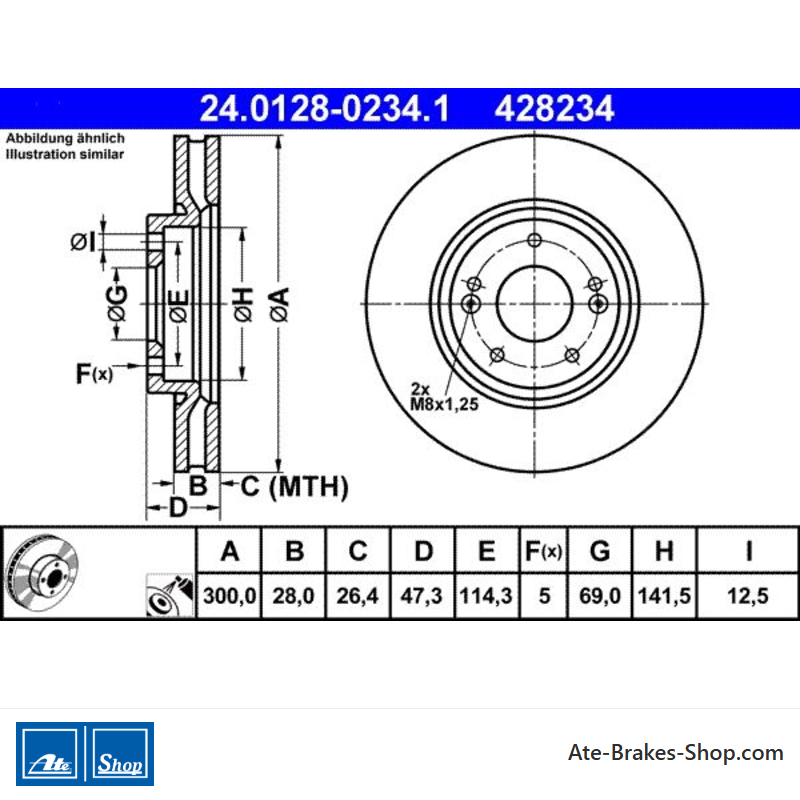

24.0128-0234.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Hyundai
Kia - Handelsnummer
- 428234
- Herkunftsland
- Deutschland
- Höhe
- 47,3
- Außendurchmesser [mm]
- 300,0
- Bremsscheibendicke [mm]
- 28,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 69,0
- Innendurchmesser [mm]
- 141,5
- Bohrdurchmesser [mm]
- 12,5
- Mindestdicke [mm]
- 26,4
Spezifische Referenzen
- ean13
- 4006633341684
- Hersteller-Teilenummer (MPN)
- 2401280234102
ATE 24.0128-0234.1
(240128-02341)
- Außendurchmesser [mm]: 300,0
- Innendurchmesser [mm]: 141,5
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 428234
