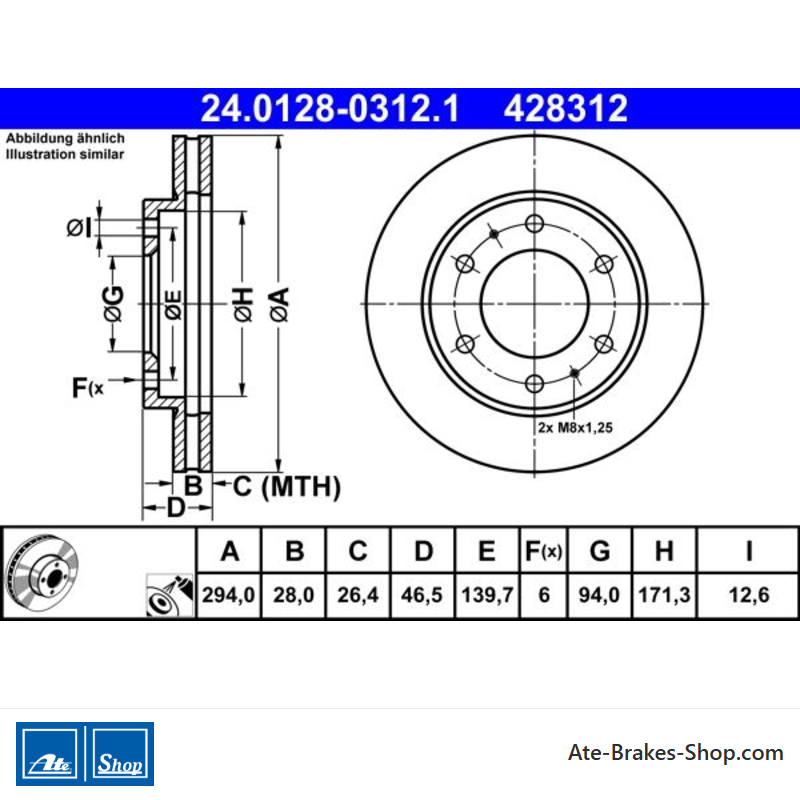

ATE Originale zweiteilige Bremsscheibe (24012803121) für Fiat, Mitsubishi
159,72 €
(inkl. MwSt.)
132,00 € Steuerexzl.
Teilenummer:
ATE 24.0128-0312.1
(240128-03121)
- Außendurchmesser [mm]: 294,0
- Innendurchmesser [mm]: 171,3
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 6
- 2 Teile Bremsscheiben
- Handelsnummer: 428312
Logistische Informationen:
- Ean-Code: 4006633461504
- Gewicht: 14.43kg
Specification of ATE 24.0128-0312.1 / 240128-03121 / 24012803121:
| OE Number | Reference info |
| FIAT 6000609712 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MITSUBISHI MN102276 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MITSUBISHI 4615A201 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MITSUBISHI 4615A147 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MITSUBISHI MZ690858 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT FULLBACK Pickup (502_, 503_) Fitting Position Front Axle Suspension for vehicles without height-adjustable suspension | 2016-04 - | 113 | 154 | 2442 | Pickup |
| FIAT FULLBACK Pickup (502_, 503_) Fitting Position Front Axle Suspension for vehicles without height-adjustable suspension | 2016-04 - | 113 | 154 | 2442 | Pickup |
| FIAT FULLBACK Pickup (502_, 503_) Fitting Position Front Axle Suspension for vehicles without height-adjustable suspension | 2016-04 - | 133 | 181 | 2442 | Pickup |
| MITSUBISHI L200 / TRITON (KA_T, KB_T) Fitting Position Front Axle | 2011-08 - 2015-12 | 137 | 186 | 3497 | Pickup |
| MITSUBISHI L200 / TRITON (KA_T, KB_T) Fitting Position Front Axle | 2010-04 - 2015-12 | 94 | 128 | 2477 | Pickup |
| MITSUBISHI L200 / TRITON (KA_T, KB_T) Fitting Position Front Axle | 2007-04 - 2015-12 | 98 | 133 | 2477 | Pickup |
| MITSUBISHI L200 / TRITON (KA_T, KB_T) Construction Year from 200601 Fitting Position Front Axle | 2005-11 - 2015-12 | 100 | 136 | 2477 | Pickup |
| MITSUBISHI L200 / TRITON (KA_T, KB_T) Construction Year from 200601 Fitting Position Front Axle | 2005-11 - 2015-12 | 100 | 136 | 2477 | Pickup |
| MITSUBISHI L200 / TRITON (KA_T, KB_T) Suspension for vehicles with increased ground clearance Fitting Position Front Axle | 2007-08 - 2015-12 | 123 | 167 | 2477 | Pickup |
| MITSUBISHI L200 / TRITON (KA_T, KB_T) Fitting Position Front Axle | 2007-10 - 2015-12 | 123 | 167 | 2477 | Pickup |
| MITSUBISHI L200 / TRITON (KA_T, KB_T) Construction Year from 201303 Suspension for vehicles with increased ground clearance Fitting Position Front Axle | 2010-01 - 2015-12 | 131 | 178 | 2477 | Pickup |
| MITSUBISHI L200 / TRITON (KA_T, KB_T) Fitting Position Front Axle | 2010-04 - 2015-12 | 131 | 178 | 2477 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Fitting Position Front Axle | 2019-07 - | 110 | 150 | 2268 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Fitting Position Front Axle | 2019-07 - | 110 | 150 | 2268 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Fitting Position Front Axle | 2015-09 - | 113 | 154 | 2442 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Fitting Position Front Axle | 2015-09 - | 113 | 154 | 2442 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Fitting Position Front Axle | 2014-11 - | 133 | 181 | 2442 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Fitting Position Front Axle | 2014-11 - | 100 | 136 | 2477 | Pickup |
| MITSUBISHI PAJERO SPORT II (KH_, KG_) Construction Year from 200911 Fitting Position Front Axle not for country specific design Europe | 2008-09 - | 162 | 220 | 2998 | Closed Off-Road Vehicle |
| MITSUBISHI L200 / TRITON Platform/Chassis (KA_T, KB_T) Fitting Position Front Axle | 2007-08 - 2015-12 | 94 | 128 | 2477 | Platform/Chassis |
| MITSUBISHI L200 / TRITON Platform/Chassis (KA_T, KB_T) Construction Year from 201004 Fitting Position Front Axle | 2009-09 - 2015-12 | 131 | 178 | 2477 | Platform/Chassis |
24.0128-0312.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
Mitsubishi - Handelsnummer
- 428312
- Herkunftsland
- Deutschland
- Höhe
- 46,5
- Außendurchmesser [mm]
- 294,0
- Bremsscheibendicke [mm]
- 28,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 6
- Bolzenlochdurchmesser [mm]
- 139,7
- Zentrierungsdurchmesser [mm]
- 94,0
- Innendurchmesser [mm]
- 171,3
- Bohrdurchmesser [mm]
- 12,6
- Mindestdicke [mm]
- 26,4
Spezifische Referenzen
- ean13
- 4006633461504
- Hersteller-Teilenummer (MPN)
- 2401280312102
ATE 24.0128-0312.1
(240128-03121)
- Außendurchmesser [mm]: 294,0
- Innendurchmesser [mm]: 171,3
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 6
- 2 Teile Bremsscheiben
- Handelsnummer: 428312
