ATE Originale Bremsscheibe (24013002691) für MAN, Volkswagen (VW)
166,98 €
(inkl. MwSt.)
138,00 € Steuerexzl.
Teilenummer:
ATE 24.0130-0269.1
(240130-02691)
- Außendurchmesser [mm]: 325,0
- Innendurchmesser [mm]: 172,0
- Bremsscheibendicke [mm]: 30,0
- Anzahl der Bolzenlöcher: 6
- Handelsnummer: 430269
Logistische Informationen:
- Ean-Code: 4006633504546
- Gewicht: 11.95kg
Specification of ATE 24.0130-0269.1 / 240130-02691 / 24013002691:
| OE Number | Reference info |
| MAN 65508030005 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 2N0 615 601 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 2N0615601B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LC | 2017-02 - 2024-06 | 75 | 102 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LC Tyres for dual tyres | 2017-08 - 2021-12 | 90 | 122 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LC | 2017-02 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LC Tyres for dual tyres | 2017-10 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LC | 2017-04 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LC | 2022-11 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LC Tyres for dual tyres | 2023-03 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LC | 2022-11 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LC | 2017-02 - | 130 | 177 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LC Tyres for dual tyres | 2017-05 - 2024-06 | 130 | 177 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LC | 2017-03 - | 130 | 177 | 1968 | Van |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LC | 2016-11 - 2024-06 | 75 | 102 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LC Tyres for dual tyres | 2017-08 - 2021-12 | 90 | 122 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LC | 2016-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LC Tyres for dual tyres | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LC | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LC | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LC Tyres for dual tyres | 2023-03 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LC | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LC | 2016-11 - | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LC Tyres for dual tyres | 2017-07 - 2024-06 | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LC | 2017-11 - | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LC | 2017-02 - 2024-06 | 75 | 102 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LC Tyres for dual tyres | 2019-01 - 2021-12 | 90 | 122 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LC | 2017-02 - | 103 | 140 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LC | 2017-02 - | 103 | 140 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LC | 2017-02 - | 130 | 177 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LC Tyres for dual tyres | 2017-02 - 2024-06 | 130 | 177 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LC | 2017-02 - | 130 | 177 | 1968 | Bus |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2016-09 - 2024-06 | 75 | 102 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2017-05 - 2024-06 | 80 | 109 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2017-08 - 2021-12 | 90 | 122 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2016-09 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2017-10 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2017-04 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2023-03 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2016-09 - | 130 | 177 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2017-05 - 2024-06 | 130 | 177 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LC Fitting Position Rear Axle | 2017-03 - | 130 | 177 | 1968 | Van |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2016-11 - 2024-06 | 75 | 102 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2017-08 - 2021-12 | 90 | 122 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2016-11 - 2024-06 | 80 | 109 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2016-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2023-03 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2016-11 - | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2017-07 - 2024-06 | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LC Fitting Position Rear Axle | 2017-11 - | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LC Fitting Position Rear Axle | 2016-10 - 2024-06 | 75 | 102 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LC Fitting Position Rear Axle | 2016-09 - | 103 | 140 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LC Fitting Position Rear Axle | 2017-04 - | 103 | 140 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LC Fitting Position Rear Axle | 2016-09 - | 130 | 177 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LC Fitting Position Rear Axle | 2017-03 - | 130 | 177 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LC Fitting Position Rear Axle | 2019-04 - | 103 | 140 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LC Fitting Position Rear Axle | 2019-04 - | 103 | 140 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LC Fitting Position Rear Axle | 2024-10 - | 120 | 163 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LC Fitting Position Rear Axle | 2024-10 - | 120 | 163 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LC Fitting Position Rear Axle | 2019-04 - | 130 | 177 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LC Fitting Position Rear Axle | 2019-04 - | 130 | 177 | 1968 | Bus |

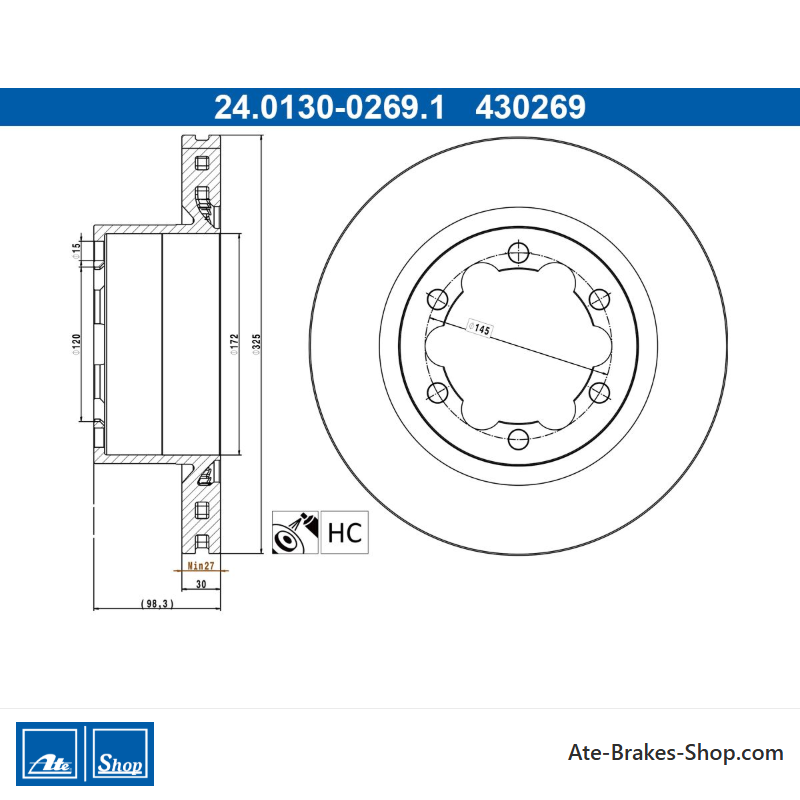

24.0130-0269.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- MANN
Volkswagen (VW) - Handelsnummer
- 430269
- Herkunftsland
- China
- Höhe
- 98,3
- Außendurchmesser [mm]
- 325,0
- Bremsscheibendicke [mm]
- 30,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Legierte/Hochkohlenstoff-Legierungen
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 6
- Bolzenlochdurchmesser [mm]
- 145,0
- Zentrierungsdurchmesser [mm]
- 120,0
- Innendurchmesser [mm]
- 172,0
- Bohrdurchmesser [mm]
- 15,0
- Mindestdicke [mm]
- 27,0
Spezifische Referenzen
- ean13
- 4006633504546
- Hersteller-Teilenummer (MPN)
- 2401300269102
ATE 24.0130-0269.1
(240130-02691)
- Außendurchmesser [mm]: 325,0
- Innendurchmesser [mm]: 172,0
- Bremsscheibendicke [mm]: 30,0
- Anzahl der Bolzenlöcher: 6
- Handelsnummer: 430269
