ATE Originalbremsscheibe (24013201261) für Citroën, Fiat, Lancia, Peugeot
156,09 €
(inkl. MwSt.)
129,00 € Steuerexzl.
Teilenummer:
ATE 24.0132-0126.1
(240132-01261)
- Außendurchmesser [mm]: 310,0
- Innendurchmesser [mm]: 138,0
- Bremsscheibendicke [mm]: 32,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 432126
Logistische Informationen:
- Ean-Code: 4006633255271
- Gewicht: 9.81kg
Specification of ATE 24.0132-0126.1 / 240132-01261 / 24013201261:
| OE Number | Reference info |
| CITROËN 4246 Z8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246Z8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 79 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424979 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 A8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249A8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 F2 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249F2 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9464640587 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 1355376080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 Z7 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246Z7 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 A8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249A8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Front Axle | 2002-07 - | 150 | 204 | 2946 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Front Axle | 2006-03 - | 120 | 163 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Front Axle | 2007-06 - | 120 | 163 | 2179 | MPV |
| CITROËN C8 (EA_, EB_) Fitting Position Front Axle | 2006-06 - 2012-12 | 125 | 170 | 2179 | MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Front Axle | 2003-11 - 2007-10 | 150 | 204 | 2946 | Box Body/MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Front Axle | 2002-08 - 2011-06 | 150 | 204 | 2946 | MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Front Axle | 2008-03 - 2011-06 | 125 | 170 | 2179 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Front Axle | 2002-09 - 2010-11 | 150 | 204 | 2946 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Front Axle | 2006-04 - 2010-11 | 120 | 163 | 2179 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Front Axle | 2008-03 - 2010-11 | 125 | 170 | 2179 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Front Axle | 2002-06 - | 150 | 204 | 2946 | MPV |
| PEUGEOT 807 (EB_) Construction Year from 200710 Construction Year to 201406 Fitting Position Front Axle | 2006-06 - | 120 | 163 | 2179 | MPV |
| PEUGEOT 807 (EB_) Construction Year from 200710 Fitting Position Front Axle | 2006-06 - 2010-06 | 125 | 170 | 2179 | MPV |

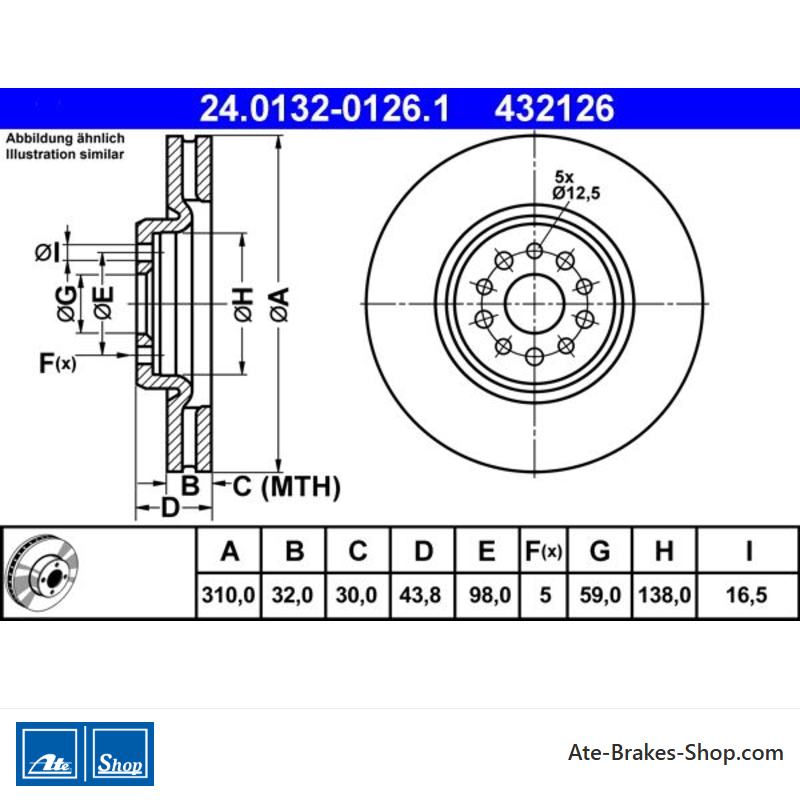

24.0132-0126.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Citroën
Fiat
Lancia
Peugeot - Handelsnummer
- 432126
- Herkunftsland
- Deutschland
- Höhe
- 43,8
- Außendurchmesser [mm]
- 310,0
- Bremsscheibendicke [mm]
- 32,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 98,0
- Zentrierungsdurchmesser [mm]
- 59,0
- Innendurchmesser [mm]
- 138,0
- Bohrdurchmesser [mm]
- 16,5
- Mindestdicke [mm]
- 30,0
Spezifische Referenzen
- ean13
- 4006633255271
- Hersteller-Teilenummer (MPN)
- 2401320126102
ATE 24.0132-0126.1
(240132-01261)
- Außendurchmesser [mm]: 310,0
- Innendurchmesser [mm]: 138,0
- Bremsscheibendicke [mm]: 32,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 432126
