ATE Original 2 Pieces Brake Drum (24021800421) for Suzuki
€123.42
(tax incl.)
€102.00 tax excl.
Part-number:
ATE 24.0218-0042.1
(240218-00421)

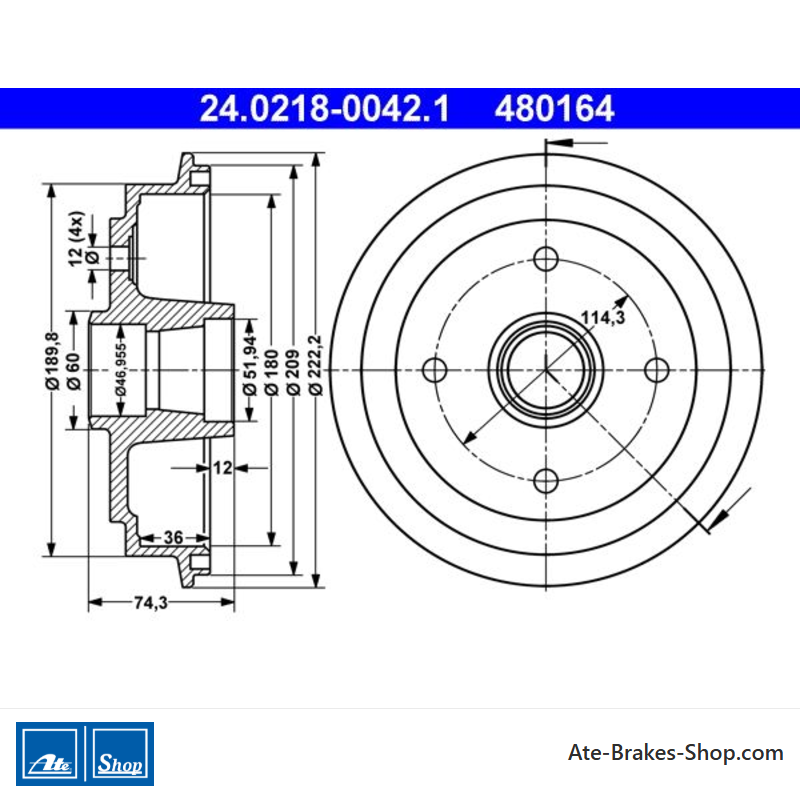

- Outer diameter [mm]: 222,2
- Inner diameter [mm]: 180,0
- Support plate diameter [mm]: 52,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480164
- Ean Code: 4006633125857
- Weight: 9.47kg
Specification of ATE 24.0218-0042.1 / 240218-00421 / 24021800421:
| OE Number | Reference info |
| SUZUKI 43511-62B00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT II Saloon (AH, AJ) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1989-09 - 1994-12 | 52 | 71 | 1298 | Saloon |
| SUZUKI SWIFT II Saloon (AH, AJ) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1989-09 - 1994-12 | 52 | 71 | 1298 | Saloon |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199208 Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1989-03 - 2001-05 | 37 | 50 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199208 Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1989-03 - 2001-05 | 37 | 50 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Construction Year to 200412 Fitting Position Rear Axle | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1989-03 - 1997-12 | 52 | 71 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1989-03 - 1997-12 | 52 | 71 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Fitting Position Rear Axle Number of Doors 2 | 1989-03 - 2001-05 | 50 | 68 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Fitting Position Rear Axle Number of Doors 3 | 1989-03 - 2001-05 | 50 | 68 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Fitting Position Rear Axle Number of Doors 5 | 1989-03 - 2001-05 | 50 | 68 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Rear Axle Number of Doors 2 | 2001-06 - 2003-12 | 63 | 86 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Rear Axle Number of Doors 3 | 2001-06 - 2003-12 | 63 | 86 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Rear Axle Number of Doors 5 | 2001-06 - 2003-12 | 63 | 86 | 1298 | Hatchback |
24.0218-0042.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 480164
- Country Of Origin
- Italy
- Additional Info
- without wheel bearing
- Height
- 74,3
- Outer Diameter [mm]
- 222,2
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 114,3
- Support Plate Diameter [mm]
- 52,0
- Inner Diameter [mm]
- 180,0
- Bore Diameter [mm]
- 12,0
- Max. Reboring Dimension [mm]
- 182,0
- Brake Drum Inner Height [mm]
- 36,0
- Brake Drum Inner Diameter [mm]
- 47,0
Specific References
- EAN13
- 4006633125857
- MPN
- 2402180042102
ATE 24.0218-0042.1
(240218-00421)
- Outer diameter [mm]: 222,2
- Inner diameter [mm]: 180,0
- Support plate diameter [mm]: 52,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480164
