ATE Originale zweiteilige Bremstrommel (24021800421) für Suzuki
123,42 €
(inkl. MwSt.)
102,00 € Steuerexzl.
Teilenummer:
ATE 24.0218-0042.1
(240218-00421)
- Außendurchmesser [mm]: 222,2
- Innendurchmesser [mm]: 180,0
- Trägerplattendurchmesser [mm]: 52,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480164
- Ean-Code: 4006633125857
- Gewicht: 9.47kg
Specification of ATE 24.0218-0042.1 / 240218-00421 / 24021800421:
| OE Number | Reference info |
| SUZUKI 43511-62B00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT II Saloon (AH, AJ) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1989-09 - 1994-12 | 52 | 71 | 1298 | Saloon |
| SUZUKI SWIFT II Saloon (AH, AJ) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1989-09 - 1994-12 | 52 | 71 | 1298 | Saloon |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199208 Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1989-03 - 2001-05 | 37 | 50 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199208 Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1989-03 - 2001-05 | 37 | 50 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Construction Year to 200412 Fitting Position Rear Axle | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1989-03 - 1997-12 | 52 | 71 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1989-03 - 1997-12 | 52 | 71 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Fitting Position Rear Axle Number of Doors 2 | 1989-03 - 2001-05 | 50 | 68 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Fitting Position Rear Axle Number of Doors 3 | 1989-03 - 2001-05 | 50 | 68 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Fitting Position Rear Axle Number of Doors 5 | 1989-03 - 2001-05 | 50 | 68 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Rear Axle Number of Doors 2 | 2001-06 - 2003-12 | 63 | 86 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Rear Axle Number of Doors 3 | 2001-06 - 2003-12 | 63 | 86 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Rear Axle Number of Doors 5 | 2001-06 - 2003-12 | 63 | 86 | 1298 | Hatchback |
24.0218-0042.1

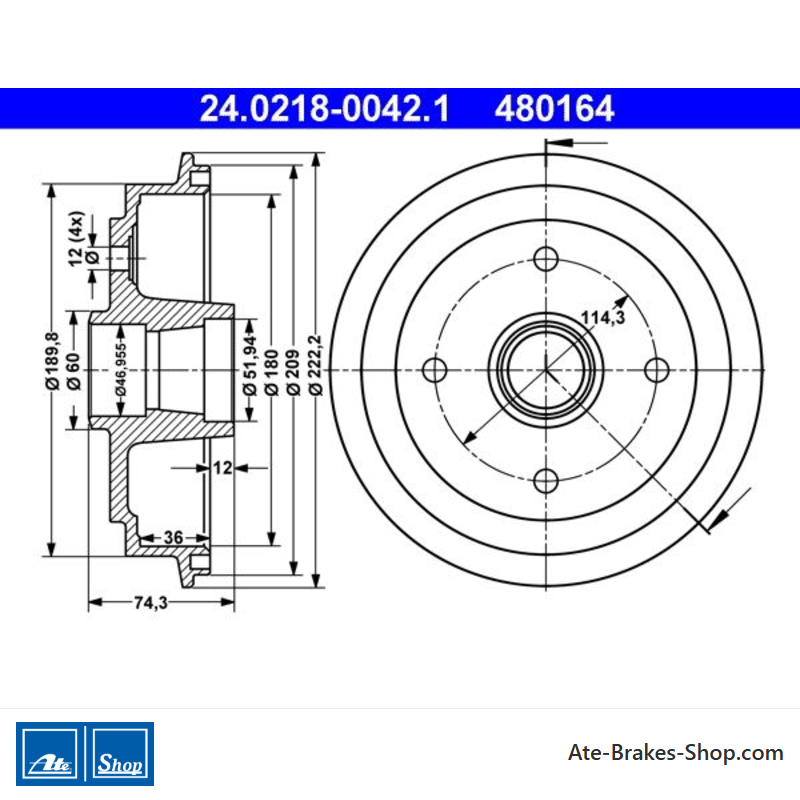

Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Suzuki
- Handelsnummer
- 480164
- Herkunftsland
- Italien
- Zusätzliche Informationen
- ohne Radlager
- Höhe
- 74,3
- Außendurchmesser [mm]
- 222,2
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 114,3
- Trägerplattendurchmesser [mm]
- 52,0
- Innendurchmesser [mm]
- 180,0
- Bohrdurchmesser [mm]
- 12,0
- Max. Bohrende Dimension [mm]
- 182,0
- Innenhöhe der Bremstrommel [mm]
- 36,0
- Innendurchmesser der Bremstrommel [mm]
- 47,0
Spezifische Referenzen
- ean13
- 4006633125857
- Hersteller-Teilenummer (MPN)
- 2402180042102
ATE 24.0218-0042.1
(240218-00421)
- Außendurchmesser [mm]: 222,2
- Innendurchmesser [mm]: 180,0
- Trägerplattendurchmesser [mm]: 52,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480164
