ATE Tambor de freno original de 2 piezas (24021800421) para Suzuki
123,42 €
(impuestos inc.)
102,00 € fiscales excl.
Número de parte:
ATE 24.0218-0042.1
(240218-00421)

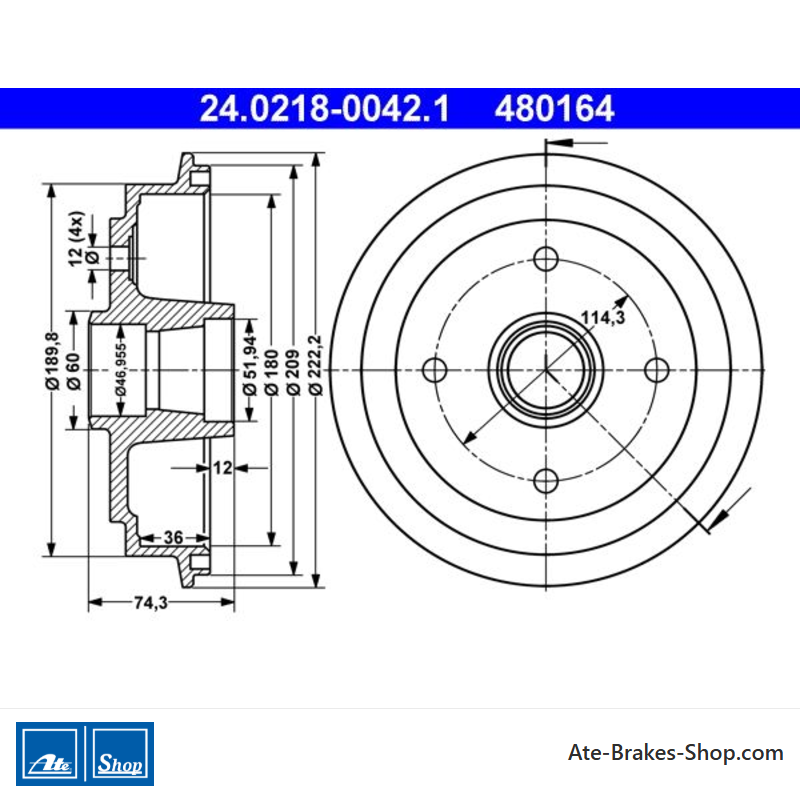

- Diámetro exterior [mm]: 222,2
- Diámetro interior [mm]: 180,0
- Diámetro de la placa de soporte [mm]: 52,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480164
- Código Ean: 4006633125857
- Peso: 9.47kg
Specification of ATE 24.0218-0042.1 / 240218-00421 / 24021800421:
| OE Number | Reference info |
| SUZUKI 43511-62B00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT II Saloon (AH, AJ) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1989-09 - 1994-12 | 52 | 71 | 1298 | Saloon |
| SUZUKI SWIFT II Saloon (AH, AJ) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1989-09 - 1994-12 | 52 | 71 | 1298 | Saloon |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199208 Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1989-03 - 2001-05 | 37 | 50 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199208 Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1989-03 - 2001-05 | 37 | 50 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Construction Year to 200412 Fitting Position Rear Axle | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year to 199610 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 3 | 1989-03 - 1997-12 | 52 | 71 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle Number of Doors 5 | 1989-03 - 1997-12 | 52 | 71 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Fitting Position Rear Axle Number of Doors 2 | 1989-03 - 2001-05 | 50 | 68 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Fitting Position Rear Axle Number of Doors 3 | 1989-03 - 2001-05 | 50 | 68 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Fitting Position Rear Axle Number of Doors 5 | 1989-03 - 2001-05 | 50 | 68 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Rear Axle Number of Doors 2 | 2001-06 - 2003-12 | 63 | 86 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Rear Axle Number of Doors 3 | 2001-06 - 2003-12 | 63 | 86 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Rear Axle Number of Doors 5 | 2001-06 - 2003-12 | 63 | 86 | 1298 | Hatchback |
24.0218-0042.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Suzuki
- Número de Comercio
- 480164
- País de origen
- Italia
- Información adicional
- sin rodamientos de rueda
- Altura
- 74,3
- Diámetro exterior [mm]
- 222,2
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 114,3
- Diámetro de la placa de soporte [mm]
- 52,0
- Diámetro interior [mm]
- 180,0
- Diámetro del diámetro del diámetro [mm]
- 12,0
- Max. Dimensión de perforación [mm]
- 182,0
- Altura interior del tambor de freno [mm]
- 36,0
- Diámetro interior del tambor de freno [mm]
- 47,0
Referencias específicas
- ean13
- 4006633125857
- MPN
- 2402180042102
ATE 24.0218-0042.1
(240218-00421)
- Diámetro exterior [mm]: 222,2
- Diámetro interior [mm]: 180,0
- Diámetro de la placa de soporte [mm]: 52,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480164
