ATE Original 2 Pieces Brake Drum (24022030082) for Ford
€105.27
(tax incl.)
€87.00 tax excl.
Part-number:
ATE 24.0220-3008.2
(240220-30082)

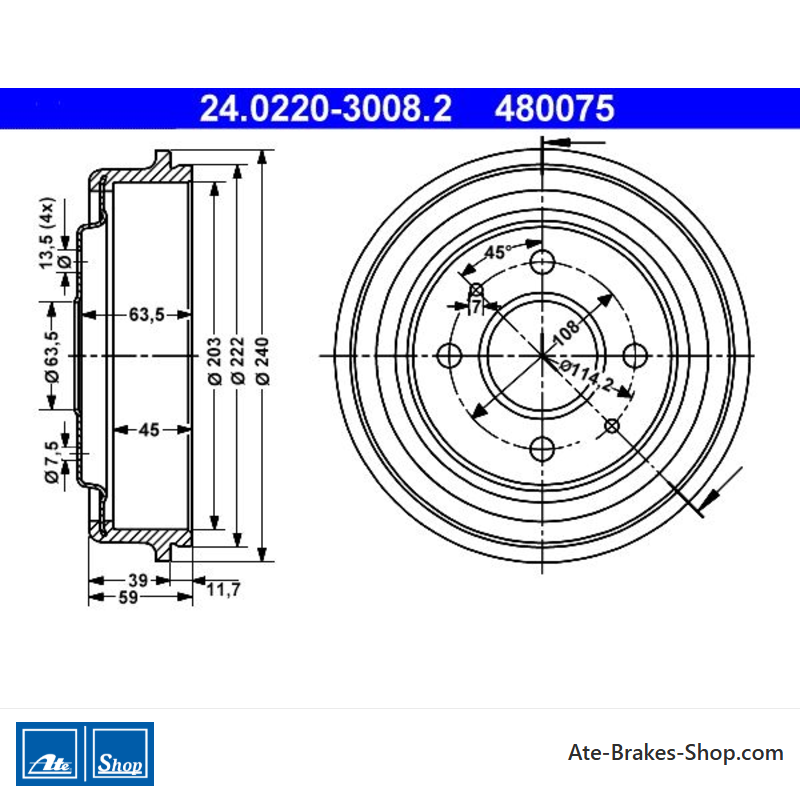

- Outer diameter [mm]: 240,0
- Inner diameter [mm]: 203,0
- Support plate diameter [mm]: 63,5
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480075
- Ean Code: 4006633066822
- Weight: 7.54kg
Specification of ATE 24.0220-3008.2 / 240220-30082 / 24022030082:
| OE Number | Reference info |
| FORD 7098234 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6192490 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD COURIER Pickup Fitting Position Rear Axle | 2001-08 - 2011-12 | 74 | 101 | 1596 | Pickup |
| FORD FIESTA Hatchback Van (FVD) Construction Year from 199109 Fitting Position Rear Axle | 1989-03 - 1995-12 | 44 | 60 | 1753 | Hatchback Van |
| FORD COURIER Box Body/MPV (F3L, F5L) Fitting Position Rear Axle | 1991-09 - 1996-02 | 44 | 60 | 1299 | Box Body/MPV |
| FORD COURIER Box Body/MPV (F3L, F5L) Fitting Position Rear Axle | 1991-09 - 1996-02 | 44 | 60 | 1753 | Box Body/MPV |
| FORD COURIER Box Body/MPV (J5_, J3_) Construction Year to 200203 Fitting Position Rear Axle | 1996-02 - 2003-08 | 44 | 60 | 1299 | Box Body/MPV |
| FORD COURIER Box Body/MPV (J5_, J3_) Construction Year to 200203 Fitting Position Rear Axle | 1996-02 - 2002-04 | 44 | 60 | 1753 | Box Body/MPV |
| FORD FIESTA Hatchback Van (JV_) Construction Year to 200203 Fitting Position Rear Axle | 1998-05 - 2002-04 | 44 | 60 | 1753 | Hatchback Van |
| FORD FIESTA Hatchback Van (JV_) Construction Year to 200203 Fitting Position Rear Axle | 2000-03 - 2003-08 | 55 | 75 | 1753 | Hatchback Van |
24.0220-3008.2
Data sheet
- Article Status
- Orderable
- Car Brand
- Ford
- Trade Number
- 480075
- Country Of Origin
- Italy
- Height
- 59,0
- Outer Diameter [mm]
- 240,0
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 108,0
- Support Plate Diameter [mm]
- 63,5
- Inner Diameter [mm]
- 203,0
- Bore Diameter [mm]
- 13,5
- Max. Reboring Dimension [mm]
- 204,0
- Brake Drum Inner Height [mm]
- 45,0
Specific References
- EAN13
- 4006633066822
- MPN
- 2402203008202
ATE 24.0220-3008.2
(240220-30082)
- Outer diameter [mm]: 240,0
- Inner diameter [mm]: 203,0
- Support plate diameter [mm]: 63,5
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480075
