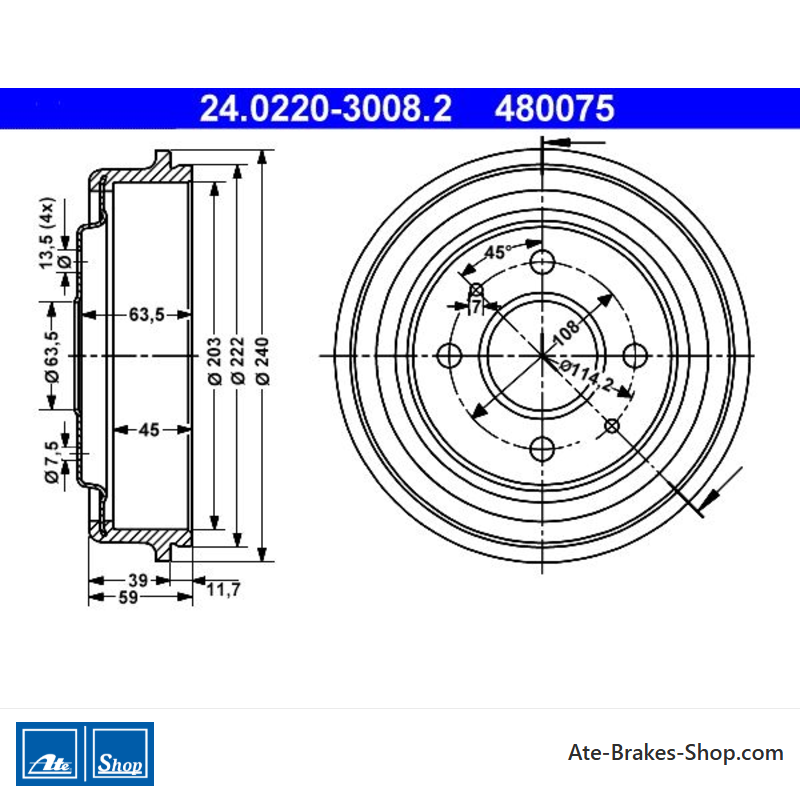

ATE Originele 2-delige remtrommel (24022030082) voor Ford
€ 105,27
(incl. btw)
€ 87,00 belastingexcl.
Onderdeelnummer:
ATE 24.0220-3008.2
(240220-30082)
- Buitendiameter [mm]: 240,0
- Binnendiameter [mm]: 203,0
- Draagplaat diameter [mm]: 63,5
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480075
- Ean Code: 4006633066822
- Gewicht: 7.54kg
Specification of ATE 24.0220-3008.2 / 240220-30082 / 24022030082:
| OE Number | Reference info |
| FORD 7098234 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6192490 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD COURIER Pickup Fitting Position Rear Axle | 2001-08 - 2011-12 | 74 | 101 | 1596 | Pickup |
| FORD FIESTA Hatchback Van (FVD) Construction Year from 199109 Fitting Position Rear Axle | 1989-03 - 1995-12 | 44 | 60 | 1753 | Hatchback Van |
| FORD COURIER Box Body/MPV (F3L, F5L) Fitting Position Rear Axle | 1991-09 - 1996-02 | 44 | 60 | 1299 | Box Body/MPV |
| FORD COURIER Box Body/MPV (F3L, F5L) Fitting Position Rear Axle | 1991-09 - 1996-02 | 44 | 60 | 1753 | Box Body/MPV |
| FORD COURIER Box Body/MPV (J5_, J3_) Construction Year to 200203 Fitting Position Rear Axle | 1996-02 - 2003-08 | 44 | 60 | 1299 | Box Body/MPV |
| FORD COURIER Box Body/MPV (J5_, J3_) Construction Year to 200203 Fitting Position Rear Axle | 1996-02 - 2002-04 | 44 | 60 | 1753 | Box Body/MPV |
| FORD FIESTA Hatchback Van (JV_) Construction Year to 200203 Fitting Position Rear Axle | 1998-05 - 2002-04 | 44 | 60 | 1753 | Hatchback Van |
| FORD FIESTA Hatchback Van (JV_) Construction Year to 200203 Fitting Position Rear Axle | 2000-03 - 2003-08 | 55 | 75 | 1753 | Hatchback Van |
24.0220-3008.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Ford
- Handelsnummer
- 480075
- Land van Herkomst
- Italië
- Hoogte
- 59,0
- Buitendiameter [mm]
- 240,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 108,0
- Diameter van de ondersteuningsplaat [mm]
- 63,5
- Binnendiameter [mm]
- 203,0
- Bordiameter [mm]
- 13,5
- Max. Afborende Dimensie [mm]
- 204,0
- Binnenhoogte van de remtrommel [mm]
- 45,0
Specifieke referenties
- ean13
- 4006633066822
- MPN
- 2402203008202
ATE 24.0220-3008.2
(240220-30082)
- Buitendiameter [mm]: 240,0
- Binnendiameter [mm]: 203,0
- Draagplaat diameter [mm]: 63,5
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480075
