ATE Original 2 Pieces Brake Drum (24022300171) for Volkswagen (VW)
€185.13
(tax incl.)
€153.00 tax excl.
Part-number:
ATE 24.0223-0017.1
(240223-00171)
- Outer diameter [mm]: 270,0
- Inner diameter [mm]: 230,0
- Support plate diameter [mm]: 65,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480135
- Ean Code: 4006633076159
- Weight: 13.91kg
Specification of ATE 24.0223-0017.1 / 240223-00171 / 24022300171:
| OE Number | Reference info |
| VAG 191 609 617 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 191609617A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1986-02 - 1991-07 | 66 | 90 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1987-08 - 1991-10 | 66 | 90 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1988-08 - 1991-07 | 72 | 98 | 1781 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1993-01 - 1997-08 | 66 | 90 | 1781 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1995-08 - 1997-08 | 85 | 115 | 1984 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1995-08 - 1997-12 | 66 | 90 | 1896 | Hatchback |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1994-10 - 1999-04 | 66 | 90 | 1781 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1995-08 - 1999-04 | 85 | 115 | 1984 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1995-07 - 1999-04 | 66 | 90 | 1896 | Estate |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1987-08 - 1988-12 | 66 | 90 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1988-08 - 1991-07 | 72 | 98 | 1781 | Saloon |
24.0223-0017.1

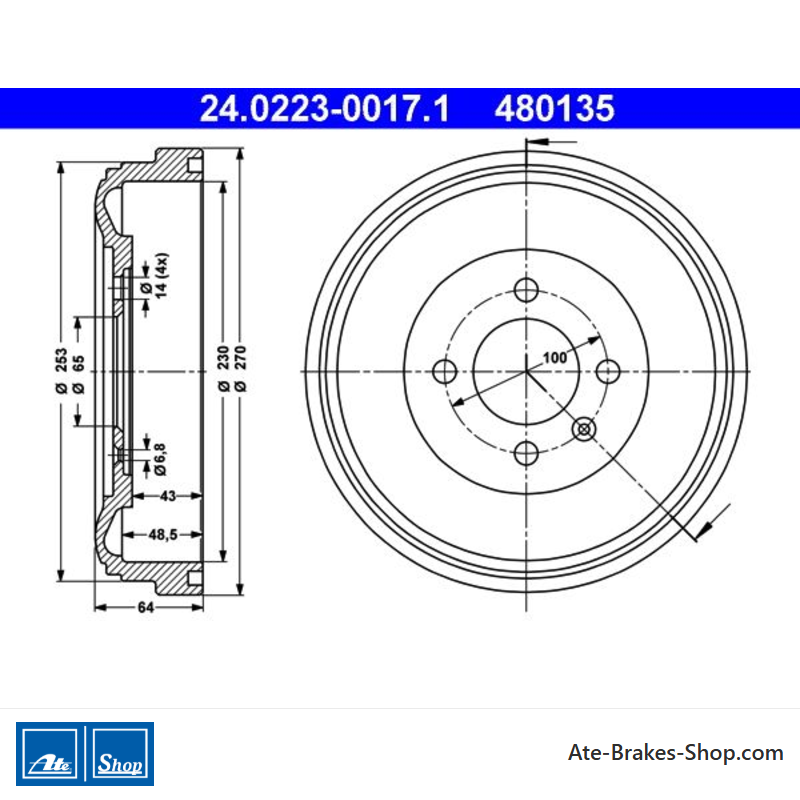

Data sheet
- Article Status
- Orderable
- Car Brand
- Volkswagen (VW)
- Trade Number
- 480135
- Country Of Origin
- China
- Height
- 64,0
- Outer Diameter [mm]
- 270,0
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Support Plate Diameter [mm]
- 65,0
- Inner Diameter [mm]
- 230,0
- Bore Diameter [mm]
- 14,0
- Max. Reboring Dimension [mm]
- 231,5
- Brake Drum Inner Height [mm]
- 48,5
Specific References
- EAN13
- 4006633076159
- MPN
- 2402230017102
