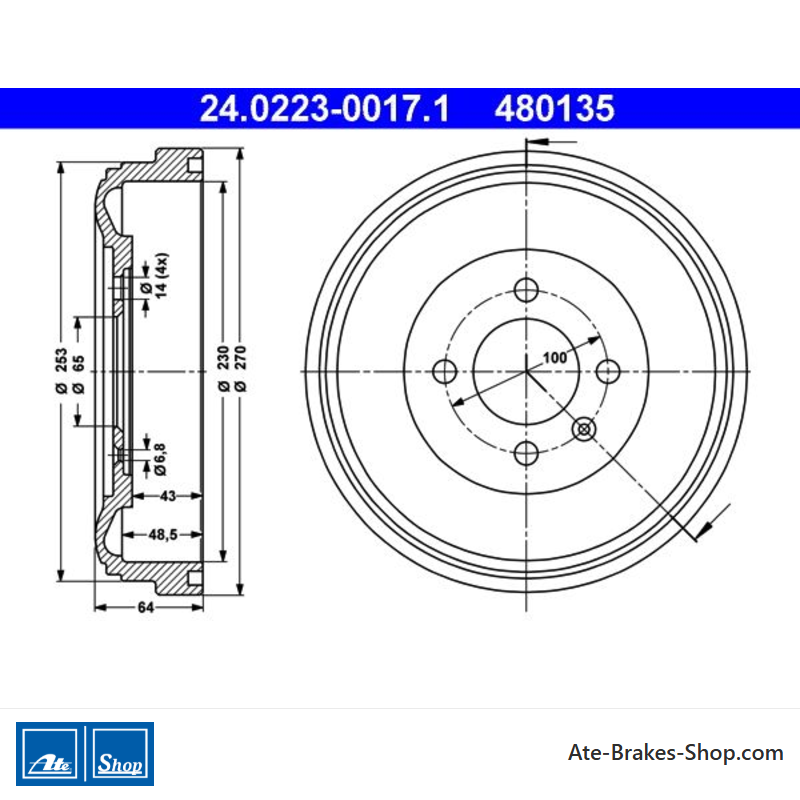

ATE Originaler zweiteiliger Bremstrommel (24022300171) für Volkswagen (VW)
185,13 €
(inkl. MwSt.)
153,00 € Steuerexzl.
Teilenummer:
ATE 24.0223-0017.1
(240223-00171)
- Außendurchmesser [mm]: 270,0
- Innendurchmesser [mm]: 230,0
- Trägerplattendurchmesser [mm]: 65,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480135
- Ean-Code: 4006633076159
- Gewicht: 13.91kg
Specification of ATE 24.0223-0017.1 / 240223-00171 / 24022300171:
| OE Number | Reference info |
| VAG 191 609 617 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 191609617A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1986-02 - 1991-07 | 66 | 90 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1987-08 - 1991-10 | 66 | 90 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1988-08 - 1991-07 | 72 | 98 | 1781 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1993-01 - 1997-08 | 66 | 90 | 1781 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1995-08 - 1997-08 | 85 | 115 | 1984 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1995-08 - 1997-12 | 66 | 90 | 1896 | Hatchback |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1994-10 - 1999-04 | 66 | 90 | 1781 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1995-08 - 1999-04 | 85 | 115 | 1984 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1995-07 - 1999-04 | 66 | 90 | 1896 | Estate |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1987-08 - 1988-12 | 66 | 90 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1988-08 - 1991-07 | 72 | 98 | 1781 | Saloon |
24.0223-0017.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Volkswagen (VW)
- Handelsnummer
- 480135
- Herkunftsland
- China
- Höhe
- 64,0
- Außendurchmesser [mm]
- 270,0
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Trägerplattendurchmesser [mm]
- 65,0
- Innendurchmesser [mm]
- 230,0
- Bohrdurchmesser [mm]
- 14,0
- Max. Bohrende Dimension [mm]
- 231,5
- Innenhöhe der Bremstrommel [mm]
- 48,5
Spezifische Referenzen
- ean13
- 4006633076159
- Hersteller-Teilenummer (MPN)
- 2402230017102
ATE 24.0223-0017.1
(240223-00171)
- Außendurchmesser [mm]: 270,0
- Innendurchmesser [mm]: 230,0
- Trägerplattendurchmesser [mm]: 65,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480135
