ATE Originele 2-delige remtrommel (24022300171) voor Volkswagen (VW)
€ 185,13
(incl. btw)
€ 153,00 belastingexcl.
Onderdeelnummer:
ATE 24.0223-0017.1
(240223-00171)
- Buitendiameter [mm]: 270,0
- Binnendiameter [mm]: 230,0
- Draagplaatdiameter [mm]: 65,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480135
- Ean Code: 4006633076159
- Gewicht: 13.91kg
Specification of ATE 24.0223-0017.1 / 240223-00171 / 24022300171:
| OE Number | Reference info |
| VAG 191 609 617 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 191609617A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1986-02 - 1991-07 | 66 | 90 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1987-08 - 1991-10 | 66 | 90 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1988-08 - 1991-07 | 72 | 98 | 1781 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1993-01 - 1997-08 | 66 | 90 | 1781 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1995-08 - 1997-08 | 85 | 115 | 1984 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1995-08 - 1997-12 | 66 | 90 | 1896 | Hatchback |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1994-10 - 1999-04 | 66 | 90 | 1781 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1995-08 - 1999-04 | 85 | 115 | 1984 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1995-07 - 1999-04 | 66 | 90 | 1896 | Estate |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1987-08 - 1988-12 | 66 | 90 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1988-08 - 1991-07 | 72 | 98 | 1781 | Saloon |

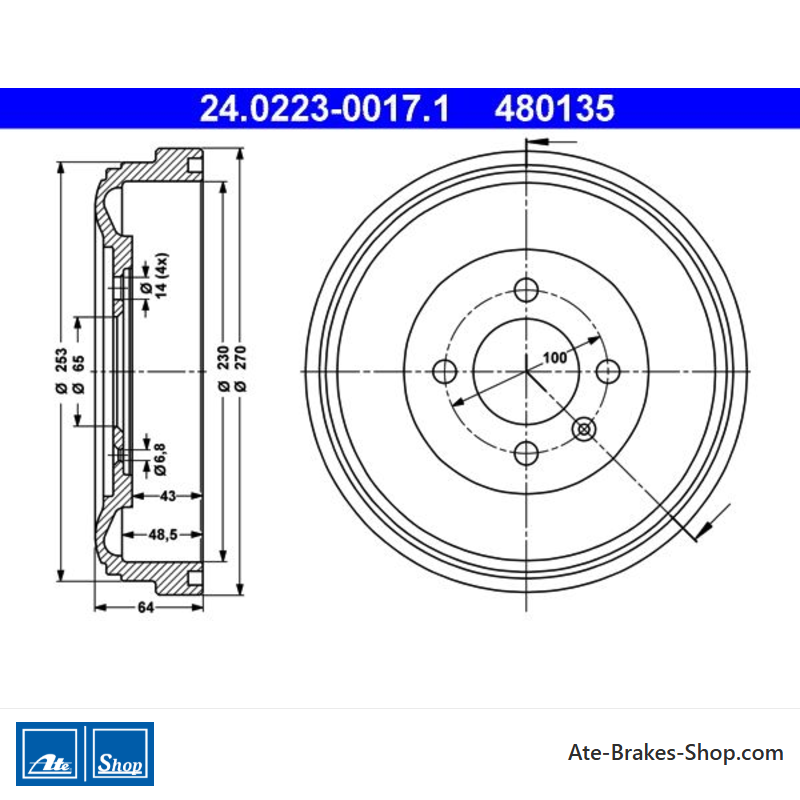

24.0223-0017.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 480135
- Land van Herkomst
- China
- Hoogte
- 64,0
- Buitendiameter [mm]
- 270,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 65,0
- Binnendiameter [mm]
- 230,0
- Bordiameter [mm]
- 14,0
- Max. Afborende Dimensie [mm]
- 231,5
- Binnenhoogte van de remtrommel [mm]
- 48,5
Specifieke referenties
- ean13
- 4006633076159
- MPN
- 2402230017102
ATE 24.0223-0017.1
(240223-00171)
- Buitendiameter [mm]: 270,0
- Binnendiameter [mm]: 230,0
- Draagplaatdiameter [mm]: 65,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480135
