ATE Original 2 Pieces Brake Disk (24010801001) for Audi, Volkswagen (VW)
€76.23
(tax incl.)
€63.00 tax excl.
Part-number:
ATE 24.0108-0100.1
(240108-01001)
- Outer Diameter [mm]: 239,0
- Inner Diameter [mm]: 124,5
- Brake Disc Thickness [mm]: 8,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 408100
Logistical information:
- Ean Code: 4006633054393
- Weight: 5.70kg
Specification of ATE 24.0108-0100.1 / 240108-01001 / 24010801001:
| OE Number | Reference info |
| VAG 861 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 861615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 861 615 301 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 861615301B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 50 (863) Fitting Position Front Axle | 1974-08 - 1978-07 | 37 | 50 | 1093 | Hatchback |
| AUDI 50 (863) Fitting Position Front Axle | 1974-08 - 1977-07 | 44 | 60 | 1093 | Hatchback |
| AUDI 50 (863) Fitting Position Front Axle | 1977-08 - 1978-07 | 44 | 60 | 1272 | Hatchback |
| VW DERBY (86) Fitting Position Front Axle | 1977-02 - 1981-09 | 29 | 40 | 895 | Saloon |
| VW DERBY (86) Fitting Position Front Axle | 1977-02 - 1981-09 | 37 | 50 | 1093 | Saloon |
| VW DERBY (86) Fitting Position Front Axle | 1977-02 - 1981-09 | 44 | 60 | 1272 | Saloon |
| VW DERBY (86C, 80) Construction Year to 198109 Fitting Position Front Axle | 1981-08 - 1983-07 | 44 | 60 | 1272 | Saloon |
| VW POLO (86) Fitting Position Front Axle | 1975-09 - 1981-09 | 29 | 40 | 895 | Hatchback |
| VW POLO (86) Construction Year from 197504 Fitting Position Front Axle | 1975-03 - 1981-09 | 37 | 50 | 1093 | Hatchback |
| VW POLO (86) Construction Year from 197504 Fitting Position Front Axle | 1975-03 - 1981-09 | 44 | 60 | 1093 | Hatchback |
| VW POLO (86) Fitting Position Front Axle | 1976-12 - 1981-09 | 44 | 60 | 1272 | Hatchback |

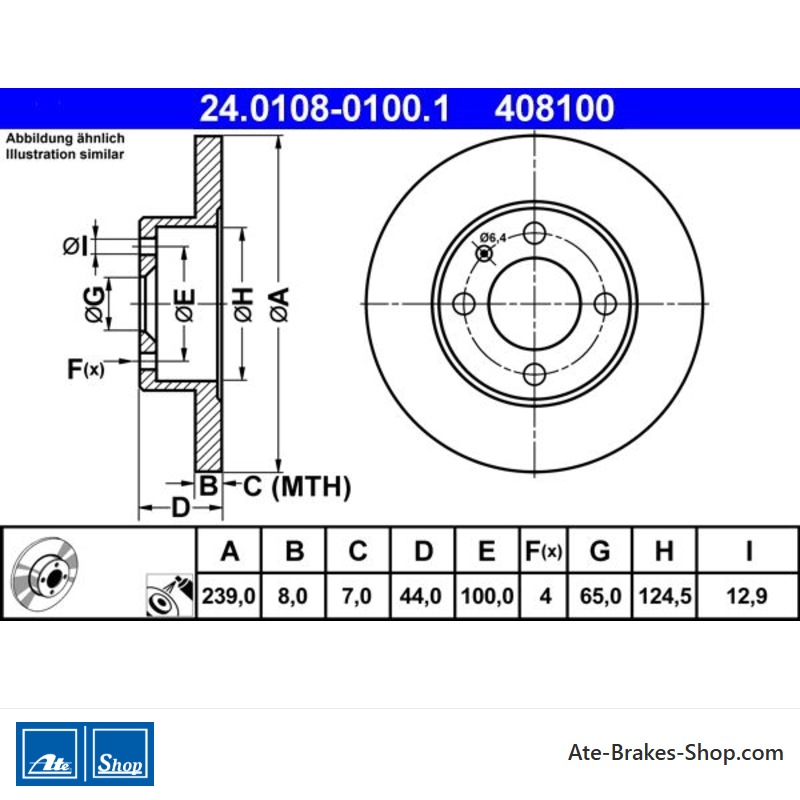

24.0108-0100.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Audi
Volkswagen (VW) - Trade Number
- 408100
- Country Of Origin
- Czechia
- Height
- 44,0
- Outer Diameter [mm]
- 239,0
- Brake Disc Thickness [mm]
- 8,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 65,0
- Inner Diameter [mm]
- 124,5
- Bore Diameter [mm]
- 12,9
- Minimum Thickness [mm]
- 7,0
Specific References
- EAN13
- 4006633054393
- MPN
- 2401080100101
ATE 24.0108-0100.1
(240108-01001)
- Outer Diameter [mm]: 239,0
- Inner Diameter [mm]: 124,5
- Brake Disc Thickness [mm]: 8,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 408100
