ATE Originele 2-delige remschijf (24010801001) voor Audi, Volkswagen (VW)
€ 76,23
(incl. btw)
€ 63,00 belastingexcl.
Onderdeelnummer:
ATE 24.0108-0100.1
(240108-01001)
- Buitendiameter [mm]: 239,0
- Binnendiameter [mm]: 124,5
- Remschijfdikte [mm]: 8,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 408100
Logistieke informatie:
- Ean Code: 4006633054393
- Gewicht: 5.70kg
Specification of ATE 24.0108-0100.1 / 240108-01001 / 24010801001:
| OE Number | Reference info |
| VAG 861 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 861615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 861 615 301 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 861615301B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 50 (863) Fitting Position Front Axle | 1974-08 - 1978-07 | 37 | 50 | 1093 | Hatchback |
| AUDI 50 (863) Fitting Position Front Axle | 1974-08 - 1977-07 | 44 | 60 | 1093 | Hatchback |
| AUDI 50 (863) Fitting Position Front Axle | 1977-08 - 1978-07 | 44 | 60 | 1272 | Hatchback |
| VW DERBY (86) Fitting Position Front Axle | 1977-02 - 1981-09 | 29 | 40 | 895 | Saloon |
| VW DERBY (86) Fitting Position Front Axle | 1977-02 - 1981-09 | 37 | 50 | 1093 | Saloon |
| VW DERBY (86) Fitting Position Front Axle | 1977-02 - 1981-09 | 44 | 60 | 1272 | Saloon |
| VW DERBY (86C, 80) Construction Year to 198109 Fitting Position Front Axle | 1981-08 - 1983-07 | 44 | 60 | 1272 | Saloon |
| VW POLO (86) Fitting Position Front Axle | 1975-09 - 1981-09 | 29 | 40 | 895 | Hatchback |
| VW POLO (86) Construction Year from 197504 Fitting Position Front Axle | 1975-03 - 1981-09 | 37 | 50 | 1093 | Hatchback |
| VW POLO (86) Construction Year from 197504 Fitting Position Front Axle | 1975-03 - 1981-09 | 44 | 60 | 1093 | Hatchback |
| VW POLO (86) Fitting Position Front Axle | 1976-12 - 1981-09 | 44 | 60 | 1272 | Hatchback |

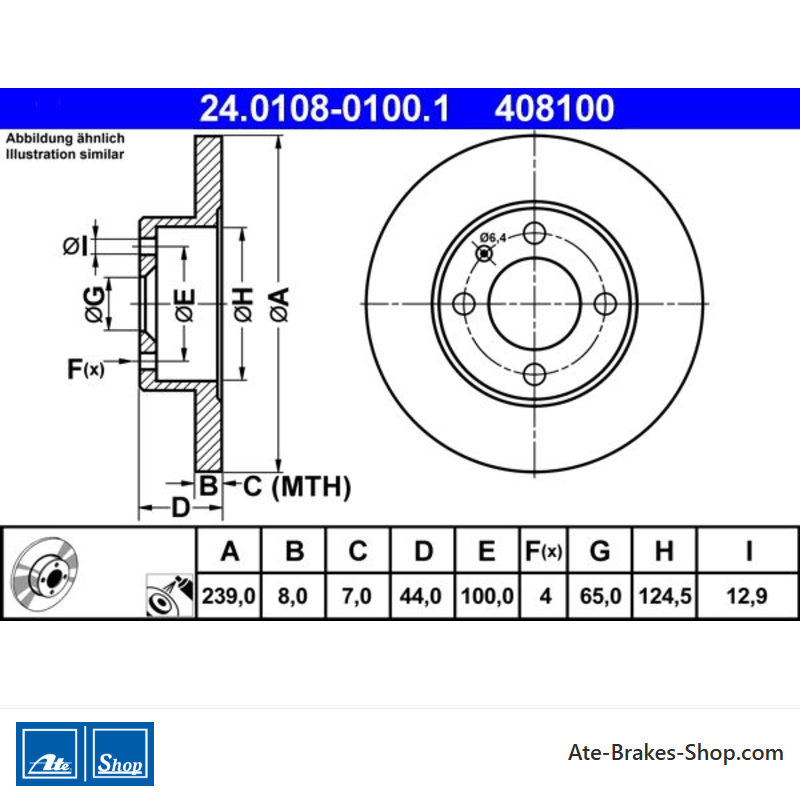

24.0108-0100.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Audi
Volkswagen (VW) - Handelsnummer
- 408100
- Land van Herkomst
- Tsjechië
- Hoogte
- 44,0
- Buitendiameter [mm]
- 239,0
- Remschijfdikte [mm]
- 8,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 65,0
- Binnendiameter [mm]
- 124,5
- Bordiameter [mm]
- 12,9
- Minimale dikte [mm]
- 7,0
Specifieke referenties
- ean13
- 4006633054393
- MPN
- 2401080100101
ATE 24.0108-0100.1
(240108-01001)
- Buitendiameter [mm]: 239,0
- Binnendiameter [mm]: 124,5
- Remschijfdikte [mm]: 8,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 408100
