ATE Disco de freno original de 2 piezas (24010801001) para Audi, Volkswagen (VW)
76,23 €
(impuestos inc.)
63,00 € fiscales excl.
Número de parte:
ATE 24.0108-0100.1
(240108-01001)
- Diámetro exterior [mm]: 239,0
- Diámetro interior [mm]: 124,5
- Grosor del disco de freno [mm]: 8,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número comercial: 408100
Información logística:
- Código Ean: 4006633054393
- Peso: 5.70kg
Specification of ATE 24.0108-0100.1 / 240108-01001 / 24010801001:
| OE Number | Reference info |
| VAG 861 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 861615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 861 615 301 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 861615301B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 50 (863) Fitting Position Front Axle | 1974-08 - 1978-07 | 37 | 50 | 1093 | Hatchback |
| AUDI 50 (863) Fitting Position Front Axle | 1974-08 - 1977-07 | 44 | 60 | 1093 | Hatchback |
| AUDI 50 (863) Fitting Position Front Axle | 1977-08 - 1978-07 | 44 | 60 | 1272 | Hatchback |
| VW DERBY (86) Fitting Position Front Axle | 1977-02 - 1981-09 | 29 | 40 | 895 | Saloon |
| VW DERBY (86) Fitting Position Front Axle | 1977-02 - 1981-09 | 37 | 50 | 1093 | Saloon |
| VW DERBY (86) Fitting Position Front Axle | 1977-02 - 1981-09 | 44 | 60 | 1272 | Saloon |
| VW DERBY (86C, 80) Construction Year to 198109 Fitting Position Front Axle | 1981-08 - 1983-07 | 44 | 60 | 1272 | Saloon |
| VW POLO (86) Fitting Position Front Axle | 1975-09 - 1981-09 | 29 | 40 | 895 | Hatchback |
| VW POLO (86) Construction Year from 197504 Fitting Position Front Axle | 1975-03 - 1981-09 | 37 | 50 | 1093 | Hatchback |
| VW POLO (86) Construction Year from 197504 Fitting Position Front Axle | 1975-03 - 1981-09 | 44 | 60 | 1093 | Hatchback |
| VW POLO (86) Fitting Position Front Axle | 1976-12 - 1981-09 | 44 | 60 | 1272 | Hatchback |

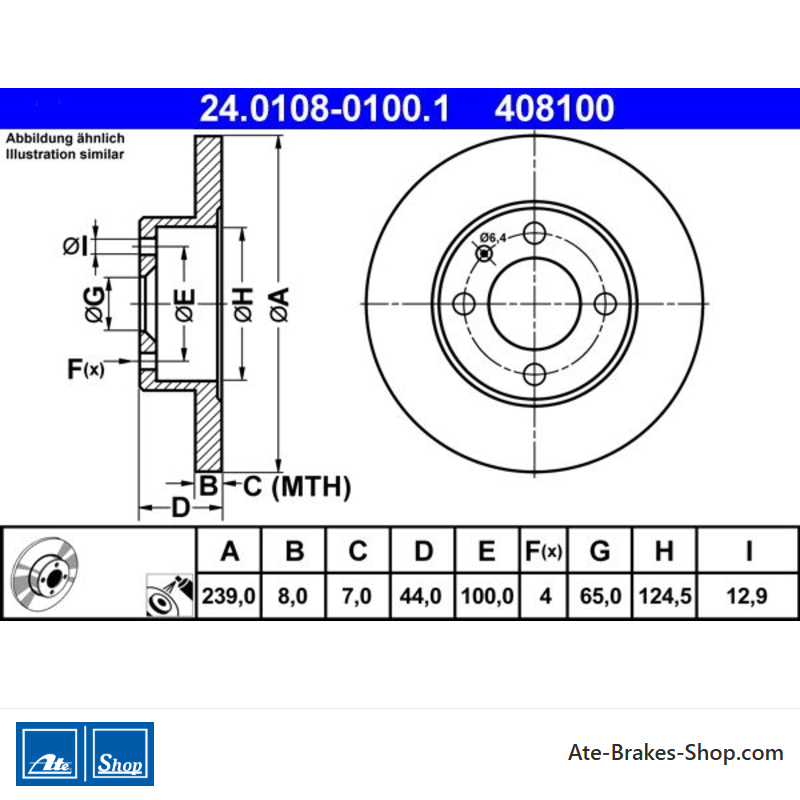

24.0108-0100.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Audi
Volkswagen (VW) - Número de Comercio
- 408100
- País de origen
- Chequia
- Altura
- 44,0
- Diámetro exterior [mm]
- 239,0
- Grosor del disco de freno [mm]
- 8,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de centrado [mm]
- 65,0
- Diámetro interior [mm]
- 124,5
- Diámetro del diámetro del diámetro [mm]
- 12,9
- Espesor mínimo [mm]
- 7,0
Referencias específicas
- ean13
- 4006633054393
- MPN
- 2401080100101
ATE 24.0108-0100.1
(240108-01001)
- Diámetro exterior [mm]: 239,0
- Diámetro interior [mm]: 124,5
- Grosor del disco de freno [mm]: 8,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número comercial: 408100
