ATE Original 2 Pieces Brake Disk (24010801051) for Peugeot
€47.19
(tax incl.)
€39.00 tax excl.
Part-number:
ATE 24.0108-0105.1
(240108-01051)
- Outer Diameter [mm]: 247,5
- Inner Diameter [mm]: 133,0
- Brake Disc Thickness [mm]: 8,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 408105
Logistical information:
- Ean Code: 4006633105651
- Weight: 5.38kg

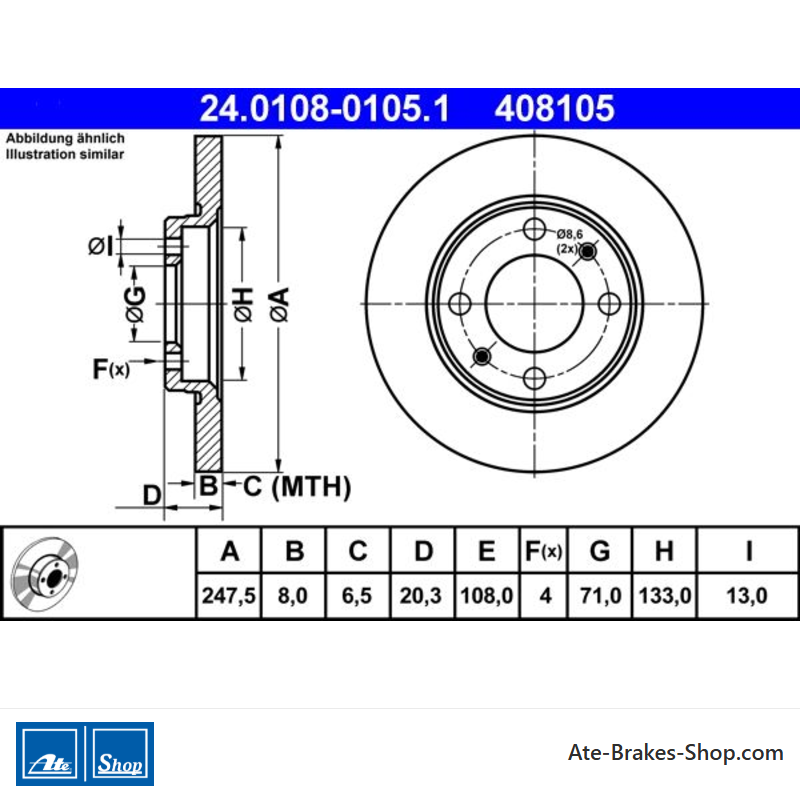

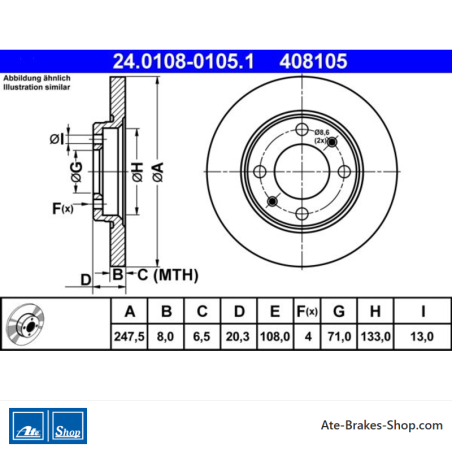

Specification of ATE 24.0108-0105.1 / 240108-01051 / 24010801051:
| OE Number | Reference info |
| PEUGEOT 4246 H0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246H0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 99 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424699 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| PEUGEOT 205 I (741A/C) Fitting Position Rear Axle | 1984-12 - 1987-10 | 76 | 103 | 1580 | Hatchback |
| PEUGEOT 205 I (741A/C) Fitting Position Rear Axle | 1983-02 - 1987-07 | 85 | 116 | 1580 | Hatchback |
| PEUGEOT 205 I (741A/C) Fitting Position Rear Axle | 1986-10 - 1987-10 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year from 198809 Construction Year to 199008 Fitting Position Rear Axle | 1987-10 - 1994-10 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year from 199009 Fitting Position Rear Axle | 1987-10 - 1994-10 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year to 198808 Fitting Position Rear Axle | 1987-10 - 1998-09 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year from 199009 Fitting Position Rear Axle | 1987-10 - 1998-09 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 309 I (10C, 10A) Construction Year from 198603 Fitting Position Rear Axle | 1985-11 - 1988-09 | 76 | 103 | 1580 | Hatchback |
| PEUGEOT 309 I (10C, 10A) Construction Year from 198809 Fitting Position Rear Axle Country Specific Design Germany | 1988-07 - 1989-07 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 309 I (10C, 10A) Fitting Position Rear Axle Country Specific Design Germany | 1986-10 - 1989-07 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 309 II (3C, 3A) Fitting Position Rear Axle Country Specific Design Germany | 1989-07 - 1993-12 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 309 II (3C, 3A) Fitting Position Rear Axle | 1990-10 - 1993-12 | 108 | 147 | 1905 | Hatchback |
| PEUGEOT 309 II (3C, 3A) Fitting Position Rear Axle | 1989-08 - 1990-07 | 116 | 158 | 1905 | Hatchback |
24.0108-0105.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Peugeot
- Trade Number
- 408105
- Country Of Origin
- QU
- Height
- 20,3
- Outer Diameter [mm]
- 247,5
- Brake Disc Thickness [mm]
- 8,0
- Brake Disc Type
- solid
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 108,0
- Centering Diameter [mm]
- 71,0
- Inner Diameter [mm]
- 133,0
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 6,5
Specific References
- EAN13
- 4006633105651
- MPN
- 2401080105101
ATE 24.0108-0105.1
(240108-01051)
- Outer Diameter [mm]: 247,5
- Inner Diameter [mm]: 133,0
- Brake Disc Thickness [mm]: 8,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 408105
