ATE Originale zweiteilige Bremsscheibe (24010801051) für Peugeot
47,19 €
(inkl. MwSt.)
39,00 € Steuerexzl.
Teilenummer:
ATE 24.0108-0105.1
(240108-01051)
- Außendurchmesser [mm]: 247,5
- Innendurchmesser [mm]: 133,0
- Bremsscheibendicke [mm]: 8,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 408105
Logistische Informationen:
- Ean-Code: 4006633105651
- Gewicht: 5.38kg
Specification of ATE 24.0108-0105.1 / 240108-01051 / 24010801051:
| OE Number | Reference info |
| PEUGEOT 4246 H0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246H0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 99 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424699 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| PEUGEOT 205 I (741A/C) Fitting Position Rear Axle | 1984-12 - 1987-10 | 76 | 103 | 1580 | Hatchback |
| PEUGEOT 205 I (741A/C) Fitting Position Rear Axle | 1983-02 - 1987-07 | 85 | 116 | 1580 | Hatchback |
| PEUGEOT 205 I (741A/C) Fitting Position Rear Axle | 1986-10 - 1987-10 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year from 198809 Construction Year to 199008 Fitting Position Rear Axle | 1987-10 - 1994-10 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year from 199009 Fitting Position Rear Axle | 1987-10 - 1994-10 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year to 198808 Fitting Position Rear Axle | 1987-10 - 1998-09 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year from 199009 Fitting Position Rear Axle | 1987-10 - 1998-09 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 309 I (10C, 10A) Construction Year from 198603 Fitting Position Rear Axle | 1985-11 - 1988-09 | 76 | 103 | 1580 | Hatchback |
| PEUGEOT 309 I (10C, 10A) Construction Year from 198809 Fitting Position Rear Axle Country Specific Design Germany | 1988-07 - 1989-07 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 309 I (10C, 10A) Fitting Position Rear Axle Country Specific Design Germany | 1986-10 - 1989-07 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 309 II (3C, 3A) Fitting Position Rear Axle Country Specific Design Germany | 1989-07 - 1993-12 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 309 II (3C, 3A) Fitting Position Rear Axle | 1990-10 - 1993-12 | 108 | 147 | 1905 | Hatchback |
| PEUGEOT 309 II (3C, 3A) Fitting Position Rear Axle | 1989-08 - 1990-07 | 116 | 158 | 1905 | Hatchback |

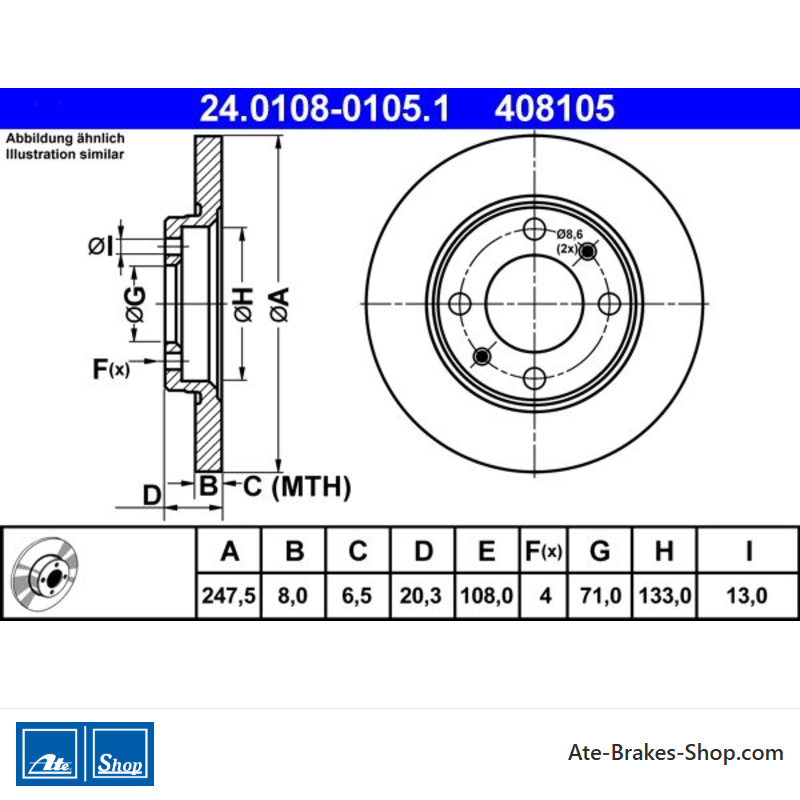

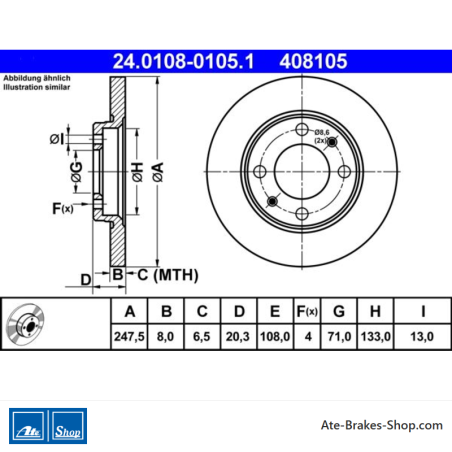

24.0108-0105.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Peugeot
- Handelsnummer
- 408105
- Herkunftsland
- QU
- Höhe
- 20,3
- Außendurchmesser [mm]
- 247,5
- Bremsscheibendicke [mm]
- 8,0
- Bremsscheibentyp
- Solide
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 108,0
- Zentrierungsdurchmesser [mm]
- 71,0
- Innendurchmesser [mm]
- 133,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 6,5
Spezifische Referenzen
- ean13
- 4006633105651
- Hersteller-Teilenummer (MPN)
- 2401080105101
ATE 24.0108-0105.1
(240108-01051)
- Außendurchmesser [mm]: 247,5
- Innendurchmesser [mm]: 133,0
- Bremsscheibendicke [mm]: 8,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 408105
