ATE Originele 2-delige remschijf (24010801051) voor Peugeot
€ 47,19
(incl. btw)
€ 39,00 belastingexcl.
Onderdeelnummer:
ATE 24.0108-0105.1
(240108-01051)
- Buitendiameter [mm]: 247,5
- Binnendiameter [mm]: 133,0
- Remschijfdikte [mm]: 8,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 408105
Logistieke informatie:
- Ean Code: 4006633105651
- Gewicht: 5.38kg
Specification of ATE 24.0108-0105.1 / 240108-01051 / 24010801051:
| OE Number | Reference info |
| PEUGEOT 4246 H0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246H0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 99 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424699 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| PEUGEOT 205 I (741A/C) Fitting Position Rear Axle | 1984-12 - 1987-10 | 76 | 103 | 1580 | Hatchback |
| PEUGEOT 205 I (741A/C) Fitting Position Rear Axle | 1983-02 - 1987-07 | 85 | 116 | 1580 | Hatchback |
| PEUGEOT 205 I (741A/C) Fitting Position Rear Axle | 1986-10 - 1987-10 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year from 198809 Construction Year to 199008 Fitting Position Rear Axle | 1987-10 - 1994-10 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year from 199009 Fitting Position Rear Axle | 1987-10 - 1994-10 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year to 198808 Fitting Position Rear Axle | 1987-10 - 1998-09 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 205 II (20A/C) Construction Year from 199009 Fitting Position Rear Axle | 1987-10 - 1998-09 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 309 I (10C, 10A) Construction Year from 198603 Fitting Position Rear Axle | 1985-11 - 1988-09 | 76 | 103 | 1580 | Hatchback |
| PEUGEOT 309 I (10C, 10A) Construction Year from 198809 Fitting Position Rear Axle Country Specific Design Germany | 1988-07 - 1989-07 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 309 I (10C, 10A) Fitting Position Rear Axle Country Specific Design Germany | 1986-10 - 1989-07 | 94 | 128 | 1905 | Hatchback |
| PEUGEOT 309 II (3C, 3A) Fitting Position Rear Axle Country Specific Design Germany | 1989-07 - 1993-12 | 88 | 120 | 1905 | Hatchback |
| PEUGEOT 309 II (3C, 3A) Fitting Position Rear Axle | 1990-10 - 1993-12 | 108 | 147 | 1905 | Hatchback |
| PEUGEOT 309 II (3C, 3A) Fitting Position Rear Axle | 1989-08 - 1990-07 | 116 | 158 | 1905 | Hatchback |

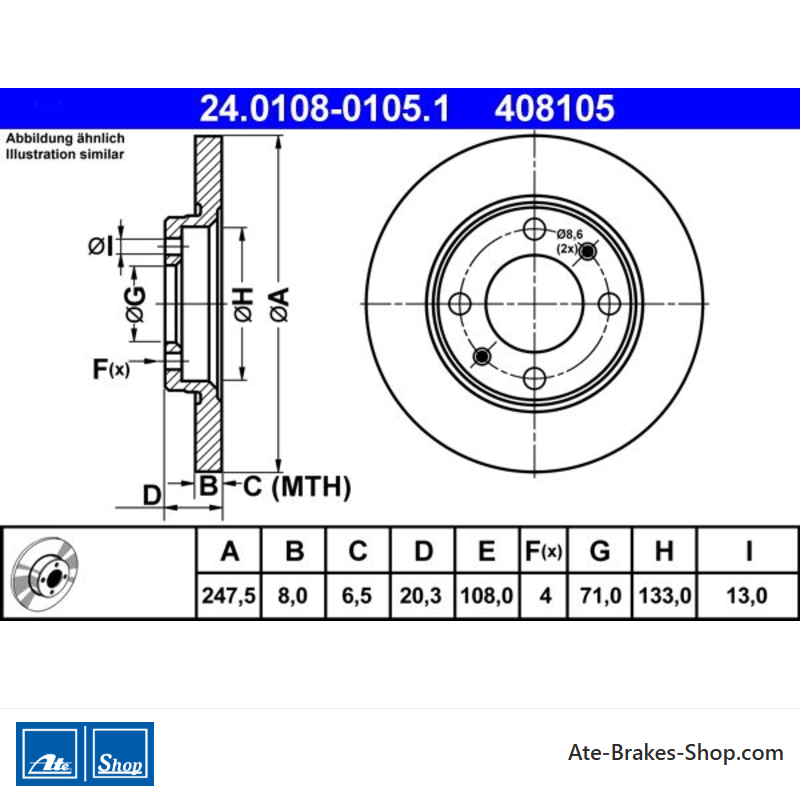

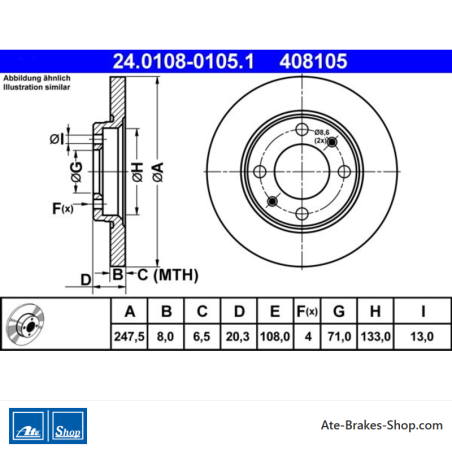

24.0108-0105.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Peugeot
- Handelsnummer
- 408105
- Land van Herkomst
- QU
- Hoogte
- 20,3
- Buitendiameter [mm]
- 247,5
- Remschijfdikte [mm]
- 8,0
- Type remschijf
- Solide
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 71,0
- Binnendiameter [mm]
- 133,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 6,5
Specifieke referenties
- ean13
- 4006633105651
- MPN
- 2401080105101
ATE 24.0108-0105.1
(240108-01051)
- Buitendiameter [mm]: 247,5
- Binnendiameter [mm]: 133,0
- Remschijfdikte [mm]: 8,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 408105
