2 pieces of ATE original Brake Disk (24011101482) for Renault
€214.17
(tax incl.)
€177.00 tax excl.
Part-number:
ATE 24.0111-0148.2
(240111-01482)
- Outer Diameter [mm]: 274,0
- Inner Diameter [mm]: 52,3
- Brake Disc Thickness [mm]: 10,9
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 411148
Logistical information:
- Ean Code: 4006633322881
- Weight: 7.51kg
Specification of ATE 24.0111-0148.2 / 240111-01482 / 24011101482:
| OE Number | Reference info |
| RENAULT 77 01 208 230 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7701208230 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-06 - 2008-11 | 82 | 112 | 1598 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-06 - 2009-06 | 82 | 112 | 1598 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2006-08 | 83 | 113 | 1598 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2009-06 | 99 | 135 | 1998 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Construction Year to 200903 Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2009-06 | 120 | 163 | 1998 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2008-11 | 74 | 101 | 1461 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-06 - 2008-11 | 76 | 103 | 1461 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Construction Year from 200606 Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-05 - 2009-01 | 78 | 106 | 1461 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-05 - 2008-11 | 81 | 110 | 1870 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-05 - 2009-01 | 85 | 116 | 1870 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2006-05 | 88 | 120 | 1870 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2008-02 | 96 | 131 | 1870 | MPV |

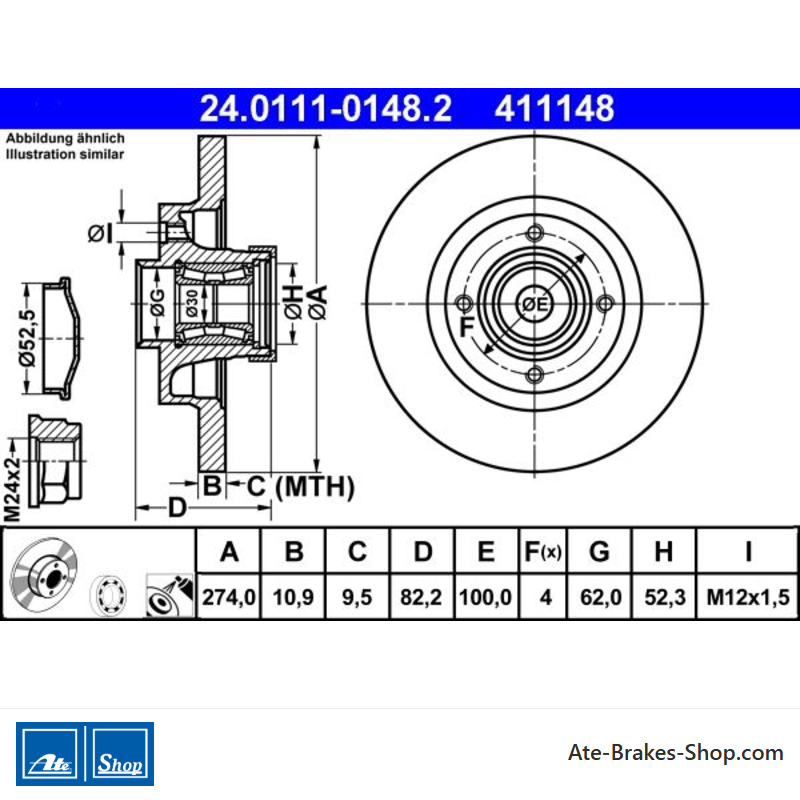

24.0111-0148.2
Data sheet
- Article Status
- Orderable
- Car Brand
- Renault
- Trade Number
- 411148
- Country Of Origin
- QU
- Additional Info
- with ABS sensor ring
with wheel bearing - Height
- 82,2
- Outer Diameter [mm]
- 274,0
- Brake Disc Thickness [mm]
- 10,9
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Support Plate Diameter [mm]
- 30
- Centering Diameter [mm]
- 62,0
- Inner Diameter [mm]
- 52,3
- Thread Size
- M12x1,5
- Minimum Thickness [mm]
- 9,5
Specific References
- EAN13
- 4006633322881
- MPN
- 2401110148202
ATE 24.0111-0148.2
(240111-01482)
- Outer Diameter [mm]: 274,0
- Inner Diameter [mm]: 52,3
- Brake Disc Thickness [mm]: 10,9
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 411148
