ATE Originele remschijf (24011101482) voor Renault
€ 214,17
(incl. btw)
€ 177,00 belastingexcl.
Onderdeelnummer:
ATE 24.0111-0148.2
(240111-01482)
- Buitendiameter [mm]: 274,0
- Binnendiameter [mm]: 52,3
- Remschijfdikte [mm]: 10,9
- Aantal boutgaten: 4
- Handelsnummer: 411148
Logistieke informatie:
- Ean Code: 4006633322881
- Gewicht: 7.51kg
Specification of ATE 24.0111-0148.2 / 240111-01482 / 24011101482:
| OE Number | Reference info |
| RENAULT 77 01 208 230 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7701208230 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-06 - 2008-11 | 82 | 112 | 1598 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-06 - 2009-06 | 82 | 112 | 1598 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2006-08 | 83 | 113 | 1598 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2009-06 | 99 | 135 | 1998 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Construction Year to 200903 Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2009-06 | 120 | 163 | 1998 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2008-11 | 74 | 101 | 1461 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-06 - 2008-11 | 76 | 103 | 1461 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Construction Year from 200606 Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-05 - 2009-01 | 78 | 106 | 1461 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-05 - 2008-11 | 81 | 110 | 1870 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-05 - 2009-01 | 85 | 116 | 1870 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2006-05 | 88 | 120 | 1870 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2008-02 | 96 | 131 | 1870 | MPV |

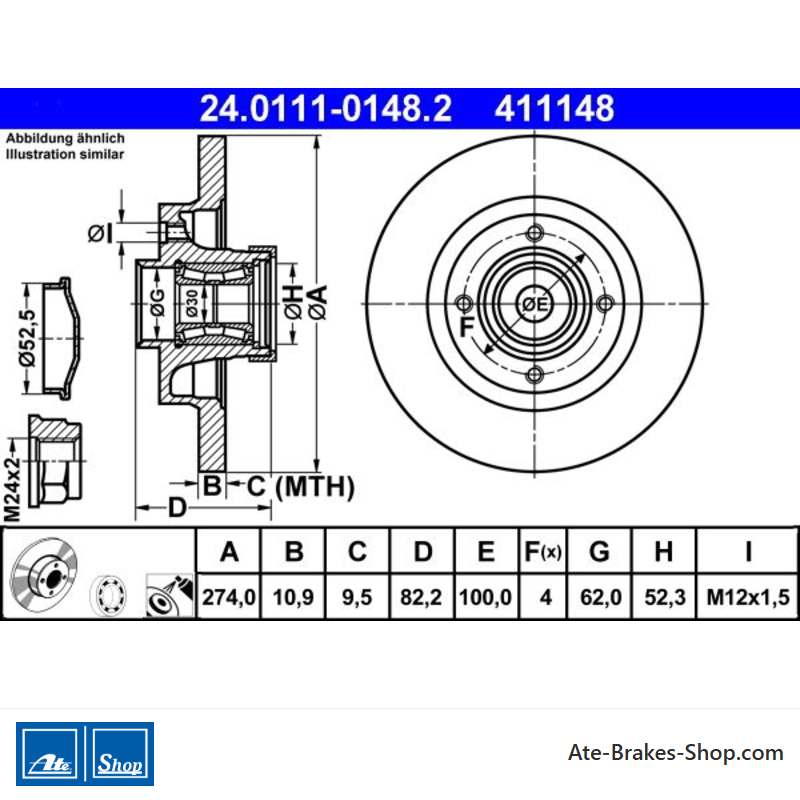

24.0111-0148.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Renault
- Handelsnummer
- 411148
- Land van Herkomst
- QU
- Aanvullende informatie
- met ABS-sensorring
met wiellager - Hoogte
- 82,2
- Buitendiameter [mm]
- 274,0
- Remschijfdikte [mm]
- 10,9
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 30
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 52,3
- Draadmaat
- M12x1,5
- Minimale dikte [mm]
- 9,5
Specifieke referenties
- ean13
- 4006633322881
- MPN
- 2401110148202
ATE 24.0111-0148.2
(240111-01482)
- Buitendiameter [mm]: 274,0
- Binnendiameter [mm]: 52,3
- Remschijfdikte [mm]: 10,9
- Aantal boutgaten: 4
- Handelsnummer: 411148
