ATE Originale Bremsscheibe (24011101482) für Renault
214,17 €
(inkl. MwSt.)
177,00 € Steuerexzl.
Teilenummer:
ATE 24.0111-0148.2
(240111-01482)
- Außendurchmesser [mm]: 274,0
- Innendurchmesser [mm]: 52,3
- Bremsscheibendicke [mm]: 10,9
- Anzahl der Bolzenlöcher: 4
- Handelsnummer: 411148
Logistische Informationen:
- Ean-Code: 4006633322881
- Gewicht: 7.51kg
Specification of ATE 24.0111-0148.2 / 240111-01482 / 24011101482:
| OE Number | Reference info |
| RENAULT 77 01 208 230 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7701208230 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-06 - 2008-11 | 82 | 112 | 1598 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-06 - 2009-06 | 82 | 112 | 1598 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2006-08 | 83 | 113 | 1598 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2009-06 | 99 | 135 | 1998 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Construction Year to 200903 Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2009-06 | 120 | 163 | 1998 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2008-11 | 74 | 101 | 1461 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-06 - 2008-11 | 76 | 103 | 1461 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Construction Year from 200606 Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-05 - 2009-01 | 78 | 106 | 1461 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-05 - 2008-11 | 81 | 110 | 1870 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-05 - 2009-01 | 85 | 116 | 1870 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2006-05 | 88 | 120 | 1870 | MPV |
| RENAULT GRAND SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2008-02 | 96 | 131 | 1870 | MPV |

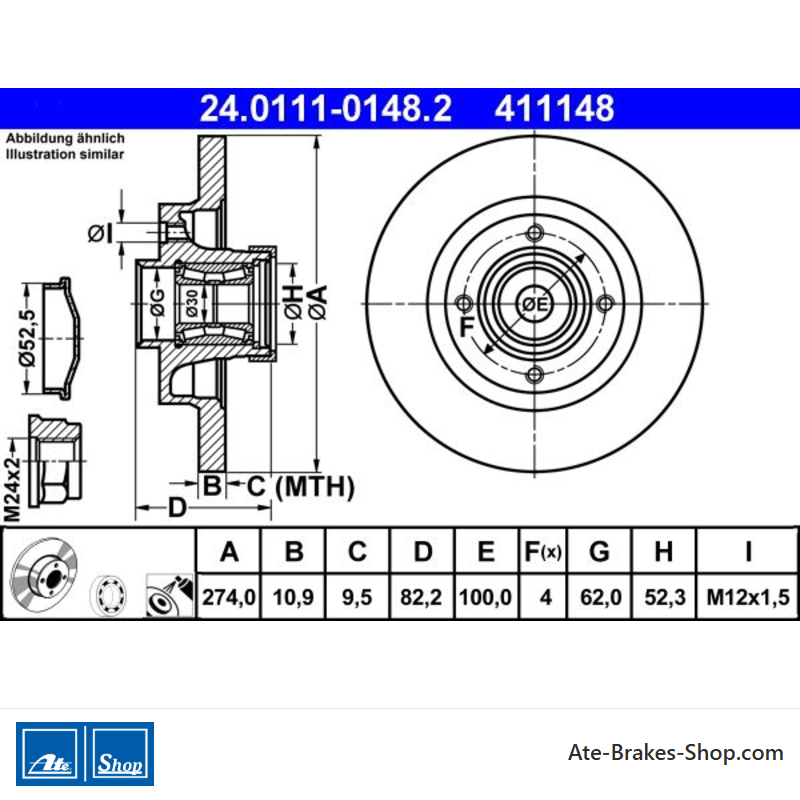

24.0111-0148.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Renault
- Handelsnummer
- 411148
- Herkunftsland
- QU
- Zusätzliche Informationen
- mit ABS-Sensorring
mit Radlager - Höhe
- 82,2
- Außendurchmesser [mm]
- 274,0
- Bremsscheibendicke [mm]
- 10,9
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Trägerplattendurchmesser [mm]
- 30
- Zentrierungsdurchmesser [mm]
- 62,0
- Innendurchmesser [mm]
- 52,3
- Gewindegröße
- M12x1,5
- Mindestdicke [mm]
- 9,5
Spezifische Referenzen
- ean13
- 4006633322881
- Hersteller-Teilenummer (MPN)
- 2401110148202
ATE 24.0111-0148.2
(240111-01482)
- Außendurchmesser [mm]: 274,0
- Innendurchmesser [mm]: 52,3
- Bremsscheibendicke [mm]: 10,9
- Anzahl der Bolzenlöcher: 4
- Handelsnummer: 411148
