2 pieces of ATE original Brake Disk (24011101651) for Mazda
€87.12
(tax incl.)
€72.00 tax excl.
Part-number:
ATE 24.0111-0165.1
(240111-01651)
- Outer Diameter [mm]: 302,0
- Inner Diameter [mm]: 153,0
- Brake Disc Thickness [mm]: 11,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 411165
Logistical information:
- Ean Code: 4006633306690
- Weight: 10.11kg
Specification of ATE 24.0111-0165.1 / 240111-01651 / 24011101651:
| OE Number | Reference info |
| MAZDA C23Y-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA C26Y-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 85 | 116 | 1798 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 107 | 146 | 1999 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 81 | 110 | 1998 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 105 | 143 | 1998 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-09 - | 85 | 116 | 1798 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-06 - | 106 | 144 | 1999 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-09 - | 110 | 150 | 1999 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-07 - | 85 | 116 | 1560 | MPV |
24.0111-0165.1

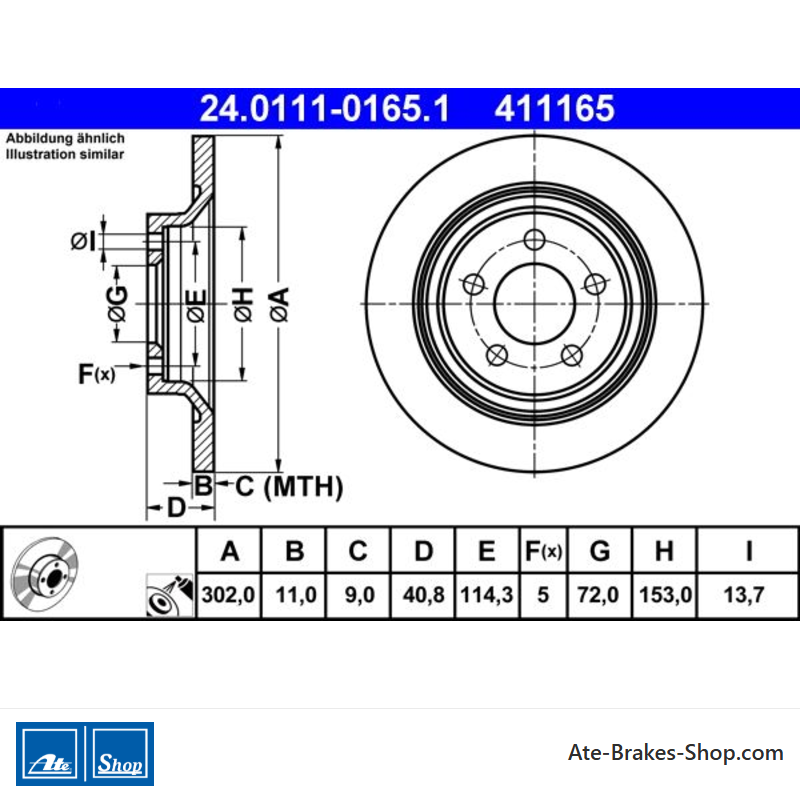

Data sheet
- Article Status
- Orderable
- Car Brand
- Mazda
- Trade Number
- 411165
- Country Of Origin
- China
- Height
- 40,8
- Outer Diameter [mm]
- 302,0
- Brake Disc Thickness [mm]
- 11,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 72,0
- Inner Diameter [mm]
- 153,0
- Bore Diameter [mm]
- 13,7
- Minimum Thickness [mm]
- 9,0
Specific References
- EAN13
- 4006633306690
- MPN
- 2401110165102
ATE 24.0111-0165.1
(240111-01651)
- Outer Diameter [mm]: 302,0
- Inner Diameter [mm]: 153,0
- Brake Disc Thickness [mm]: 11,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 411165
