ATE Originele 2-delige remschijf (24011101651) voor Mazda
€ 87,12
(incl. btw)
€ 72,00 belastingexcl.
Onderdeelnummer:
ATE 24.0111-0165.1
(240111-01651)
- Buitendiameter [mm]: 302,0
- Binnendiameter [mm]: 153,0
- Remschijfdikte [mm]: 11,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 411165
Logistieke informatie:
- Ean Code: 4006633306690
- Gewicht: 10.11kg

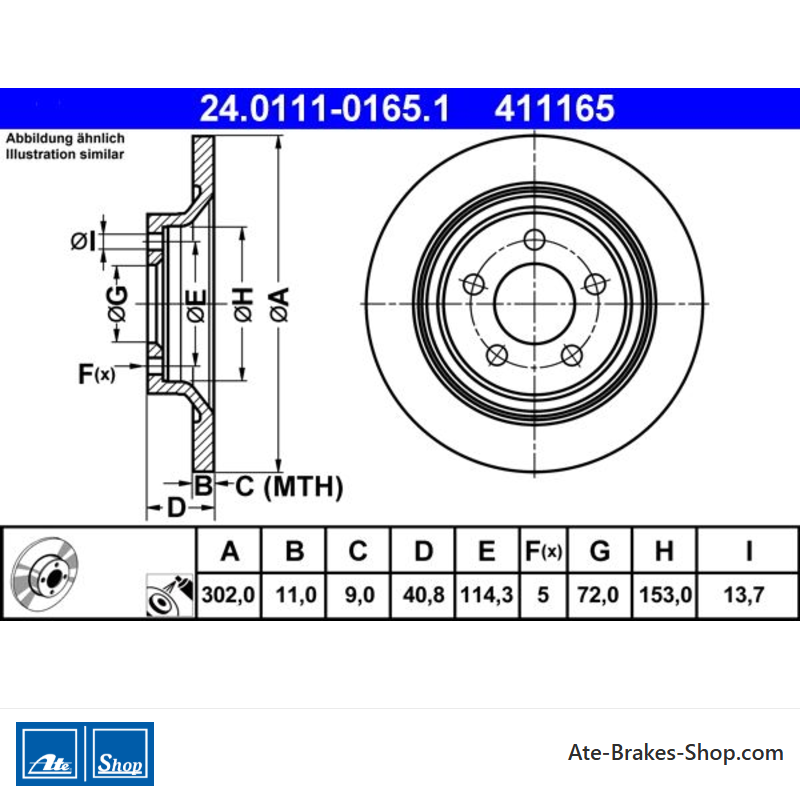

Specification of ATE 24.0111-0165.1 / 240111-01651 / 24011101651:
| OE Number | Reference info |
| MAZDA C23Y-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA C26Y-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 85 | 116 | 1798 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 107 | 146 | 1999 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 81 | 110 | 1998 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 105 | 143 | 1998 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-09 - | 85 | 116 | 1798 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-06 - | 106 | 144 | 1999 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-09 - | 110 | 150 | 1999 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-07 - | 85 | 116 | 1560 | MPV |
24.0111-0165.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mazda
- Handelsnummer
- 411165
- Land van Herkomst
- China
- Hoogte
- 40,8
- Buitendiameter [mm]
- 302,0
- Remschijfdikte [mm]
- 11,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 72,0
- Binnendiameter [mm]
- 153,0
- Bordiameter [mm]
- 13,7
- Minimale dikte [mm]
- 9,0
Specifieke referenties
- ean13
- 4006633306690
- MPN
- 2401110165102
