ATE Originale zweiteilige Bremsscheibe (24011101651) für Mazda
87,12 €
(inkl. MwSt.)
72,00 € Steuerexzl.
Teilenummer:
ATE 24.0111-0165.1
(240111-01651)
- Außendurchmesser [mm]: 302,0
- Innendurchmesser [mm]: 153,0
- Bremsscheibendicke [mm]: 11,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 411165
Logistische Informationen:
- Ean-Code: 4006633306690
- Gewicht: 10.11kg
Specification of ATE 24.0111-0165.1 / 240111-01651 / 24011101651:
| OE Number | Reference info |
| MAZDA C23Y-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA C26Y-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 85 | 116 | 1798 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 107 | 146 | 1999 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 81 | 110 | 1998 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 16" | 2005-02 - 2010-05 | 105 | 143 | 1998 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-09 - | 85 | 116 | 1798 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-06 - | 106 | 144 | 1999 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-09 - | 110 | 150 | 1999 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 16.0 Inch Rim Size [inch] 17.0 Inch | 2010-07 - | 85 | 116 | 1560 | MPV |

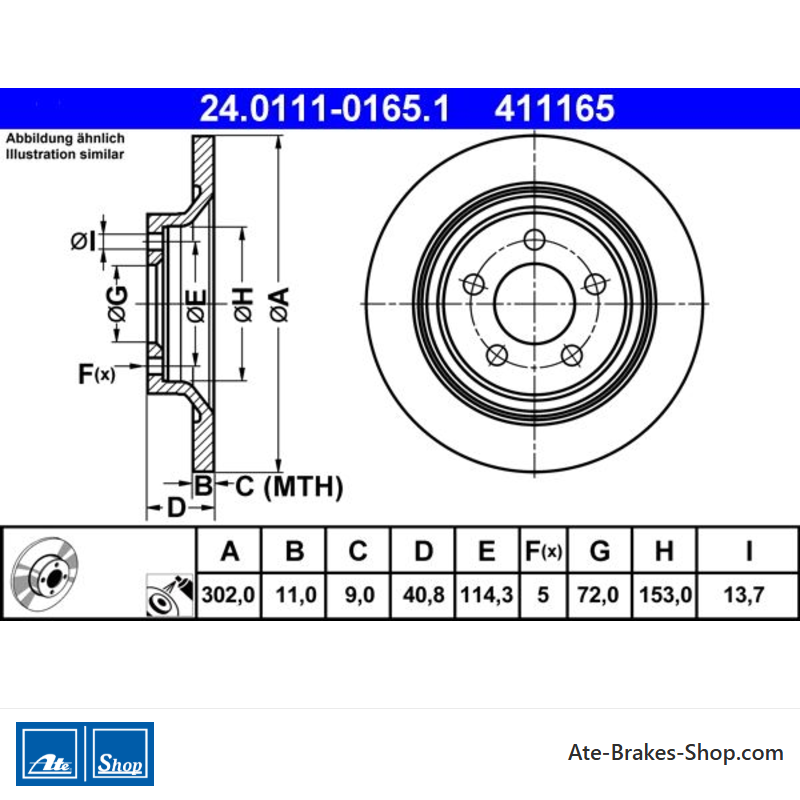

24.0111-0165.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Mazda
- Handelsnummer
- 411165
- Herkunftsland
- China
- Höhe
- 40,8
- Außendurchmesser [mm]
- 302,0
- Bremsscheibendicke [mm]
- 11,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 72,0
- Innendurchmesser [mm]
- 153,0
- Bohrdurchmesser [mm]
- 13,7
- Mindestdicke [mm]
- 9,0
Spezifische Referenzen
- ean13
- 4006633306690
- Hersteller-Teilenummer (MPN)
- 2401110165102
