2 pieces of ATE original Brake Disk (24011301022) for Alfa Romeo
€127.05
(tax incl.)
€105.00 tax excl.
Part-number:
ATE 24.0113-0102.2
(240113-01022)
- Outer Diameter [mm]: 272,0
- Inner Diameter [mm]: 126,5
- Brake Disc Thickness [mm]: 12,7
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 413102
Logistical information:
- Ean Code: 4006633075589
- Weight: 12.21kg
Specification of ATE 24.0113-0102.2 / 240113-01022 / 24011301022:
| OE Number | Reference info |
| ALFA ROMEO 10512.22014.00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ALFA ROMEO 60516371 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60516371 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 10512.22014.00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO SPIDER (105_) Construction Year from 197701 Fitting Position Front Axle | 1971-01 - 1977-12 | 96 | 131 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year from 198312 Fitting Position Front Axle | 1976-03 - 1990-12 | 76 | 103 | 1570 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year to 199308 Fitting Position Front Axle | 1990-01 - 1993-12 | 79 | 107 | 1570 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year from 197909 Fitting Position Front Axle | 1974-01 - 1984-12 | 81 | 110 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Fitting Position Front Axle | 1986-08 - 1990-12 | 85 | 116 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Fitting Position Front Axle | 1990-01 - 1993-12 | 88 | 120 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Fitting Position Front Axle | 1986-08 - 1990-12 | 92 | 125 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year to 198605 Fitting Position Front Axle | 1977-01 - 1993-12 | 93 | 126 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year from 197701 Fitting Position Front Axle | 1971-01 - 1977-12 | 96 | 131 | 1962 | Convertible |

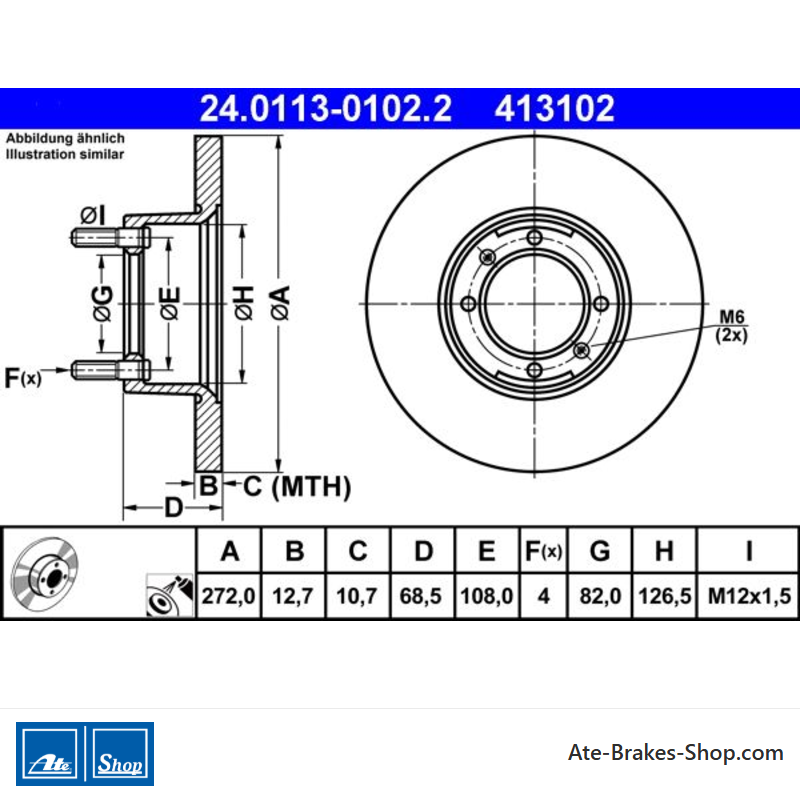

24.0113-0102.2
Data sheet
- Article Status
- Orderable
- Car Brand
- Alfa Romeo
- Trade Number
- 413102
- Country Of Origin
- EU
- Additional Info
- with bolts/screws
- Height
- 68,5
- Outer Diameter [mm]
- 272,0
- Brake Disc Thickness [mm]
- 12,7
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 108,0
- Centering Diameter [mm]
- 82,0
- Inner Diameter [mm]
- 126,5
- Thread Size
- M12x1,5
- Minimum Thickness [mm]
- 10,7
Specific References
- EAN13
- 4006633075589
- MPN
- 2401130102202
ATE 24.0113-0102.2
(240113-01022)
- Outer Diameter [mm]: 272,0
- Inner Diameter [mm]: 126,5
- Brake Disc Thickness [mm]: 12,7
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 413102
