ATE Disco de freno original de 2 piezas (24011301022) para Alfa Romeo
127,05 €
(impuestos inc.)
105,00 € fiscales excl.
Número de parte:
ATE 24.0113-0102.2
(240113-01022)
- Diámetro exterior [mm]: 272,0
- Diámetro interior [mm]: 126,5
- Grosor del disco de freno [mm]: 12,7
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 413102
Información logística:
- Código Ean: 4006633075589
- Peso: 12.21kg
Specification of ATE 24.0113-0102.2 / 240113-01022 / 24011301022:
| OE Number | Reference info |
| ALFA ROMEO 10512.22014.00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ALFA ROMEO 60516371 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60516371 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 10512.22014.00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO SPIDER (105_) Construction Year from 197701 Fitting Position Front Axle | 1971-01 - 1977-12 | 96 | 131 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year from 198312 Fitting Position Front Axle | 1976-03 - 1990-12 | 76 | 103 | 1570 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year to 199308 Fitting Position Front Axle | 1990-01 - 1993-12 | 79 | 107 | 1570 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year from 197909 Fitting Position Front Axle | 1974-01 - 1984-12 | 81 | 110 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Fitting Position Front Axle | 1986-08 - 1990-12 | 85 | 116 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Fitting Position Front Axle | 1990-01 - 1993-12 | 88 | 120 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Fitting Position Front Axle | 1986-08 - 1990-12 | 92 | 125 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year to 198605 Fitting Position Front Axle | 1977-01 - 1993-12 | 93 | 126 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year from 197701 Fitting Position Front Axle | 1971-01 - 1977-12 | 96 | 131 | 1962 | Convertible |

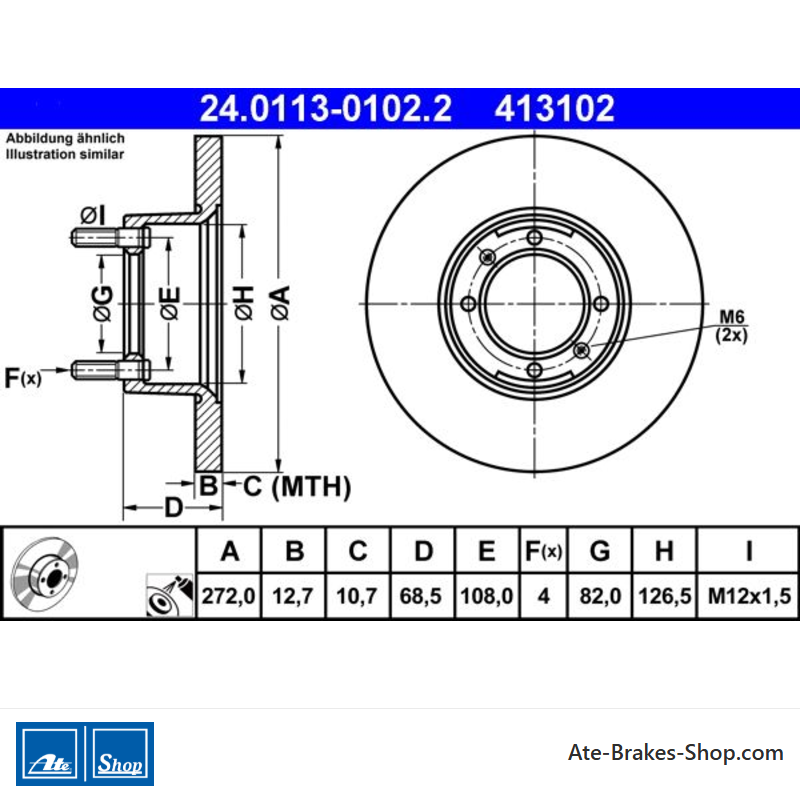

24.0113-0102.2
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Alfa Romeo
- Número de Comercio
- 413102
- País de origen
- EU
- Información adicional
- con tornillos/tornillos
- Altura
- 68,5
- Diámetro exterior [mm]
- 272,0
- Grosor del disco de freno [mm]
- 12,7
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 108,0
- Diámetro de centrado [mm]
- 82,0
- Diámetro interior [mm]
- 126,5
- Tamaño del hilo
- M12x1,5
- Espesor mínimo [mm]
- 10,7
Referencias específicas
- ean13
- 4006633075589
- MPN
- 2401130102202
ATE 24.0113-0102.2
(240113-01022)
- Diámetro exterior [mm]: 272,0
- Diámetro interior [mm]: 126,5
- Grosor del disco de freno [mm]: 12,7
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 413102
