ATE Originele 2-delige remschijf (24011301022) voor Alfa Romeo
€ 127,05
(incl. btw)
€ 105,00 belastingexcl.
Onderdeelnummer:
ATE 24.0113-0102.2
(240113-01022)
- Buitendiameter [mm]: 272,0
- Binnendiameter [mm]: 126,5
- Remschijfdikte [mm]: 12,7
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 413102
Logistieke informatie:
- Ean Code: 4006633075589
- Gewicht: 12.21kg
Specification of ATE 24.0113-0102.2 / 240113-01022 / 24011301022:
| OE Number | Reference info |
| ALFA ROMEO 10512.22014.00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ALFA ROMEO 60516371 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60516371 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 10512.22014.00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO SPIDER (105_) Construction Year from 197701 Fitting Position Front Axle | 1971-01 - 1977-12 | 96 | 131 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year from 198312 Fitting Position Front Axle | 1976-03 - 1990-12 | 76 | 103 | 1570 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year to 199308 Fitting Position Front Axle | 1990-01 - 1993-12 | 79 | 107 | 1570 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year from 197909 Fitting Position Front Axle | 1974-01 - 1984-12 | 81 | 110 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Fitting Position Front Axle | 1986-08 - 1990-12 | 85 | 116 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Fitting Position Front Axle | 1990-01 - 1993-12 | 88 | 120 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Fitting Position Front Axle | 1986-08 - 1990-12 | 92 | 125 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year to 198605 Fitting Position Front Axle | 1977-01 - 1993-12 | 93 | 126 | 1962 | Convertible |
| ALFA ROMEO SPIDER (115_) Construction Year from 197701 Fitting Position Front Axle | 1971-01 - 1977-12 | 96 | 131 | 1962 | Convertible |

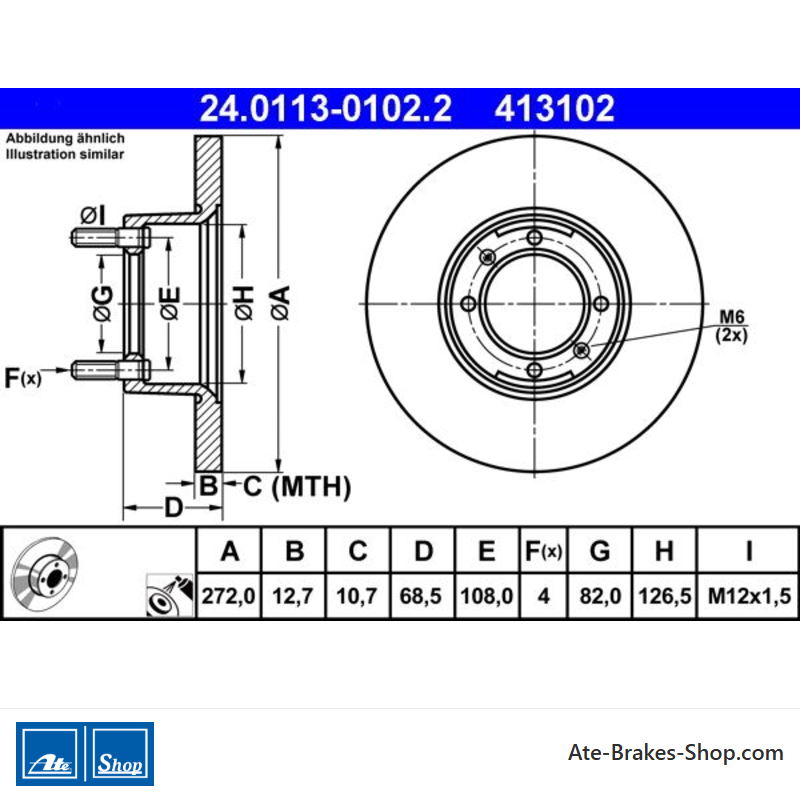

24.0113-0102.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Alfa Romeo
- Handelsnummer
- 413102
- Land van Herkomst
- EU
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 68,5
- Buitendiameter [mm]
- 272,0
- Remschijfdikte [mm]
- 12,7
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 82,0
- Binnendiameter [mm]
- 126,5
- Draadmaat
- M12x1,5
- Minimale dikte [mm]
- 10,7
Specifieke referenties
- ean13
- 4006633075589
- MPN
- 2401130102202
ATE 24.0113-0102.2
(240113-01022)
- Buitendiameter [mm]: 272,0
- Binnendiameter [mm]: 126,5
- Remschijfdikte [mm]: 12,7
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 413102
