2 pieces of ATE original Brake Disk (24011301051) for Toyota
€119.79
(tax incl.)
€99.00 tax excl.
Part-number:
ATE 24.0113-0105.1
(240113-01051)
- Outer Diameter [mm]: 302,0
- Inner Diameter [mm]: 168,5
- Brake Disc Thickness [mm]: 12,5
- Number of Bolt Holes: 6
- 2 pieces of Brake Disc
- Trade Number: 413105
Logistical information:
- Ean Code: 4006633111126
- Weight: 12.33kg
Specification of ATE 24.0113-0105.1 / 240113-01051 / 24011301051:
| OE Number | Reference info |
| TOYOTA 43512-35070 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA HILUX IV Pickup (_N5_, _N6_) Fitting Position Front Axle | 1983-08 - 1988-07 | 55 | 75 | 2446 | Pickup |
| TOYOTA LAND CRUISER (_J7_, _JL7_) Construction Year to 198912 Fitting Position Front Axle | 1984-11 - 1993-05 | 77 | 105 | 2367 | Closed Off-Road Vehicle |
| TOYOTA LAND CRUISER (_J7_, _JL7_) Construction Year to 198912 Fitting Position Front Axle | 1984-11 - 1993-05 | 81 | 110 | 2367 | Closed Off-Road Vehicle |
| TOYOTA LAND CRUISER (_J7_, _JL7_) Fitting Position Front Axle | 1984-11 - 1985-10 | 53 | 72 | 2446 | Closed Off-Road Vehicle |
| TOYOTA LAND CRUISER (_J7_, _JL7_) Construction Year to 198912 Fitting Position Front Axle | 1985-10 - 1990-05 | 63 | 86 | 2446 | Closed Off-Road Vehicle |
| TOYOTA LAND CRUISER (_J7_, _JL7_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 1990-01 - 1993-05 | 66 | 90 | 2446 | Closed Off-Road Vehicle |
| TOYOTA LAND CRUISER Hardtop (_J7_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 1990-07 - 1996-05 | 66 | 90 | 2446 | Open Off-Road Vehicle |

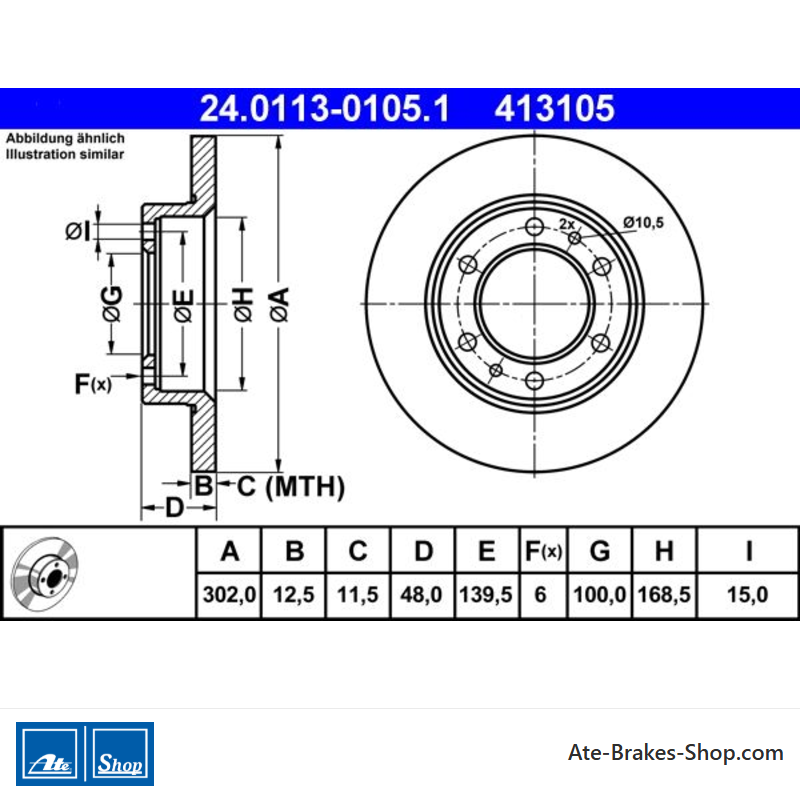

24.0113-0105.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
- Trade Number
- 413105
- Country Of Origin
- China
- Height
- 48,0
- Outer Diameter [mm]
- 302,0
- Brake Disc Thickness [mm]
- 12,5
- Brake Disc Type
- solid
- Number of Bolt Holes
- 6
- Bolt Hole Diameter [mm]
- 139,5
- Centering Diameter [mm]
- 100,0
- Inner Diameter [mm]
- 168,5
- Bore Diameter [mm]
- 15,0
- Minimum Thickness [mm]
- 11,5
Specific References
- EAN13
- 4006633111126
- MPN
- 2401130105101
ATE 24.0113-0105.1
(240113-01051)
- Outer Diameter [mm]: 302,0
- Inner Diameter [mm]: 168,5
- Brake Disc Thickness [mm]: 12,5
- Number of Bolt Holes: 6
- 2 pieces of Brake Disc
- Trade Number: 413105
