ATE Originale zweiteilige Bremsscheibe (24011301051) für Toyota
119,79 €
(inkl. MwSt.)
99,00 € Steuerexzl.
Teilenummer:
ATE 24.0113-0105.1
(240113-01051)
- Außendurchmesser [mm]: 302,0
- Innendurchmesser [mm]: 168,5
- Bremsscheibendicke [mm]: 12,5
- Anzahl der Bolzenlöcher: 6
- 2 Teile Bremsscheiben
- Handelsnummer: 413105
Logistische Informationen:
- Ean-Code: 4006633111126
- Gewicht: 12.33kg
Specification of ATE 24.0113-0105.1 / 240113-01051 / 24011301051:
| OE Number | Reference info |
| TOYOTA 43512-35070 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA HILUX IV Pickup (_N5_, _N6_) Fitting Position Front Axle | 1983-08 - 1988-07 | 55 | 75 | 2446 | Pickup |
| TOYOTA LAND CRUISER (_J7_, _JL7_) Construction Year to 198912 Fitting Position Front Axle | 1984-11 - 1993-05 | 77 | 105 | 2367 | Closed Off-Road Vehicle |
| TOYOTA LAND CRUISER (_J7_, _JL7_) Construction Year to 198912 Fitting Position Front Axle | 1984-11 - 1993-05 | 81 | 110 | 2367 | Closed Off-Road Vehicle |
| TOYOTA LAND CRUISER (_J7_, _JL7_) Fitting Position Front Axle | 1984-11 - 1985-10 | 53 | 72 | 2446 | Closed Off-Road Vehicle |
| TOYOTA LAND CRUISER (_J7_, _JL7_) Construction Year to 198912 Fitting Position Front Axle | 1985-10 - 1990-05 | 63 | 86 | 2446 | Closed Off-Road Vehicle |
| TOYOTA LAND CRUISER (_J7_, _JL7_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 1990-01 - 1993-05 | 66 | 90 | 2446 | Closed Off-Road Vehicle |
| TOYOTA LAND CRUISER Hardtop (_J7_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 1990-07 - 1996-05 | 66 | 90 | 2446 | Open Off-Road Vehicle |

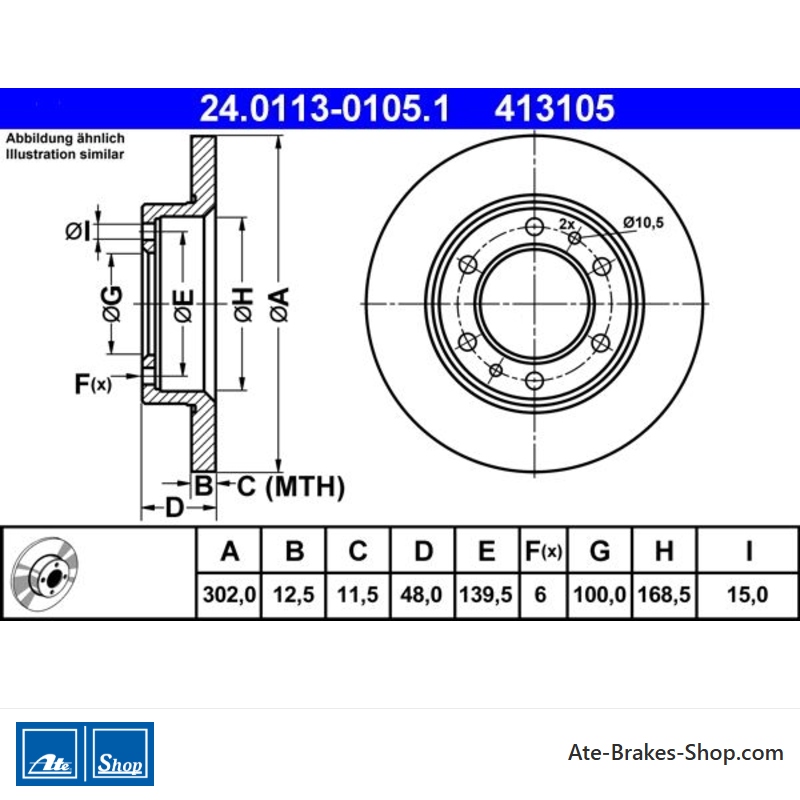

24.0113-0105.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Toyota
- Handelsnummer
- 413105
- Herkunftsland
- China
- Höhe
- 48,0
- Außendurchmesser [mm]
- 302,0
- Bremsscheibendicke [mm]
- 12,5
- Bremsscheibentyp
- Solide
- Anzahl der Schraublöcher
- 6
- Bolzenlochdurchmesser [mm]
- 139,5
- Zentrierungsdurchmesser [mm]
- 100,0
- Innendurchmesser [mm]
- 168,5
- Bohrdurchmesser [mm]
- 15,0
- Mindestdicke [mm]
- 11,5
Spezifische Referenzen
- ean13
- 4006633111126
- Hersteller-Teilenummer (MPN)
- 2401130105101
ATE 24.0113-0105.1
(240113-01051)
- Außendurchmesser [mm]: 302,0
- Innendurchmesser [mm]: 168,5
- Bremsscheibendicke [mm]: 12,5
- Anzahl der Bolzenlöcher: 6
- 2 Teile Bremsscheiben
- Handelsnummer: 413105
