ATE Originele 2-delige remschijf (24011301051) voor Toyota
search
  • ATE Originele 2-delige remschijf (24011301051) voor Toyota
  • ATE Originele 2-delige remschijf (24011301051) voor Toyota
  • ATE Originele 2-delige remschijf (24011301051) voor Toyota

ATE Originele 2-delige remschijf (24011301051) voor Toyota

€ 119,79 (incl. btw)

€ 99,00 belastingexcl.

Onderdeelnummer:

ATE 24.0113-0105.1
(240113-01051)

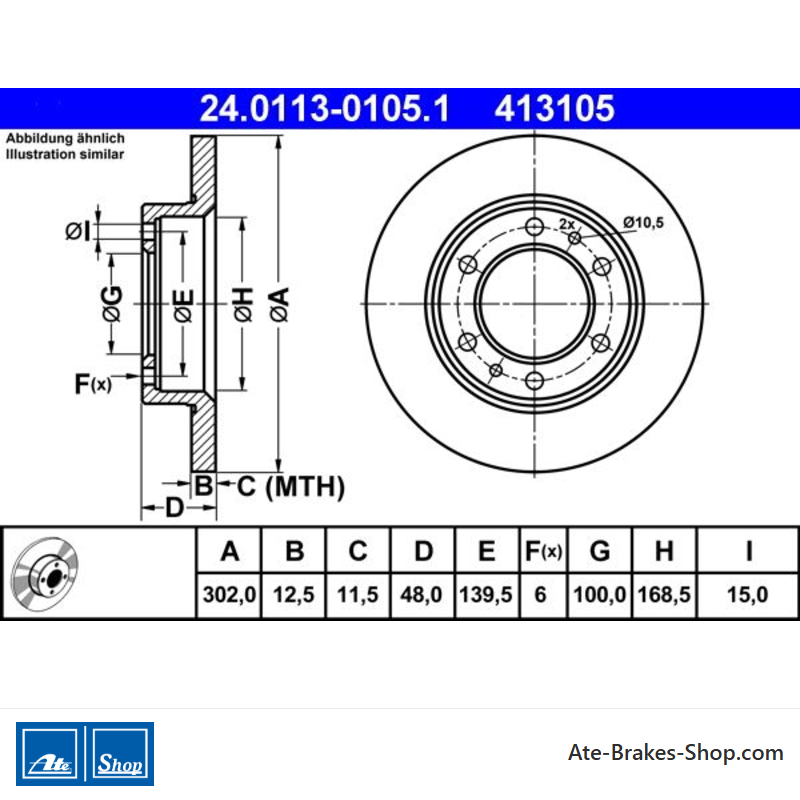

  • Buitendiameter [mm]: 302,0
  • Binnendiameter [mm]: 168,5
  • Remschijfdikte [mm]: 12,5
  • Aantal bolt holes: 6
  • 2 stukken remschijf
  • Handelsnummer: 413105
Logistieke informatie:
100,0Klik hier voor gedetailleerde informatie.
  • Ean Code: 4006633111126
  • Gewicht: 12.33kg
Aantal

Specification of ATE 24.0113-0105.1 / 240113-01051 / 24011301051:

OE NumberReference info
TOYOTA 43512-35070Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
TOYOTA HILUX IV Pickup (_N5_, _N6_)

Fitting Position Front Axle		1983-08 - 1988-0755752446Pickup
TOYOTA LAND CRUISER (_J7_, _JL7_)

Construction Year to 198912

Fitting Position Front Axle		1984-11 - 1993-05771052367Closed Off-Road Vehicle
TOYOTA LAND CRUISER (_J7_, _JL7_)

Construction Year to 198912

Fitting Position Front Axle		1984-11 - 1993-05811102367Closed Off-Road Vehicle
TOYOTA LAND CRUISER (_J7_, _JL7_)

Fitting Position Front Axle		1984-11 - 1985-1053722446Closed Off-Road Vehicle
TOYOTA LAND CRUISER (_J7_, _JL7_)

Construction Year to 198912

Fitting Position Front Axle		1985-10 - 1990-0563862446Closed Off-Road Vehicle
TOYOTA LAND CRUISER (_J7_, _JL7_)

Braking System for vehicles with drum brakes on the rear axle

Fitting Position Front Axle		1990-01 - 1993-0566902446Closed Off-Road Vehicle
TOYOTA LAND CRUISER Hardtop (_J7_)

Braking System for vehicles with drum brakes on the rear axle

Fitting Position Front Axle		1990-07 - 1996-0566902446Open Off-Road Vehicle
24.0113-0105.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Toyota
Handelsnummer
413105
Land van Herkomst
China
Hoogte
48,0
Buitendiameter [mm]
302,0
Remschijfdikte [mm]
12,5
Type remschijf
Solide
Aantal boltgaten
6
Diameter van het schroefgat [mm]
139,5
Centreringsdiameter [mm]
100,0
Binnendiameter [mm]
168,5
Bordiameter [mm]
15,0
Minimale dikte [mm]
11,5

Specifieke referenties

ean13
4006633111126
MPN
2401130105101
