2 pieces of ATE original Brake Disk (24011301321) for Volkswagen (VW)
€116.16
(tax incl.)
€96.00 tax excl.
Part-number:
ATE 24.0113-0132.1
(240113-01321)
- Outer Diameter [mm]: 278,2
- Inner Diameter [mm]: 137,0
- Brake Disc Thickness [mm]: 13,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 413132
Logistical information:
- Ean Code: 4006633056175
- Weight: 13.45kg

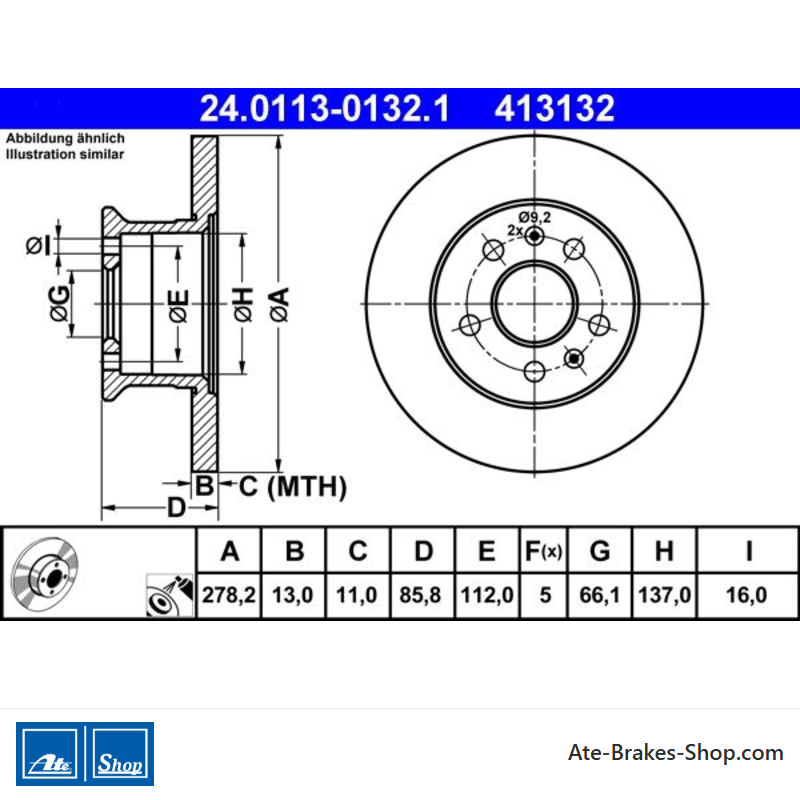

Specification of ATE 24.0113-0132.1 / 240113-01321 / 24011301321:
| OE Number | Reference info |
| VAG 211 615 301 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 211615301B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T2 Bus (22, 23, 24) Construction Year from 197208 Fitting Position Front Axle | 1970-08 - 1979-04 | 37 | 50 | 1584 | Bus |
| VW TRANSPORTER T2 Bus (22, 23, 24) Construction Year from 197208 Fitting Position Front Axle | 1971-08 - 1973-10 | 49 | 66 | 1679 | Bus |
| VW TRANSPORTER T2 Bus (22, 23, 24) Fitting Position Front Axle | 1973-11 - 1975-07 | 50 | 68 | 1795 | Bus |
| VW TRANSPORTER T2 Bus (22, 23, 24) Fitting Position Front Axle | 1975-08 - 1979-04 | 51 | 70 | 1970 | Bus |
| VW TRANSPORTER T2 Van (21, 23) Construction Year from 197208 Fitting Position Front Axle | 1970-08 - 1979-07 | 37 | 50 | 1584 | Van |
| VW TRANSPORTER T2 Van (21, 23) Construction Year from 197208 Fitting Position Front Axle | 1971-08 - 1973-12 | 49 | 67 | 1679 | Van |
| VW TRANSPORTER T2 Van (21, 23) Fitting Position Front Axle | 1973-11 - 1975-07 | 50 | 68 | 1795 | Van |
| VW TRANSPORTER T2 Van (21, 23) Fitting Position Front Axle | 1976-08 - 1979-07 | 51 | 69 | 1970 | Van |
| VW TRANSPORTER T2 Platform/Chassis (21, 26) Construction Year from 197208 Fitting Position Front Axle | 1968-08 - 1979-07 | 37 | 50 | 1584 | Platform/Chassis |
24.0113-0132.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Volkswagen (VW)
- Trade Number
- 413132
- Country Of Origin
- Czechia
- Height
- 85,8
- Outer Diameter [mm]
- 278,2
- Brake Disc Thickness [mm]
- 13,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 112,0
- Centering Diameter [mm]
- 66,1
- Inner Diameter [mm]
- 137,0
- Bore Diameter [mm]
- 16,0
- Minimum Thickness [mm]
- 11,0
Specific References
- EAN13
- 4006633056175
- MPN
- 2401130132101
ATE 24.0113-0132.1
(240113-01321)
- Outer Diameter [mm]: 278,2
- Inner Diameter [mm]: 137,0
- Brake Disc Thickness [mm]: 13,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 413132
