ATE Originale zweiteilige Bremsscheibe (24011301321) für Volkswagen (VW)
116,16 €
(inkl. MwSt.)
96,00 € Steuerexzl.
Teilenummer:
ATE 24.0113-0132.1
(240113-01321)
- Außendurchmesser [mm]: 278,2
- Innendurchmesser [mm]: 137,0
- Bremsscheibendicke [mm]: 13,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 413132
Logistische Informationen:
- Ean-Code: 4006633056175
- Gewicht: 13.45kg

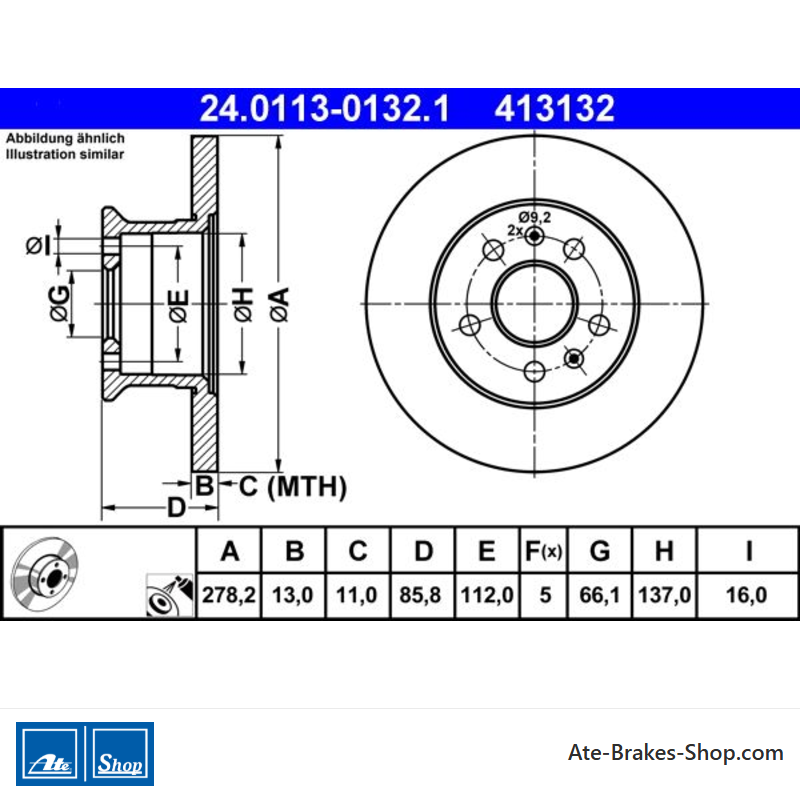

Specification of ATE 24.0113-0132.1 / 240113-01321 / 24011301321:
| OE Number | Reference info |
| VAG 211 615 301 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 211615301B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T2 Bus (22, 23, 24) Construction Year from 197208 Fitting Position Front Axle | 1970-08 - 1979-04 | 37 | 50 | 1584 | Bus |
| VW TRANSPORTER T2 Bus (22, 23, 24) Construction Year from 197208 Fitting Position Front Axle | 1971-08 - 1973-10 | 49 | 66 | 1679 | Bus |
| VW TRANSPORTER T2 Bus (22, 23, 24) Fitting Position Front Axle | 1973-11 - 1975-07 | 50 | 68 | 1795 | Bus |
| VW TRANSPORTER T2 Bus (22, 23, 24) Fitting Position Front Axle | 1975-08 - 1979-04 | 51 | 70 | 1970 | Bus |
| VW TRANSPORTER T2 Van (21, 23) Construction Year from 197208 Fitting Position Front Axle | 1970-08 - 1979-07 | 37 | 50 | 1584 | Van |
| VW TRANSPORTER T2 Van (21, 23) Construction Year from 197208 Fitting Position Front Axle | 1971-08 - 1973-12 | 49 | 67 | 1679 | Van |
| VW TRANSPORTER T2 Van (21, 23) Fitting Position Front Axle | 1973-11 - 1975-07 | 50 | 68 | 1795 | Van |
| VW TRANSPORTER T2 Van (21, 23) Fitting Position Front Axle | 1976-08 - 1979-07 | 51 | 69 | 1970 | Van |
| VW TRANSPORTER T2 Platform/Chassis (21, 26) Construction Year from 197208 Fitting Position Front Axle | 1968-08 - 1979-07 | 37 | 50 | 1584 | Platform/Chassis |
24.0113-0132.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Volkswagen (VW)
- Handelsnummer
- 413132
- Herkunftsland
- Tschechien
- Höhe
- 85,8
- Außendurchmesser [mm]
- 278,2
- Bremsscheibendicke [mm]
- 13,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 112,0
- Zentrierungsdurchmesser [mm]
- 66,1
- Innendurchmesser [mm]
- 137,0
- Bohrdurchmesser [mm]
- 16,0
- Mindestdicke [mm]
- 11,0
Spezifische Referenzen
- ean13
- 4006633056175
- Hersteller-Teilenummer (MPN)
- 2401130132101
ATE 24.0113-0132.1
(240113-01321)
- Außendurchmesser [mm]: 278,2
- Innendurchmesser [mm]: 137,0
- Bremsscheibendicke [mm]: 13,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 413132
