ATE Originele 2-delige remschijf (24011301321) voor Volkswagen (VW)
€ 116,16
(incl. btw)
€ 96,00 belastingexcl.
Onderdeelnummer:
ATE 24.0113-0132.1
(240113-01321)
- Buitendiameter [mm]: 278,2
- Binnendiameter [mm]: 137,0
- Remschijfdikte [mm]: 13,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 413132
Logistieke informatie:
- Ean Code: 4006633056175
- Gewicht: 13.45kg
Specification of ATE 24.0113-0132.1 / 240113-01321 / 24011301321:
| OE Number | Reference info |
| VAG 211 615 301 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 211615301B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T2 Bus (22, 23, 24) Construction Year from 197208 Fitting Position Front Axle | 1970-08 - 1979-04 | 37 | 50 | 1584 | Bus |
| VW TRANSPORTER T2 Bus (22, 23, 24) Construction Year from 197208 Fitting Position Front Axle | 1971-08 - 1973-10 | 49 | 66 | 1679 | Bus |
| VW TRANSPORTER T2 Bus (22, 23, 24) Fitting Position Front Axle | 1973-11 - 1975-07 | 50 | 68 | 1795 | Bus |
| VW TRANSPORTER T2 Bus (22, 23, 24) Fitting Position Front Axle | 1975-08 - 1979-04 | 51 | 70 | 1970 | Bus |
| VW TRANSPORTER T2 Van (21, 23) Construction Year from 197208 Fitting Position Front Axle | 1970-08 - 1979-07 | 37 | 50 | 1584 | Van |
| VW TRANSPORTER T2 Van (21, 23) Construction Year from 197208 Fitting Position Front Axle | 1971-08 - 1973-12 | 49 | 67 | 1679 | Van |
| VW TRANSPORTER T2 Van (21, 23) Fitting Position Front Axle | 1973-11 - 1975-07 | 50 | 68 | 1795 | Van |
| VW TRANSPORTER T2 Van (21, 23) Fitting Position Front Axle | 1976-08 - 1979-07 | 51 | 69 | 1970 | Van |
| VW TRANSPORTER T2 Platform/Chassis (21, 26) Construction Year from 197208 Fitting Position Front Axle | 1968-08 - 1979-07 | 37 | 50 | 1584 | Platform/Chassis |
24.0113-0132.1

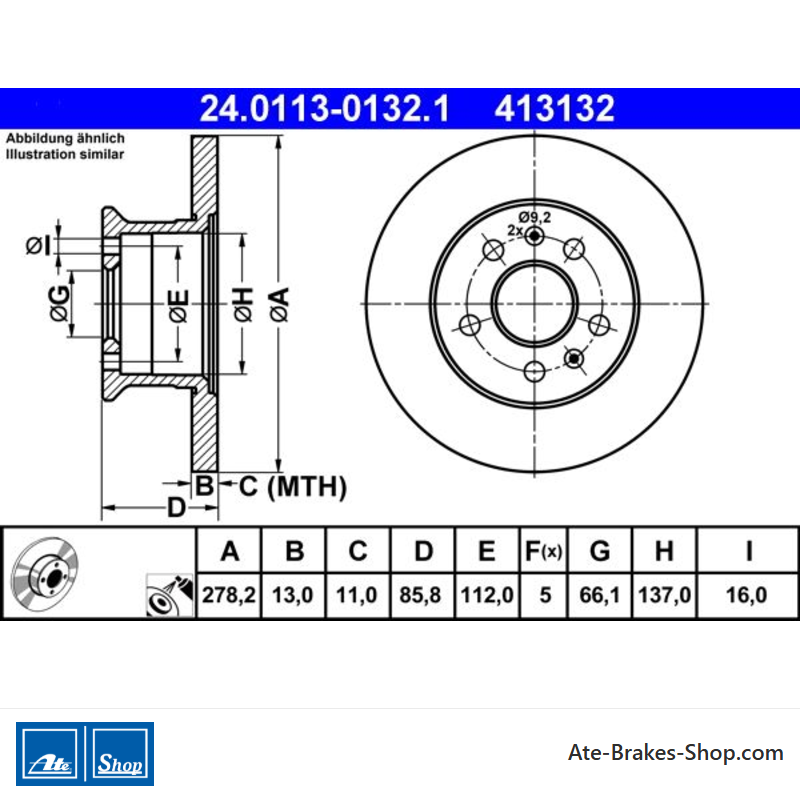

Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 413132
- Land van Herkomst
- Tsjechië
- Hoogte
- 85,8
- Buitendiameter [mm]
- 278,2
- Remschijfdikte [mm]
- 13,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Centreringsdiameter [mm]
- 66,1
- Binnendiameter [mm]
- 137,0
- Bordiameter [mm]
- 16,0
- Minimale dikte [mm]
- 11,0
Specifieke referenties
- ean13
- 4006633056175
- MPN
- 2401130132101
