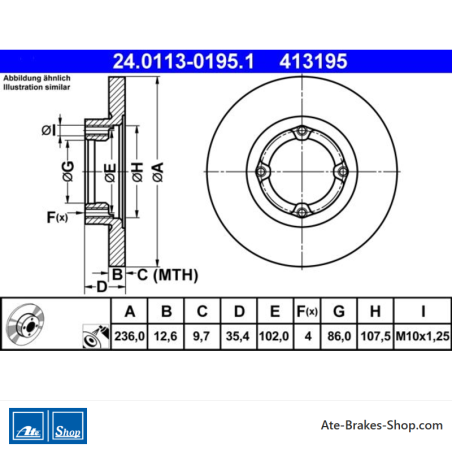

2 pieces of ATE original Brake Disk (24011301951) for Chevrolet, Daewoo
€68.97
(tax incl.)
€57.00 tax excl.
Part-number:
ATE 24.0113-0195.1
(240113-01951)
- Outer Diameter [mm]: 236,0
- Inner Diameter [mm]: 107,5
- Brake Disc Thickness [mm]: 12,6
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 413195
Logistical information:
- Ean Code: 4006633078559
- Weight: 7.35kg
Specification of ATE 24.0113-0195.1 / 240113-01951 / 24011301951:
| OE Number | Reference info |
| CHEVROLET 96320531 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHEVROLET 96284392 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHEVROLET 96455424 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96320531 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96284392 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Front Axle | 2005-03 - 2013-12 | 38 | 52 | 796 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Front Axle | 2005-03 - 2007-12 | 38 | 52 | 796 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Front Axle | 2005-03 - 2007-12 | 47 | 64 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Front Axle | 2007-01 - | 48 | 65 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Front Axle | 2005-03 - | 49 | 67 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Front Axle | 2005-03 - 2011-03 | 49 | 67 | 995 | Hatchback |
| CHEVROLET SPARK Fitting Position Front Axle | 2005-05 - 2010-02 | 37 | 50 | 796 | Hatchback |
| CHEVROLET SPARK Construction Year to 201002 Fitting Position Front Axle | 2005-05 - | 46 | 63 | 995 | Hatchback |
| CHEVROLET SPARK Construction Year to 201002 Fitting Position Front Axle | 2005-05 - | 49 | 67 | 995 | Hatchback |
| DAEWOO MATIZ (M100, M150) Construction Year to 200502 Fitting Position Front Axle | 1998-09 - | 38 | 52 | 796 | Hatchback |
| DAEWOO MATIZ (M100, M150) Construction Year to 200502 Fitting Position Front Axle | 2003-01 - | 47 | 64 | 995 | Hatchback |
24.0113-0195.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Chevrolet
Daewoo - Trade Number
- 413195
- Country Of Origin
- Czechia
- Height
- 35,4
- Outer Diameter [mm]
- 236,0
- Brake Disc Thickness [mm]
- 12,6
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 102,0
- Centering Diameter [mm]
- 86,0
- Inner Diameter [mm]
- 107,5
- Thread Size
- M10x1,25
- Minimum Thickness [mm]
- 9,7
Specific References
- EAN13
- 4006633078559
- MPN
- 2401130195102
ATE 24.0113-0195.1
(240113-01951)
- Outer Diameter [mm]: 236,0
- Inner Diameter [mm]: 107,5
- Brake Disc Thickness [mm]: 12,6
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 413195
