ATE Originele 2-delige remschijf (24011301951) voor Chevrolet, Daewoo
€ 68,97
(incl. btw)
€ 57,00 belastingexcl.
Onderdeelnummer:
ATE 24.0113-0195.1
(240113-01951)
- Buitendiameter [mm]: 236,0
- Binnendiameter [mm]: 107,5
- Remschijfdikte [mm]: 12,6
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 413195
Logistieke informatie:
- Ean Code: 4006633078559
- Gewicht: 7.35kg
Specification of ATE 24.0113-0195.1 / 240113-01951 / 24011301951:
| OE Number | Reference info |
| CHEVROLET 96320531 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHEVROLET 96284392 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHEVROLET 96455424 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96320531 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96284392 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Front Axle | 2005-03 - 2013-12 | 38 | 52 | 796 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Front Axle | 2005-03 - 2007-12 | 38 | 52 | 796 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Front Axle | 2005-03 - 2007-12 | 47 | 64 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Front Axle | 2007-01 - | 48 | 65 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Front Axle | 2005-03 - | 49 | 67 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Front Axle | 2005-03 - 2011-03 | 49 | 67 | 995 | Hatchback |
| CHEVROLET SPARK Fitting Position Front Axle | 2005-05 - 2010-02 | 37 | 50 | 796 | Hatchback |
| CHEVROLET SPARK Construction Year to 201002 Fitting Position Front Axle | 2005-05 - | 46 | 63 | 995 | Hatchback |
| CHEVROLET SPARK Construction Year to 201002 Fitting Position Front Axle | 2005-05 - | 49 | 67 | 995 | Hatchback |
| DAEWOO MATIZ (M100, M150) Construction Year to 200502 Fitting Position Front Axle | 1998-09 - | 38 | 52 | 796 | Hatchback |
| DAEWOO MATIZ (M100, M150) Construction Year to 200502 Fitting Position Front Axle | 2003-01 - | 47 | 64 | 995 | Hatchback |

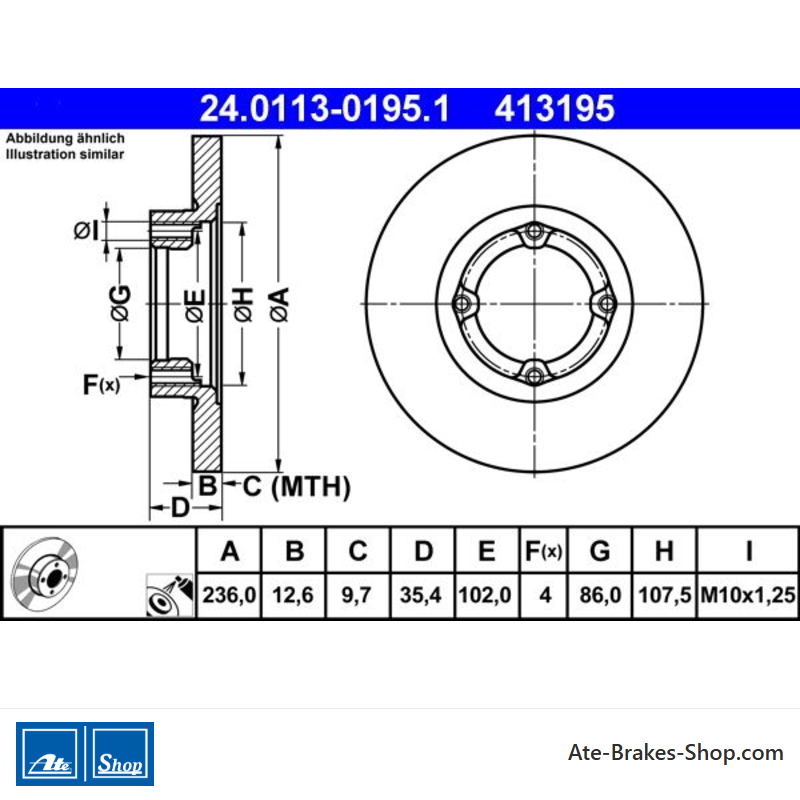

24.0113-0195.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Chevrolet
Daewoo - Handelsnummer
- 413195
- Land van Herkomst
- Tsjechië
- Hoogte
- 35,4
- Buitendiameter [mm]
- 236,0
- Remschijfdikte [mm]
- 12,6
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 102,0
- Centreringsdiameter [mm]
- 86,0
- Binnendiameter [mm]
- 107,5
- Draadmaat
- M10x1,25
- Minimale dikte [mm]
- 9,7
Specifieke referenties
- ean13
- 4006633078559
- MPN
- 2401130195102
ATE 24.0113-0195.1
(240113-01951)
- Buitendiameter [mm]: 236,0
- Binnendiameter [mm]: 107,5
- Remschijfdikte [mm]: 12,6
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 413195
