2 pieces of ATE original Brake Disk (24011301961) for Chrysler
€105.27
(tax incl.)
€87.00 tax excl.
Part-number:
ATE 24.0113-0196.1
(240113-01961)
- Outer Diameter [mm]: 290,0
- Inner Diameter [mm]: 180,0
- Brake Disc Thickness [mm]: 12,5
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 413196
Logistical information:
- Ean Code: 4006633205962
- Weight: 11.26kg
Specification of ATE 24.0113-0196.1 / 240113-01961 / 24011301961:
| OE Number | Reference info |
| CHRYSLER 0 4721 023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04721023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4721 023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04721023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4721 023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04721023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721 023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721 023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721 023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 98 | 133 | 1995 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 111 | 151 | 2429 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-02 - 2001-03 | 111 | 151 | 2429 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 112 | 152 | 2972 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 116 | 158 | 3301 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 122 | 166 | 3778 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 131 | 178 | 3778 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 85 | 116 | 2499 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-10 - 2001-03 | 85 | 116 | 2499 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 108 | 147 | 2429 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2003-04 - 2007-12 | 111 | 151 | 2429 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 128 | 174 | 3301 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 128 | 174 | 3301 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 160 | 218 | 3778 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 160 | 218 | 3778 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2005-08 - 2008-12 | 88 | 120 | 2499 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 105 | 141 | 2499 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2004-06 - 2008-12 | 110 | 150 | 2777 | MPV |

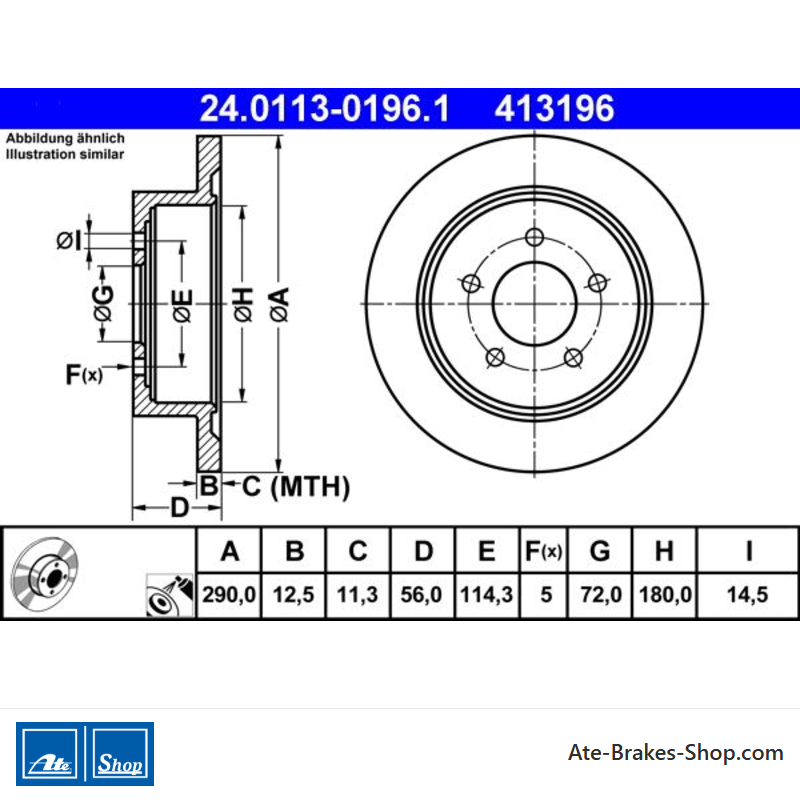

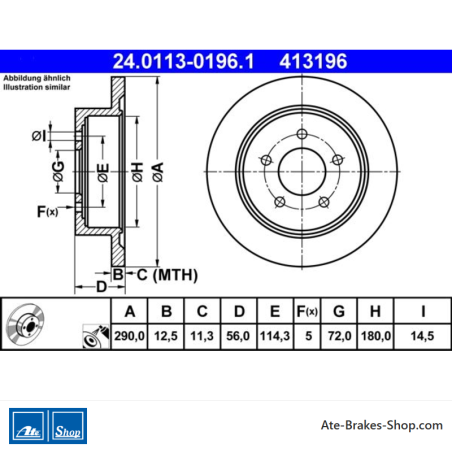

24.0113-0196.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Chrysler
- Trade Number
- 413196
- Country Of Origin
- Italy
- Height
- 56,0
- Outer Diameter [mm]
- 290,0
- Brake Disc Thickness [mm]
- 12,5
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 72,0
- Inner Diameter [mm]
- 180,0
- Bore Diameter [mm]
- 14,5
- Minimum Thickness [mm]
- 11,3
Specific References
- EAN13
- 4006633205962
- MPN
- 2401130196102
ATE 24.0113-0196.1
(240113-01961)
- Outer Diameter [mm]: 290,0
- Inner Diameter [mm]: 180,0
- Brake Disc Thickness [mm]: 12,5
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 413196
