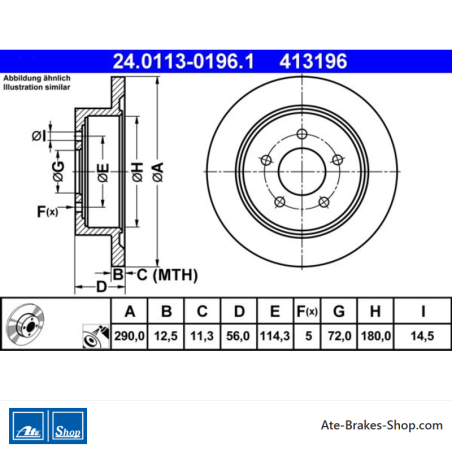

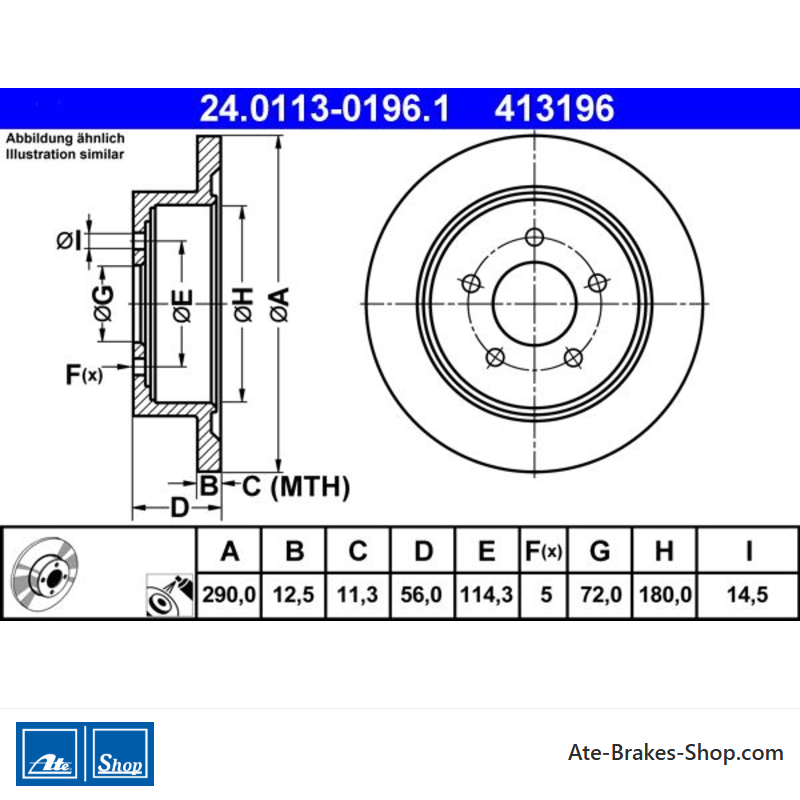

ATE Disque de frein original en 2 pièces (24011301961) pour Chrysler
105,27 €
TTC
87,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0113-0196.1
(240113-01961)
- Diamètre extérieur [mm] : 290,0
- Diamètre intérieur [mm] : 180,0
- Épaisseur du disque de frein [mm] : 12,5
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro d’échange : 413196
Informations logistiques :
- Code Ean : 4006633205962
- Poids : 11.26kg
Specification of ATE 24.0113-0196.1 / 240113-01961 / 24011301961:
| OE Number | Reference info |
| CHRYSLER 0 4721 023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04721023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4721 023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04721023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4721 023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04721023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721 023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721 023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721 023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 98 | 133 | 1995 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 111 | 151 | 2429 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-02 - 2001-03 | 111 | 151 | 2429 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 112 | 152 | 2972 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 116 | 158 | 3301 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 122 | 166 | 3778 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 131 | 178 | 3778 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 85 | 116 | 2499 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-10 - 2001-03 | 85 | 116 | 2499 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 108 | 147 | 2429 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2003-04 - 2007-12 | 111 | 151 | 2429 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 128 | 174 | 3301 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 128 | 174 | 3301 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 160 | 218 | 3778 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 160 | 218 | 3778 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2005-08 - 2008-12 | 88 | 120 | 2499 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 105 | 141 | 2499 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2004-06 - 2008-12 | 110 | 150 | 2777 | MPV |
24.0113-0196.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Chrysler
- Numéro de trade
- 413196
- Pays d’origine
- Italie
- Hauteur
- 56,0
- Diamètre extérieur [mm]
- 290,0
- Épaisseur du disque de frein [mm]
- 12,5
- Type à disque de frein
- solide
- Surface
- Enduit
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 114,3
- Diamètre de centrage [mm]
- 72,0
- Diamètre intérieur [mm]
- 180,0
- Diamètre du canon [mm]
- 14,5
- Épaisseur minimale [mm]
- 11,3
Références spécifiques
- EAN-13
- 4006633205962
- MPN
- 2401130196102
ATE 24.0113-0196.1
(240113-01961)
- Diamètre extérieur [mm] : 290,0
- Diamètre intérieur [mm] : 180,0
- Épaisseur du disque de frein [mm] : 12,5
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro d’échange : 413196
