ATE Originele 2-delige remschijf (24011301961) voor Chrysler
€ 105,27
(incl. btw)
€ 87,00 belastingexcl.
Onderdeelnummer:
ATE 24.0113-0196.1
(240113-01961)
- Buitendiameter [mm]: 290,0
- Binnendiameter [mm]: 180,0
- Remschijfdikte [mm]: 12,5
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 413196
Logistieke informatie:
- Ean Code: 4006633205962
- Gewicht: 11.26kg

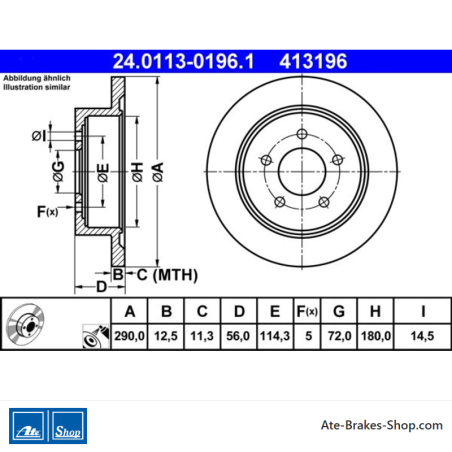

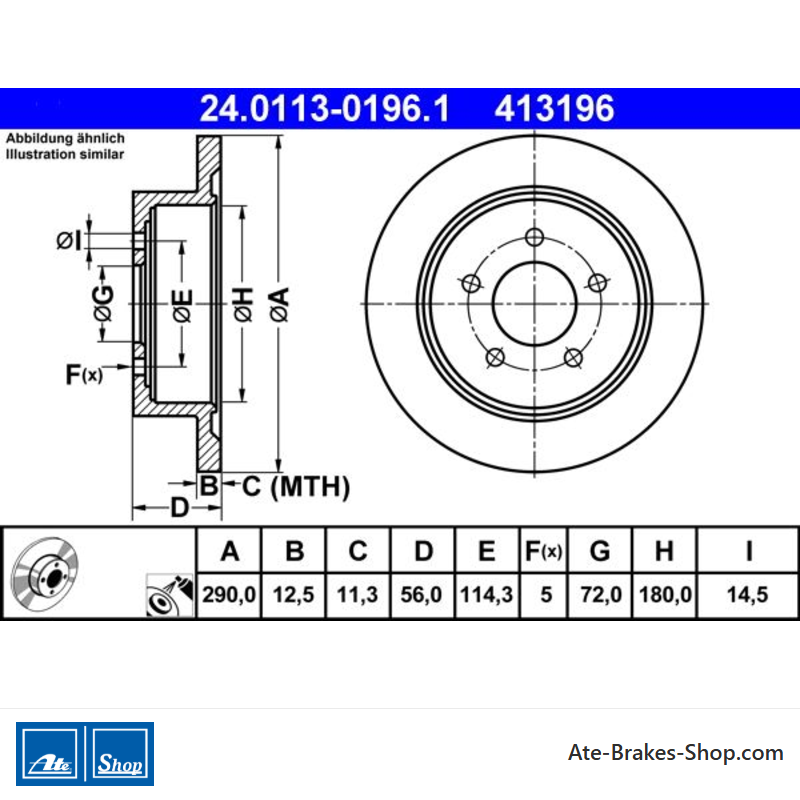

Specification of ATE 24.0113-0196.1 / 240113-01961 / 24011301961:
| OE Number | Reference info |
| CHRYSLER 0 4721 023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04721023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4721 023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04721023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4721 023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04721023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721 023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721023 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721 023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721023AF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721 023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721023AG | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 98 | 133 | 1995 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 111 | 151 | 2429 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-02 - 2001-03 | 111 | 151 | 2429 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 112 | 152 | 2972 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 116 | 158 | 3301 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 122 | 166 | 3778 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 131 | 178 | 3778 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 2001-03 | 85 | 116 | 2499 | MPV |
| CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-10 - 2001-03 | 85 | 116 | 2499 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 108 | 147 | 2429 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2003-04 - 2007-12 | 111 | 151 | 2429 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 128 | 174 | 3301 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 128 | 174 | 3301 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 160 | 218 | 3778 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 160 | 218 | 3778 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2005-08 - 2008-12 | 88 | 120 | 2499 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2000-02 - 2008-12 | 105 | 141 | 2499 | MPV |
| CHRYSLER VOYAGER IV (RG, RS) Fitting Position Rear Axle | 2004-06 - 2008-12 | 110 | 150 | 2777 | MPV |
24.0113-0196.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Chrysler
- Handelsnummer
- 413196
- Land van Herkomst
- Italië
- Hoogte
- 56,0
- Buitendiameter [mm]
- 290,0
- Remschijfdikte [mm]
- 12,5
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 72,0
- Binnendiameter [mm]
- 180,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 11,3
Specifieke referenties
- ean13
- 4006633205962
- MPN
- 2401130196102
ATE 24.0113-0196.1
(240113-01961)
- Buitendiameter [mm]: 290,0
- Binnendiameter [mm]: 180,0
- Remschijfdikte [mm]: 12,5
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 413196
